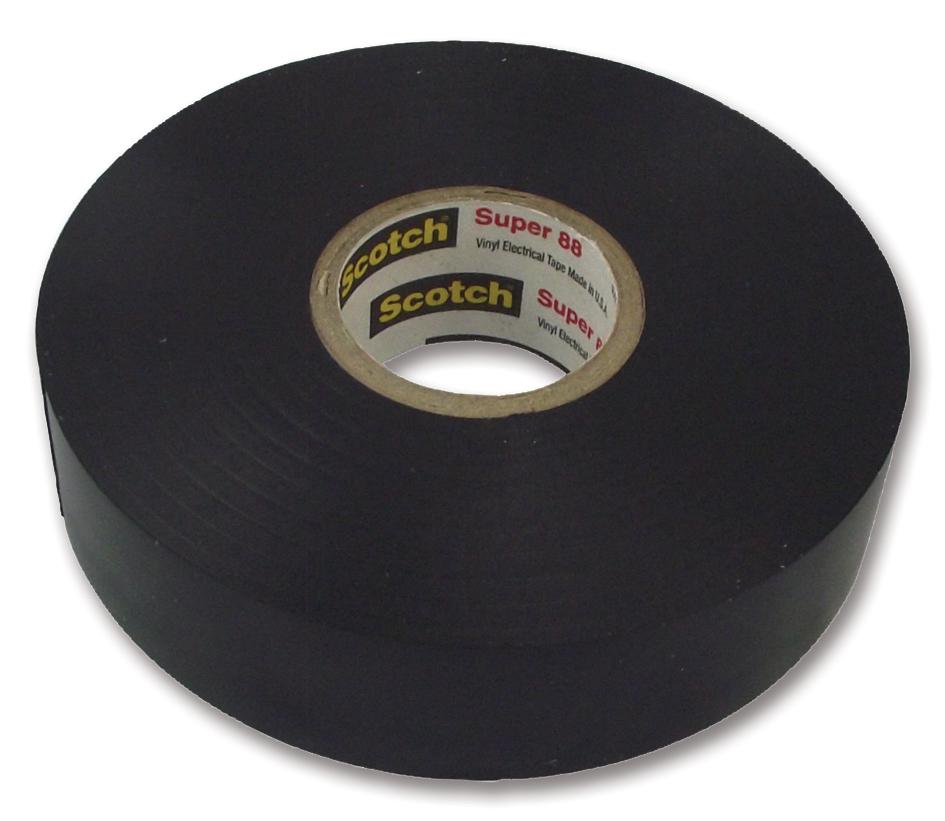

3M SUPER8825MM Electrical Insulation Tape
Scotch Vinyl Electrical Tape Super 88 is a durable, all-weather, 8.5-mil thick PVC tape designed for electrical insulation, bonding, and protection. It withstands ambient temperatures up to 105°C (220°F) and performs well in cold weather down to -18°C (0°F). This premium tape offers excellent resistance to abrasion, moisture, alkalies, acids, corrosion, and weather conditions. It contains a pressure-sensitive rubber-based adhesive, adheres securely to various surfaces, and is UL and CSA certified. Ideal for insulating wire splices up to 600 volts, high-voltage cable jacketing, and wire harnessing in indoor and outdoor environments, ensuring reliable electrical and mechanical protection with minimal bulk.
3M SUPER8825MM Electrical Insulation Tape Specifications:
- Color: Black
- Thickness: 8.5 mils (0.22 mm)
- Adhesion to Steel at 22°C: 28 oz/in (3.0 N/10 mm)
- Adhesion to Steel at -18°C: 60 oz/in (6.5 N/10 mm)
- Breaking Strength: 20 Ibs/in (35 N/10 mm)
- Ultimate Elongation: 250%
- Dielectric Breakdown: 10,000 volts
- Insulation Resistance: > 1x10 Megohms
- Flammability: UL 510 Pass
- Temperature Range: -18°C to 105°C (0°F to 220°F)
- Application Temperature: 0°F to 100°F (-18°C to 38°C)
- Application: Insulation for wire and cable splices, electrical wiring, and cable jacketing
- Material: Polyvinyl chloride (PVC) backing with rubber-based adhesive
- Certification: UL Listed, CSA Certified
Buy the 3M SUPER8825MM – Reliable Electrical Insulation Tape for Industrial Applications
Secure your wiring and cable connections efficiently with the high-quality 3M Super 88 electrical tape. This all-weather, 8.5-mil thick PVC tape provides excellent resistance to moisture, abrasion, chemicals, and weather. UL and CSA certified, it performs reliably in indoor and outdoor environments up to 105°C (220°F). Its conformable design makes it ideal for wire splicing, high-voltage cable jacketing, and harnessing, ensuring long-lasting electrical and mechanical protection. Purchase online today for dependable insulation solutions that meet professional standards.
Order your 3M Super 88 electrical tape today and ensure reliable, weather-resistant insulation for your electrical projects with durable, premium quality tape.
Frequently Asked Questions
Where can I buy 3M SUPER8825MM?
You can click on the BUY or RFQ button to purchase SUPER8825MM from an authorized 3M distributor.
How do I troubleshoot issues or seek technical support for part SUPER8825MM?
You can download the SUPER8825MM datasheet or visit the 3M website for support.
Who is the manufacturer of SUPER8825MM?
3M
