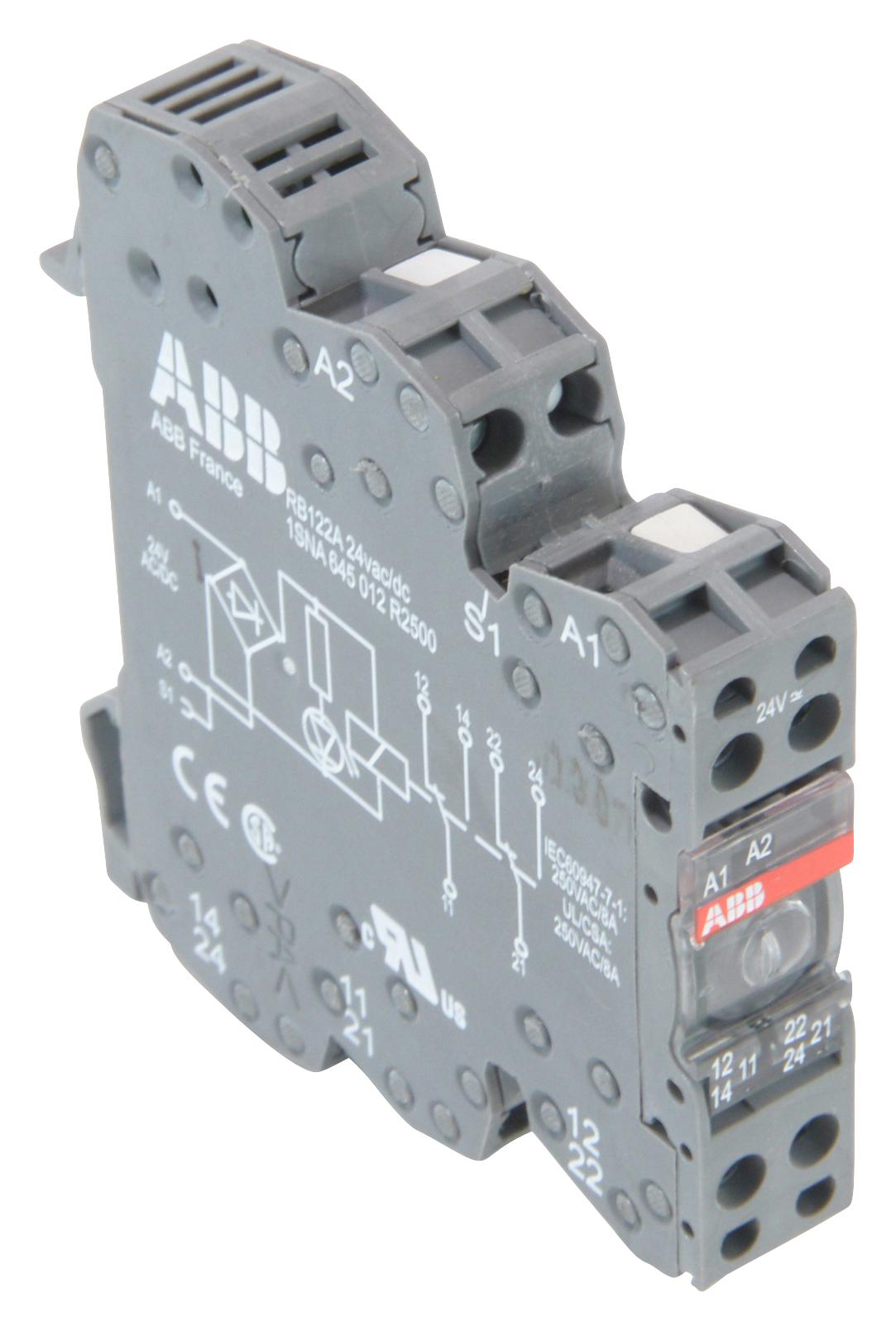

ABB 1SNA645012R2500 Interface Relay R600 2c/o
The ABB RB122G-24VUC interface relay, part of the R600 series, is designed for reliable control applications. It features a 24VAC/DC input voltage, providing flexibility in power supply options. The relay offers 1DPDT (Double Pole Double Throw) contacts capable of handling currents from 1mA to 8A, making it suitable for a wide range of industrial loads. A built-in LED provides visual indication of relay status. The screw terminals ensure secure and easy connections. This relay is commonly used in automation systems, process control, and other applications requiring precise and dependable switching.
ABB 1SNA645012R2500 Interface Relay R600 2c/o Specifications:
- Extended Product Type: RB122G-24VUC
- Product ID: 1SNA645012R2500
- EAN: 4013614507816
- Catalog Description: RB122G-24VUC Interface relay R600 2c/o,A1-A2=24VAC/DC,250V/1mA-8A
- Long Description: Screw relayRB122A 24vac/dc : 24vac-dc input / 1DPDT 1 mA upto 8A with led
- Sub-Function: Relay with built in LED
- Output: 2 c/o (SPDT) contacts
- Output Signal: 5 ... 250 V AC / DC / 1 mA ... 8 A
- Rated Control Supply Voltage: 24 V AC/DC
- Terminal Type: Screw Terminals
- Function: Boxed interface relayR600
- RoHS Status: FollowingEU Directive 2011/65/EC
- Minimum Order Quantity: 5 piece
- Customs Tariff Number: 85364900
- Product Net Height: 67.5 mm
- Product Net Depth: 70 mm
- Product Net Weight: 0.04 kg
- Product Net Width: 12 mm
- Package Level 1 Width: 73 mm
- Package Level 1 Height: 71 mm
- Package Level 1 Length: 80 mm
- Package Level 1 Gross Weight: 0.24 kg
- Package Level 1 EAN: 3472596450120
- Package Level 1 Units: 5piece
- ETIM 4: Switching relay
- ETIM 5: Switching relay
- ETIM 6: Switching relay
- eClass: 7.0 27371601
- UNSPSC: 39121500
- Object Classification Code: K
