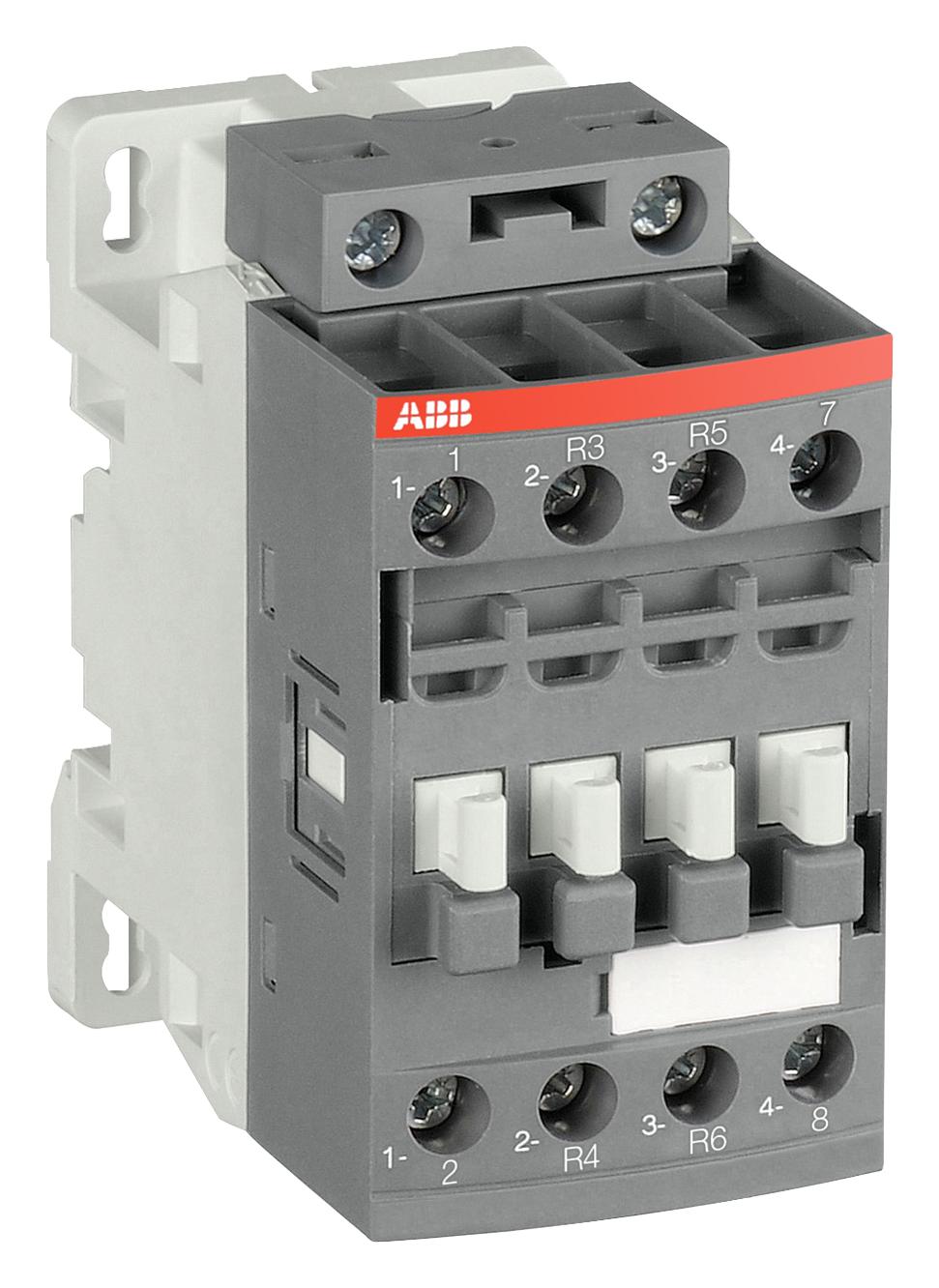

ABB AF16300111 Industrial Power Contactor
The AF16-30-01-11 is a three-pole block contactor suitable for controlling power circuits up to 690 V AC and 220 V DC. Featuring an electronic coil interface compatible with control voltages from 24 to 500 V, it includes surge protection and accommodates a wide range of auxiliary accessories. Designed for controlling three-phase motors and inductive loads, it ensures reliable switching with built-in protection and conforms to international standards such as IEC 60947-4-1 and UL 508. Its compact size and robust design make it ideal for industrial automation and control applications.
ABB AF16300111 Industrial Power Contactor Specifications:
- Number of Main Contacts NC: 0
- Number of Auxiliary Contacts NO: 0
- Rated Operational Voltage: 690 V AC / 220 V DC
- Number of Main Contacts: 3 poles
- Control Circuit Voltage: 24-500 V
- Rated Operational Current AC-1: 35A at 40°C
- Rated Operational Power AC-3: 9 kW at 690 V
- Rated Impulse Withstand Voltage: 6kV
- Maximum Breaking Capacity: 150 A at 690 V
- Rated Control Circuit Voltage Ud: 24-500 V
- Operate Time: 13-98 ms (de-energization), 40-95 ms (energization)
- Dimensions: Depth 77mm, Height 86mm, Width 45mm
- Weight: 0.270 kg
- Enclosure IP20, certified according to IEC standards
- Maximum Operating Altitude: 3000m
- Environmental resistance includes vibration and shock compliance
Buy the ABB Series AF16 Contactor: AF16300111
Purchase the ABB AF16300111 contactor online today to ensure reliable power switching for industrial applications. Designed for controlling motors and inductive loads up to 690 V AC, it features electronic coil control compatible with voltages from 24 to 500 V. Built-in surge protection and a compact, robust design make it suitable for harsh environments. Ideal for automation systems requiring high current capacity, continuous operation, and dependable performance. Order now to enhance your control systems with this versatile and durable contactor.
Get ABB AF16300111 today—built for reliable power control and long-lasting durability in industrial automation.
Frequently Asked Questions
Where can I buy ABB AF16300111?
You can click on the BUY or RFQ button to purchase AF16300111 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part AF16300111?
You can download the AF16300111 datasheet or visit the ABB website for support.
Who is the manufacturer of AF16300111?
ABB
