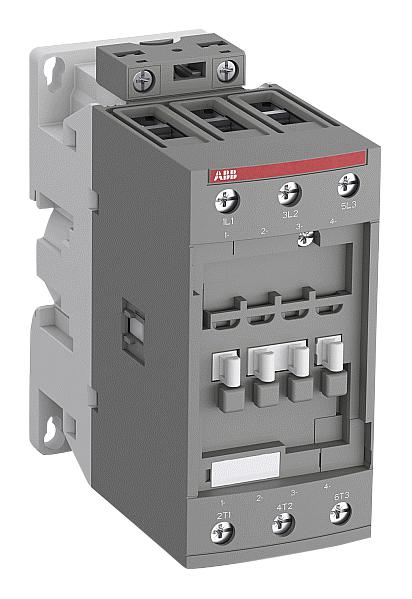

ABB AF40300013 industrial contactor
This ABB IEC-rated 3-pole contactor is designed for use with coils operating at 100-250V AC/DC, offering a current rating of 40 Amps. It is ideal for controlling power circuits up to 690 V AC and 220 V DC, mainly used to control 3-phase motors and other inductive loads. The contactor includes an electronic coil interface that accepts a wide control voltage range without coil changes. Its compact block design features auxiliary contacts, surge protection, and a robust build suitable for demanding industrial applications, ensuring reliable switching and operation.
ABB AF40300013 industrial contactor Specifications:
- Number of Poles: 3
- Rated Operational Voltage: 690 V AC, 220 V DC
- Rated Current: 40 A
- Coil Voltage Range: 100-250 V AC/DC
- Dimensions: Depth 111 mm, Height 125.5 mm, Width 55 mm
- Weight: 0.95 kg
- Mounting: Front and side auxiliary contact blocks
- Surge Protection: Built-in
- Control Circuit: AC or DC operated
- Rated Insulation Voltage: 690 V
- Maximum Breaking Capacity: 600 A
- Electrical Switching Frequency: 1200 cycles/hour
- Environmental: Operating up to 3000m altitude, IP10 rated terminals
- Climatic Resistance: -40°C to +80°C
- Certifications: UL, CSA, IEC, CE, DNV, GL, RINA, UL Listing
Buy the Buy ABB AF40-30-00-13 Part Number AF40-30-00-13 Online
Purchase the ABB AF40-30-00-13 contactor online today and enjoy reliable control for power circuits up to 690 V AC and 220 V DC. Designed for controlling 3-phase motors and inductive loads, it features a robust construction with built-in surge protection, wide control voltage acceptance, and compliance with international standards. Perfect for industrial automation, it offers easy installation, high switching capacity, and durable performance in demanding environments. Elevate your electrical control system with this high-quality contactor, available now for quick delivery.
Order your ABB AF40-30-00-13 series 3-pole contactor today and ensure reliable, high-performance control for your industrial motor and power circuits.
Frequently Asked Questions
Where can I buy ABB AF40300013?
You can click on the BUY or RFQ button to purchase AF40300013 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part AF40300013?
You can download the AF40300013 datasheet or visit the ABB website for support.
Who is the manufacturer of AF40300013?
ABB
