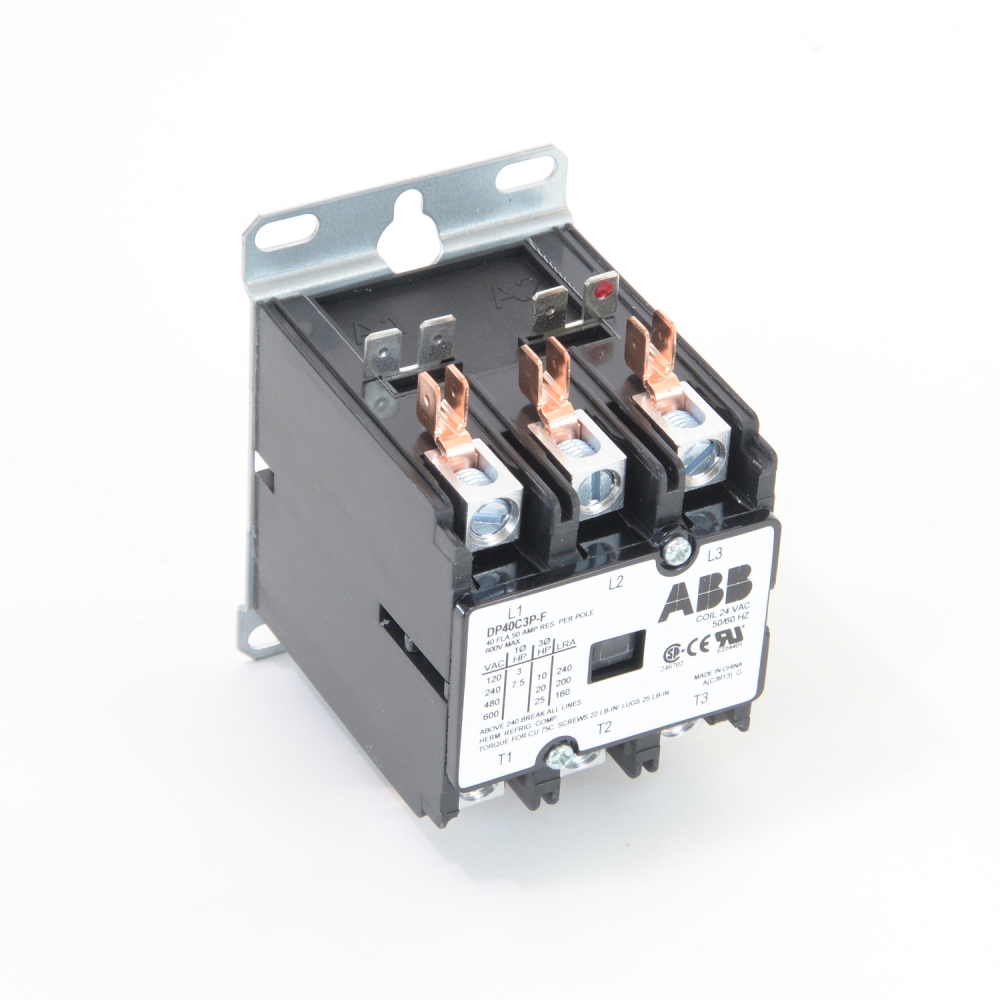

ABB DP40C3PF Definite Purpose Contactor
The ABB DP40C3P-F is a robust and versatile definite purpose contactor engineered for a wide range of industrial applications, including motors, power supplies, food service equipment, compressors, business machines, resistive heating, air conditioning, refrigeration equipment, and welding. It offers high performance with flexibility and reliability, featuring a double E magnet assembly for reduced power consumption and industry-standard mounting plates for easy accessibility. The contactor includes exclusive hex, slotted, and Phillips #10-32 terminal screws for main terminals and a coil with Class B (130° C) insulation system, providing a wide range of voltage and frequency ratings. Auxiliary switch options are available for enhanced functionality.
ABB DP40C3PF Definite Purpose Contactor Specifications:
- type: Definite purpose contactors
- available_as: 30A, 1, 2, 3 or 4 pole; 40A, 2, 3 or 4 pole; 60A, 3 pole
- applications: Motors, power supplies, food service equipment, compressors, business machines, resistive heating, air conditioning, refrigeration equipment, welding
- coil_terminals: #6-32 screws and .250 quick connect or dual .250 quick connect terminals
- main_terminals: Exclusive hex, slotted, phillips #10-32 terminal screws
- coil_insulation: Class B (130° C) Insulation system
- magnet_assembly: Double E Magnet Assembly
- auxiliary_switch_options: 1 SPDT or 2 SPDT contacts, 1 NO & 1 NC contact block
- base_assembly_material: High arc-resistant plastic
- ul_listing: UL 508 Guide No. NLDX2, File # E227250
- en_standard: EN60947-4-1:1991
- iec_standard: IEC 947-4-1
- locked_rotor_amps: See datasheet table
- maximum_hp: See datasheet table
- coil_voltage_options: 24VAC, 120VAC, 208/240VAC, 277VAC, 480VAC, 575VAC
Buy the DP40C3P-F ABB Definite Purpose Contactor | myMectronic
Purchase the ABB DP40C3P-F contactor securely and efficiently online.
