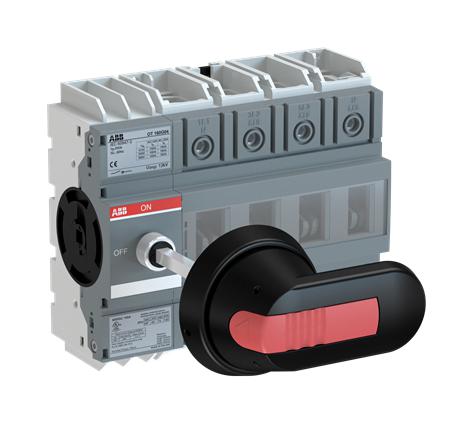

ABB OT160G04P High-Performance Manual Switch-Disconnector
ABB high-performance manual switch-disconnector designed for demanding power distribution and motor control applications. These modular, space-saving devices offer reliable operation in extreme conditions, with safety features including padlockable handles and interlocks. Suitable for installation in switchboards, control centers, and industrial environments, they are tested against IEC 60947-3, UL508, UL98, and CSA standards. Available with various mounting options, ratings up to 800A, and accessories for customization, ensuring durable, low-maintenance performance across multiple configurations.
ABB OT160G04P High-Performance Manual Switch-Disconnector Specifications:
- Rated insulation voltage: 1000V
- Rated operational voltage AC20/DC20: 1000V
- Dielectric strength: 10kV 50Hz 1 min
- Rated impulse withstand voltage: 12kV
- Rated thermal current (In open air): 200A
- Rated operational current AC20/DC20 (ambient 40°C): 160A
- Rated operational current AC20/DC20 (in enclosure): 160A
- Rated operational current AC21/AC22/AC23 (up to 690V): 160A (lower ratings for higher voltages)
- Rated operational power (AC-23): 75 kW at 400V, 110 kW at 690V
- Number of poles: 2, 3, or 4
- Max. fuse size: 200A to 800A depending on model
- Power loss per pole: approximately 19W to 55W depending on rating
- Mechanical endurance: 20,000 operation cycles
- Weight: ranges from approx. 1.6kg to 42.3kg depending on model
- Terminal bolt size: M8x25 mm to M12x60 mm
- Operating torque: 65 Nm to 80 Nm
- Standards: IEC 60947-3, UL 98, CSA C22.2 No. 4
Buy the ABB Series OT Series Manual Disconnector: OT160G04P
Purchase the ABB OT160G04P manual switch-disconnector online for demanding industrial and power applications. Its compact design, high ratings up to 800A, and safety features ensure reliable, maintenance-free operation. Suitable for switchboards, control centers, and heavy-duty environments, this device is tested against IEC and UL standards for durability and safety. Easy to install, customizable with accessories, and capable of handling various voltages, it offers optimal performance for your industrial needs. Order now for fast, secure delivery and operational assurance.
Get ABB OT160G04P today—built for reliable power distribution and motor control applications with high safety standards.
