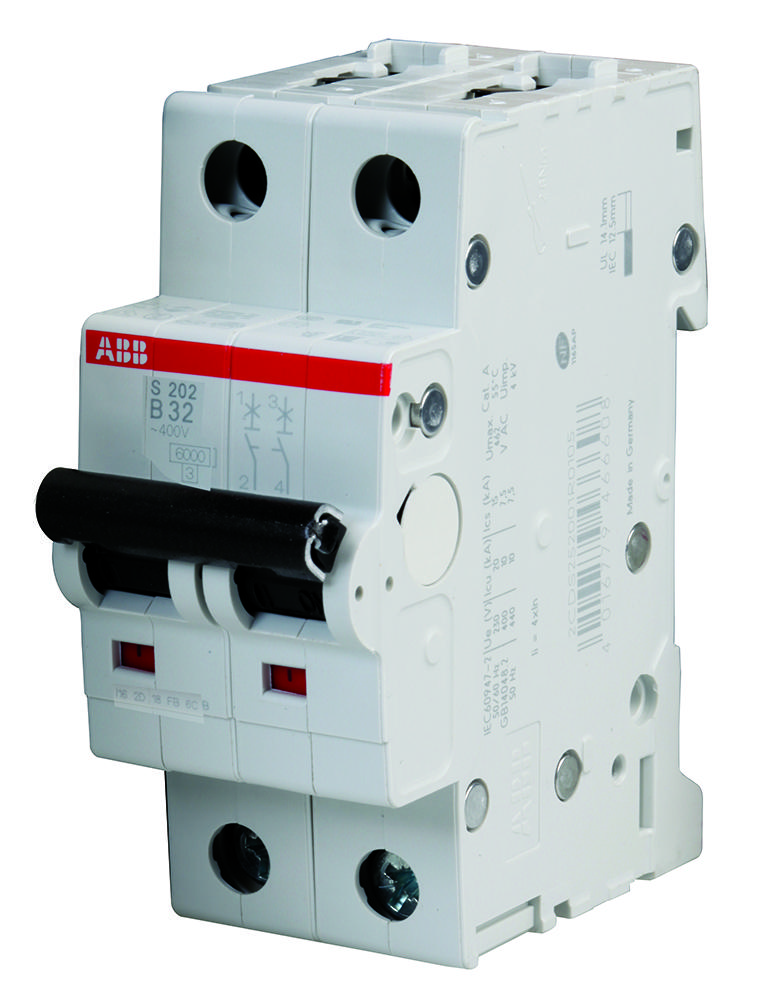

ABB S202B32 Miniature Circuit Breaker
The miniature circuit breaker S202B32 is a 2-pole B-curve device rated at 32A, designed for residential, commercial, and industrial applications. It provides current limiting protection with thermal and electromagnetic tripping mechanisms, offering up to 6 kA breaking capacity at 230/400 V AC. The compact device features screw terminals, IP40 protection, and can be mounted on DIN rails. It complies with IEC, UL, and CSA standards, ensuring reliable performance and easy integration into electrical systems.
ABB S202B32 Miniature Circuit Breaker Specifications:
- Number of Poles: 2
- Tripping Characteristic: B
- Rated Current: 32A
- Rated Operational Voltage: 400 V AC
- Rated Insulation Voltage: 440 V AC
- Rated Short-Circuit Capacity: 6 kA (UL/CSA), 20 kA (IEC)
- Rated Frequency: 50/60Hz
- Rated Impulse Withstand Voltage: 4 kV
- Housing Material: RAL 7035, Insulation group II
- Degree of Protection: IP40
- Connections: Screw terminals, flexible and rigid conductor capacity from 0.75 mm² to 35 mm²
- Tightening Torque: 2.8 Nm
- Mounting: DIN rail TH35-15 or TH35-7.5
- Operation Temperature Range: -25°C to +55°C
- Standards: IEC/EN 60898-1, IEC/EN 60947-2, UL 1077, CSA 22.2�235
- Certifications and Compliance: CE, RoHS compliant
- Dimensions: 69mm depth, 88mm height, 35mm width
- Weight: 0.25 kg
- Environmental Resistance: Shock 25g/2 shocks, Vibration IEC 60068-2-6
Buy the Schneider Series S200 Miniature Circuit Breaker: S202B32
Purchase your Schneider Series S200 S202B32 miniature circuit breaker online today for high-quality electrical protection. This 2-pole device features thermal and magnetic tripping mechanisms, ensuring safety against overloads and short circuits. It offers a rated current of 32A, a breaking capacity of up to 6 kA, and complies with IEC, UL, and CSA standards for versatile use in residential, commercial, and industrial applications. Easy to install on DIN rails, it guarantees dependable performance, safety, and compliance for your electrical installations.
Order your Schneider Series S200 S202B32 mini circuit breaker today and ensure reliable overload and short circuit protection for your electrical system.
Frequently Asked Questions
Where can I buy ABB S202B32?
You can click on the BUY or RFQ button to purchase S202B32 from an authorized ABB distributor.
How do I troubleshoot issues or seek technical support for part S202B32?
You can download the S202B32 datasheet or visit the ABB website for support.
Who is the manufacturer of S202B32?
ABB
