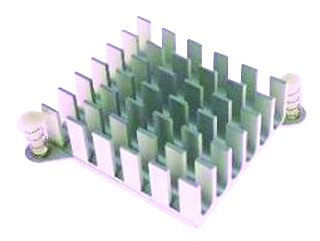

ABL-Aluminium-Components BGAPP025 Electronic Thermal Heatsink
BGA heatsinks with thermal pads designed for efficient heat dissipation in electronic components. All heatsinks are supplied with thermal tape featuring high thermal conductivity, excellent cushioning, and gap-filling properties, making them ideal for attaching to MPU, chip sets, and plastic-encapsulated components. The aluminium foil-backed thermal interface tape has a total thickness of 0.27mm, with a high-temperature acrylic adhesive on both sides, ensuring strong adhesion and thermal performance. Suitable for vertical heatsink attachment and metal enclosure surfaces, providing reliable thermal management in electronic assemblies.
ABL-Aluminium-Components BGAPP025 Electronic Thermal Heatsink Specifications:
- Backing Material: Aluminium foil
- Backing Thickness: 0.10 mm
- Adhesive Type: Acrylic
- Adhesive Thickness: 0.075 mm
- Total Thickness: 0.27 mm
- Adhesion: 15 Kg/25 mm
- Thermal Conductivity: 0.95 W/mK
- Thermal Resistance: 0.2 °C-inW
- Holding Power at 23°C: 272 Hours
- Holding Power at 130°C: >2 Hours
- Color: White
- Pad Sizes Available: BGA-PP-010, BGA-PP-015, BGA-PP-020, BGA-PP-030, BGA-PP-035, BGA-PP-040
- Pad Height: Varies (specified per model)
- Pad Length: Varies (specified per model)
- Pin Length: Included in each model, natural or black finish
Buy the ABL BGA-PP-015 – Reliable Thermal Interface for Electronic Components
Purchase ABL Series BGA-PP heatsinks online today to ensure optimal thermal management for your electronic devices. These heatsinks come with high-quality thermal pads featuring excellent thermal conductivity, strong adhesive properties, and reliable gap filling. Designed for easy attachment to MPU, chipsets, and plastic-encapsulated components, they provide efficient heat dissipation. The aluminium foil-backed adhesive tape is suitable for vertical heatsink and enclosure surface applications, offering durability and high performance in electronic assembly and cooling solutions.
Order your ABL Series BGA-PP-020 heatsink today and enhance your thermal management with high-performance thermal pads for electronic precision.
Frequently Asked Questions
Where can I buy ABL-Aluminium-Components BGAPP025?
You can click on the BUY or RFQ button to purchase BGAPP025 from an authorized ABL-Aluminium-Components distributor.
How do I troubleshoot issues or seek technical support for part BGAPP025?
You can download the BGAPP025 datasheet or visit the ABL-Aluminium-Components website for support.
Who is the manufacturer of BGAPP025?
ABL-Aluminium-Components
