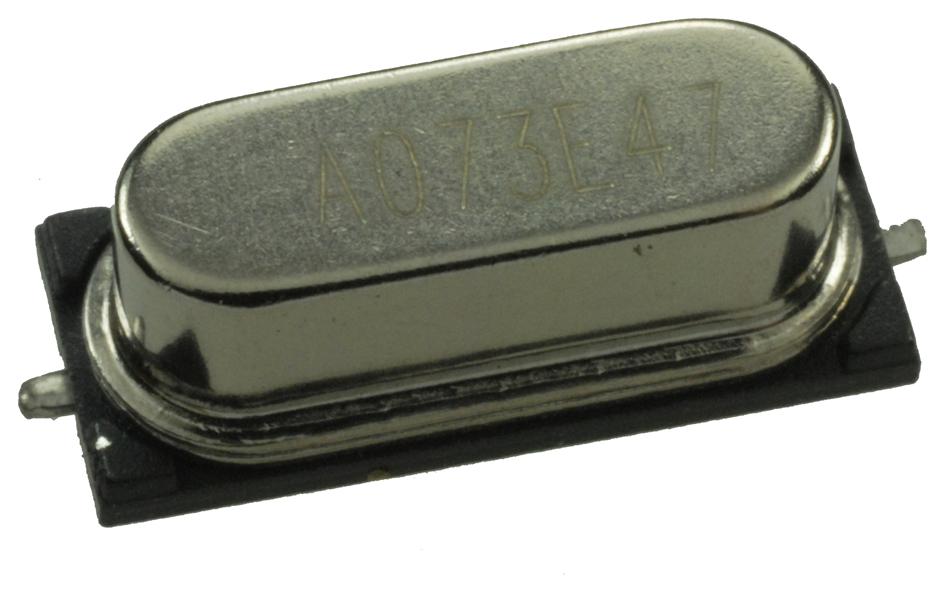

ABRACON ABLS20000MHZ16A4HT Low Profile Crystal
This component is used for clock and timing applications, providing precise frequency control in electronic circuits. It is a low-profile, SMD crystal with a frequency range from 3.579545 MHz to 75 MHz, suitable for computers, modems, wireless devices, and microprocessors. It features RoHS compliance, hermetically sealed design, and stability over extended temperature ranges. Its compact size of approximately 15 x 4.7 x 2.2 mm makes it ideal for tight spaces. The crystal offers high frequency stability, low ESR, and reliable performance in demanding electronic environments. Designed for surface-mount technology, it ensures durability and consistent oscillation.
ABRACON ABLS20000MHZ16A4HT Low Profile Crystal Specifications:
- Frequency Range: 3.579545 MHz to 75 MHz
- Operation Mode: AT cut (Fundamental or 3rd OT), BT cut (see options)
- Frequency Stability: ±50 ppm at +25°C (see options)
- Operating Temperature: -10°C to +70°C or -55°C to +125°C (depending on model)
- Load Capacitance: 18pF (see options)
- Drive Level: 1 mW max., 100 μW typical
- Insulation Resistance: 500 MΩ at 100Vdc + 15V
- Shunt Capacitance: Max 18pF
- Aging: ±5 ppm in first year at 25°C
- Dimensions: 15 mm x 4.7 mm x 2.2 mm, low-profile SMD design
- Reflow Soldering: Compatible with RoHS reflow process
- Applications: Precision timing for computing, modems, wireless devices
- Certifications: RoHS compliant, suitable for commercial applications
Buy the Buy Abracon Low Profile Crystal Part Number ABLS20000MHZ16A4HT Online
Purchase the Abracon Low Profile Crystal ABLS20000MHZ16A4HT online today. Designed for precise frequency control in clock and timing circuits, this compact SMD crystal ensures reliable performance across a wide temperature range. Its RoHS compliance and hermetically sealed construction make it suitable for sensitive applications including computers, modems, and wireless devices. With a size of 15x4.7x2.2 mm, it provides easy integration into space-constrained environments. Enjoy fast delivery, quality assurance, and technical support when you buy this high-precision crystal online for your electronic projects.
Get Abracon ABLS20000MHZ16A4HT today—built for precision and long-lasting durability in your electronic timing applications.
Frequently Asked Questions
Where can I buy ABRACON ABLS20000MHZ16A4HT?
You can click on the BUY or RFQ button to purchase ABLS20000MHZ16A4HT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABLS20000MHZ16A4HT?
You can download the ABLS20000MHZ16A4HT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABLS20000MHZ16A4HT?
ABRACON
