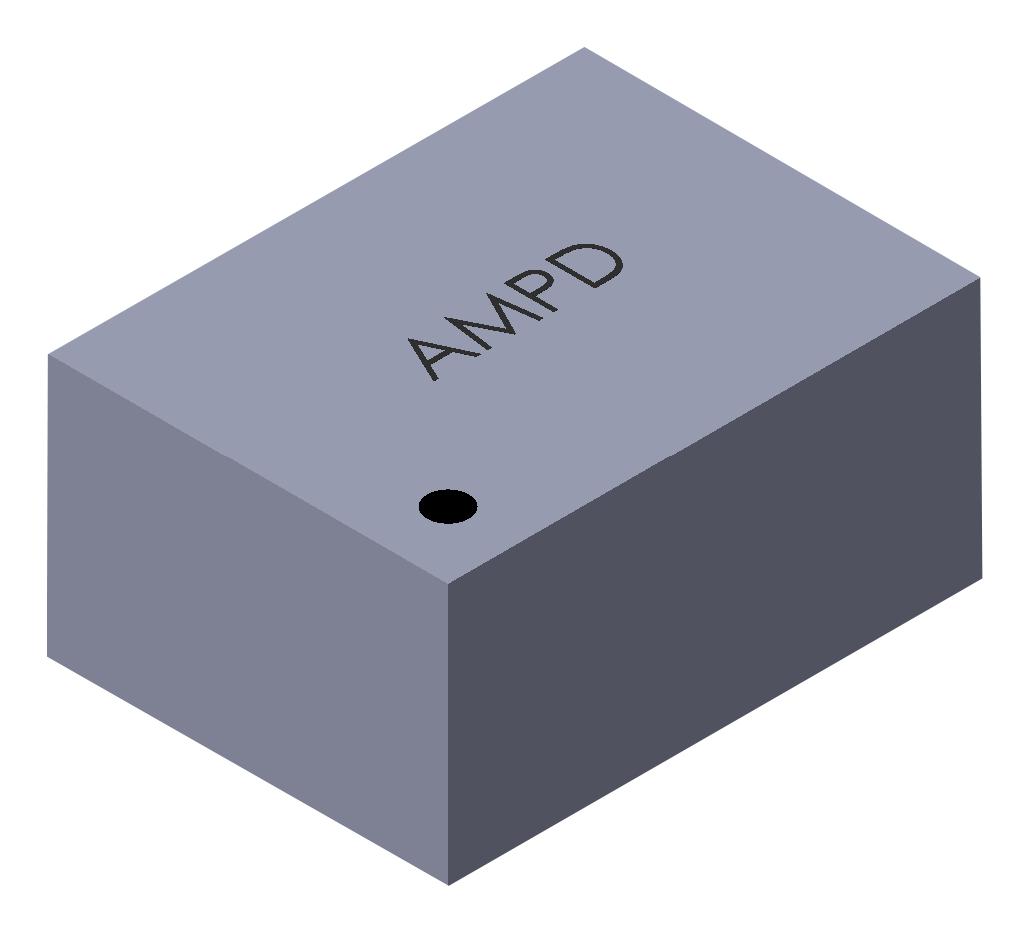

ABRACON AMPDGFIA01T MEMS Oscillator
The frequency selectable MEMS oscillators are ultra-compact devices measuring as small as 1.6x1.2 mm with low profile of 0.84 mm, designed for applications such as audio/video equipment, drones, robotics, wearables, and industrial IoT. They feature selectable output frequencies from 1 MHz to 80 MHz, low power consumption of 1.3 mA, wide operating temperature of -40°C to +85°C, and RoHS compliance. Available in multiple footprint options and with short lead times for custom frequencies, these oscillators are ideal for space-constrained, high-performance electronic systems.
ABRACON AMPDGFIA01T MEMS Oscillator Specifications:
- Dimensions: 1.6 x 1.2 x 0.84 mm, 2.0 x 1.6 x 0.84 mm, 2.5 x 2.0 x 0.84 mm, 3.2 x 2.5 x 0.85 mm
- Frequency Range: 1 MHz to 80 MHz
- Supply Voltage: 1.8V ±5% to 3.3V +10%
- Current Consumption: 1.3 mA (typ) at no load
- Operating Temperature: -40°C to +85°C
- Frequency Stability: ±50 ppm to ±5 ppm, depending on option
- RoHS/RoHS II Compliant
- MSL Level: MSL1
- Output Logic Levels: VOH/VOL = VDD/0.2V
- Rise/Fall Time: 1.2 to 2.0 ns
- Package Types: VFLGA, DFN, VLGA
- Drive Strength: Standard (>3mA), Low (~1mA)
- Reflow Profile: Preheat at 150°C-200°C, peak at 255°C-260°C
- Features include low phase jitter, short settling time (~40 hours), and custom frequency options.
Buy the Buy Abracon Frequency Selectable MEMS Oscillator Part Number AMPDGFIA01T Online
Order the Abracon MEMS Oscillator AMPDGFIA01T online now and experience the benefits of compact size, low power consumption, and wide frequency range. Perfect for IoT, wearables, industrial applications, and more, these oscillators offer reliable performance with customizable options. Designed for quick delivery and compliance with RoHS standards, they ensure your projects meet the highest quality standards. Purchase today to ensure your electronic device maintains precise timing with minimal power usage, enhanced stability, and space-saving features.
Get Abracon AMPDGFIA01T today—designed for precision and long-lasting durability in space-constrained systems.
Frequently Asked Questions
Where can I buy ABRACON AMPDGFIA01T?
You can click on the BUY or RFQ button to purchase AMPDGFIA01T from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPDGFIA01T?
You can download the AMPDGFIA01T datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPDGFIA01T?
ABRACON
