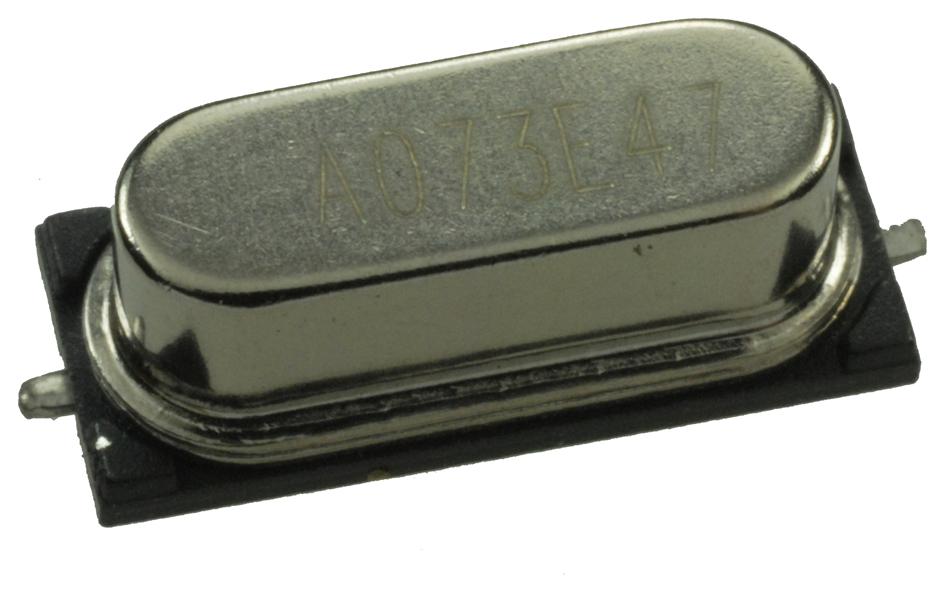

ABRACON ABLS221184MHZB2T Low Profile Crystal
This low-profile SMD crystal is ideal for clock and timing circuitry, offering precise frequency stability for modern electronic devices. Suitable for wireless, microprocessors, and computer applications, it supports RoHS compliance and reflow soldering. Operating within -10°C to +70°C, it features a frequency range from 3.579545 MHz to 75 MHz with ultra-low aging and stable oscillation characteristics. Its compact size and hermetically sealed design ensure durability and reliable performance in space-constrained and demanding environments, making it essential for high-precision timing solutions across various industrial and consumer electronics.
ABRACON ABLS221184MHZB2T Low Profile Crystal Specifications:
- Frequency Range: 3.579545 MHz to 75 MHz
- Operation Modes: AT cut (Fundamental or 3rd OT), BT cut (see options)
- Operating Temperature: -10°C to +70°C, optionally 55°C to 125°C
- Frequency Tolerance: ±50 ppm at +25°C
- Frequency Stability: ±50 ppm over temperature
- Equivalent Series Resistance: See Table 1
- Shunt Capacitance: 18pF max
- Drive Level: 1 mW max, typical 100 µW
- Aging (First Year): ±5 ppm
- Insulation Resistance: 500 MΩ at 100VDC
- Moisture Sensitivity: Not applicable, hermetically sealed
- Material: Ceramic package, RoHS compliant
- Dimensions: 15 x 4.7 x 2.0 mm
Buy the Buy Abracon Low Profile Crystal Part Number ABLS221184MHZB2T Online
Purchase the Abracon Series ABLS221184MHZB2T low profile crystal online today to enhance your electronic devices with high-precision timing. Its compact design, hermetically sealed package, and RoHS compliance ensure durability and reliable operation across various applications including microprocessors, wireless systems, and timing modules. This crystal supports reflow soldering, functions over a wide temperature range, and maintains excellent frequency stability with minimal aging, making it an essential component for engineers seeking high-performance clock solutions for industrial and consumer electronics.
Order your Abracon Series ABLS221184MHZB2T low profile crystal today and ensure accurate timing for your electronic projects with reliable and space-efficient performance.
