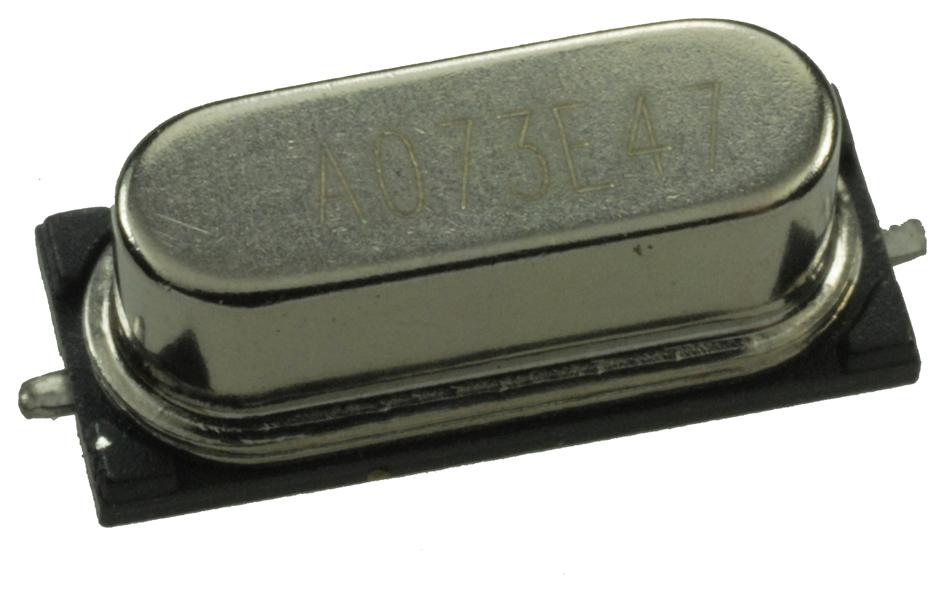

ABRACON ABLS25000MHZ16A4HFT Low Profile Crystal Oscillator
This component is a low-profile crystal oscillator designed for clock and timing applications in electronic circuits. It operates within a frequency range of 3.579545 MHz to 75 MHz, offering high stability and RoHS compliance for environmentally friendly manufacturing. Suitable for applications in computers, modems, microprocessors, as well as wireless devices, it features precise frequency tolerance of ±50 ppm at +25°C and excellent temperature stability from 0°C to +70°C. Compact and hermetically sealed, it ensures reliable performance in various temperature and operational conditions, making it ideal for modern electronic systems requiring accurate timing signals.
ABRACON ABLS25000MHZ16A4HFT Low Profile Crystal Oscillator Specifications:
- Frequency Range: 3.579545 MHz to 75 MHz
- Operation Mode: AT cut or BT cut
- Frequency Tolerance: ±50 ppm at +25°C
- Temperature Range: 0°C to +70°C (standard), -55°C to +125°C (extended)
- Drive Level: 1 mW max.
- Shunt Capacitance: 18 pF max.
- Equivalent Series Resistance: Refer to Table 1
- Insulation Resistance: 500 MΩ minimum at 100V DC
- Aging: ±5 ppm max. in the first year
- RoHS Compliant, hermetically sealed, suitable for RoHS reflow
- Dimensions: 15 x 4.7 x 2.0 mm, low profile design
- Reflow Profile: Standard peak temperature 260°C with duration 60-120 seconds
Buy the Buy Abracon Low Profile Crystal Part Number ABLS25000MHZ16A4HFT Online
Purchase the Abracon Low Profile Crystal Oscillator today for reliable frequency management in your electronic projects. Designed with precision, this component offers a frequency range up to 75 MHz, ensuring accurate clock signals for computers, modems, and wireless applications. Its compact, hermetically sealed design provides excellent stability over a wide temperature range from 0°C to +70°C, and it is RoHS compliant for environmentally conscious manufacturing. Easy to install and compatible with standard reflow soldering processes, it guarantees consistent, high-performance operation in demanding electronic systems.
Get Abracon ABLS25000MHZ16A4HFT today—built for precision and long-lasting durability in timing circuits.
Frequently Asked Questions
Where can I buy ABRACON ABLS25000MHZ16A4HFT?
You can click on the BUY or RFQ button to purchase ABLS25000MHZ16A4HFT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABLS25000MHZ16A4HFT?
You can download the ABLS25000MHZ16A4HFT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABLS25000MHZ16A4HFT?
ABRACON
