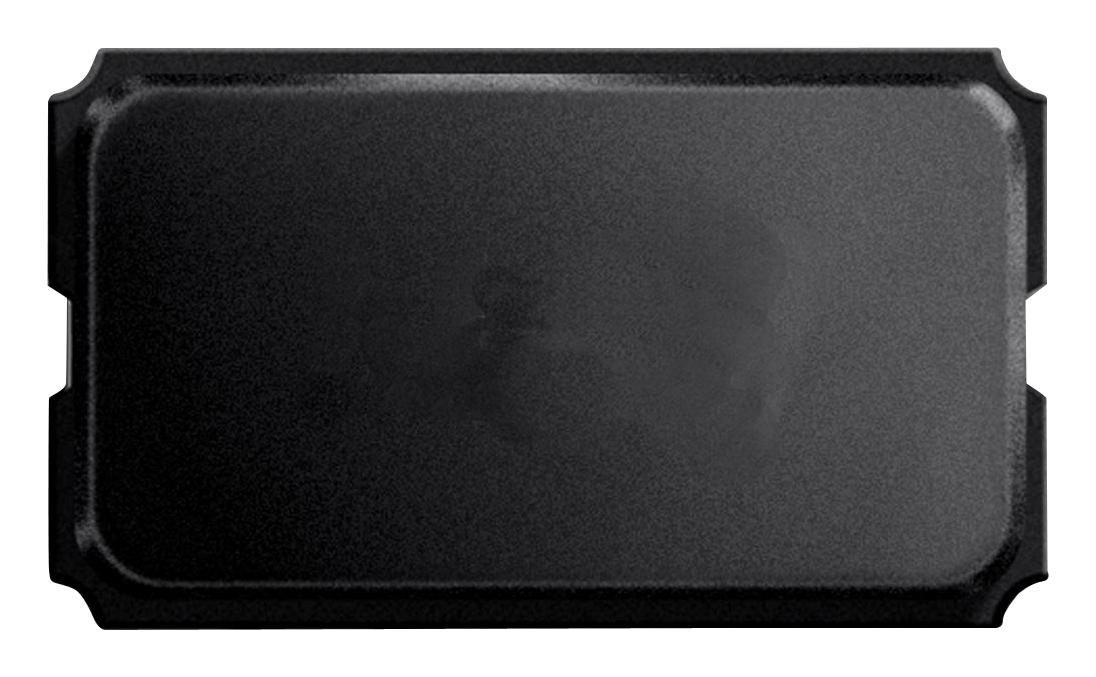

ABRACON ABM225000MHZD4YT Ceramic SMD Microprocessor Crystal
The ABRACON ABM2-25.000MHZ-D4Y-T is a compact and reliable ceramic SMD microprocessor crystal ideal for a wide range of applications including modems, communication equipment, test equipment, and wireless devices. Its glass-sealed package ensures high reliability and high-temperature operation, while its tight tolerance and stability provide consistent performance. The crystal is designed for easy integration into thin equipment and high-density designs and is RoHS compliant for environmentally conscious applications. ABRACON’s crystals are known for their quality and performance, making them a trusted choice for demanding electronic designs.
ABRACON ABM225000MHZD4YT Ceramic SMD Microprocessor Crystal Specifications:
- Frequency Range: 8.000 - 100.000 MHz
- Operating Temperature: -10 to +60 ºC
- Storage Temperature: -40 to +85 ºC
- Frequency Tolerance: -50 to +50 ppm
- Frequency Stability: -50 to +50 ppm
- Equivalent Series Resistance: 100 - 70 Ω (depending on frequency)
- Shunt Capacitance (C0): 7 pF
- Load Capacitance (CL): 18 pF
- Drive Level: 10 - 100 µW
- Aging: ±5 ppm (first year)
- Insulation Resistance: 500 MΩ
- Moisture Sensitivity Level (MSL): N/A
- Package Type: Ceramic SMD
- Dimensions: 8.0 x 4.5 x 1.4 mm
Buy the ABM2-25.000MHZ-D4Y-T ABRACON Ceramic SMD Microprocessor Crystal | myMectronic
Purchase the ABRACON ABM2-25.000MHZ-D4Y-T securely and efficiently to meet your project needs.
Buy Now
Frequently Asked Questions
Where can I buy ABRACON ABM225000MHZD4YT?
You can click on the BUY or RFQ button to purchase ABM225000MHZD4YT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM225000MHZD4YT?
You can download the ABM225000MHZD4YT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM225000MHZD4YT?
ABRACON
