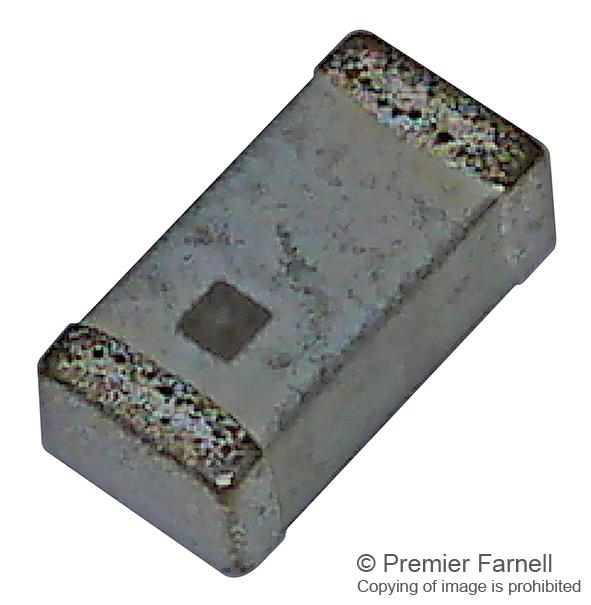

ABRACON AMCA311012R450GS1FT3 Wireless Chip Antenna
This compact WLAN, WiFi, and Bluetooth chip antenna is designed for IoT devices, wireless modules, and industrial automation applications. Measuring only 3.2x1.6x1.2mm, it offers a bandwidth greater than 90MHz at 2450MHz with a peak gain of 0.5dBi and an average gain of -1dBi. It features a VSWR below 2:1, is matched to 50 Ohms, and can handle up to 3W power. RoHS compliant, it is suitable for reflow soldering and provides reliable wireless performance in small form-factor designs.
ABRACON AMCA311012R450GS1FT3 Wireless Chip Antenna Specifications:
- Dimensions: 3.2 x 1.6 x 1.2mm
- Frequency: 2450MHz
- Bandwidth: >90MHz
- Peak Gain: 0.5dBi
- Average Gain: -1dBi
- VSWR: <2:1
- Impedance: 50 Ohm
- Power Handling: Up to 3W
- Operating Temperature: -40°C to +85°C
- RoHS Compliant
- Reflow Solderable
- Material: Ceramic element
- Matching components: Capacitors and inductors in series/shunt configurations
- Connector: Chip with feed line
Buy the Abracon Series Antenna: WLAN/WIFI/BLUETOOTH Compact Chip Antenna: AMCA31-101-2R450G-S1F-T3
Order the Abracon wireless chip antenna online today to ensure reliable wireless connectivity for your IoT, industrial automation, and Bluetooth applications. This small, RoHS-compliant antenna measures just 3.2x1.6x1.2mm, featuring a bandwidth over 90MHz at 2450MHz and a peak gain of 0.5dBi. It is matched to 50 Ohms, supports up to 3W power handling, and is suitable for reflow soldering, making it perfect for space-constrained wireless projects requiring high performance and durability.
Buy Abracon AMCA31-101-2R450G-S1F-T3 now and experience unmatched reliability and performance in your IoT wireless design projects.
Frequently Asked Questions
Where can I buy ABRACON AMCA311012R450GS1FT3?
You can click on the BUY or RFQ button to purchase AMCA311012R450GS1FT3 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMCA311012R450GS1FT3?
You can download the AMCA311012R450GS1FT3 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMCA311012R450GS1FT3?
ABRACON
