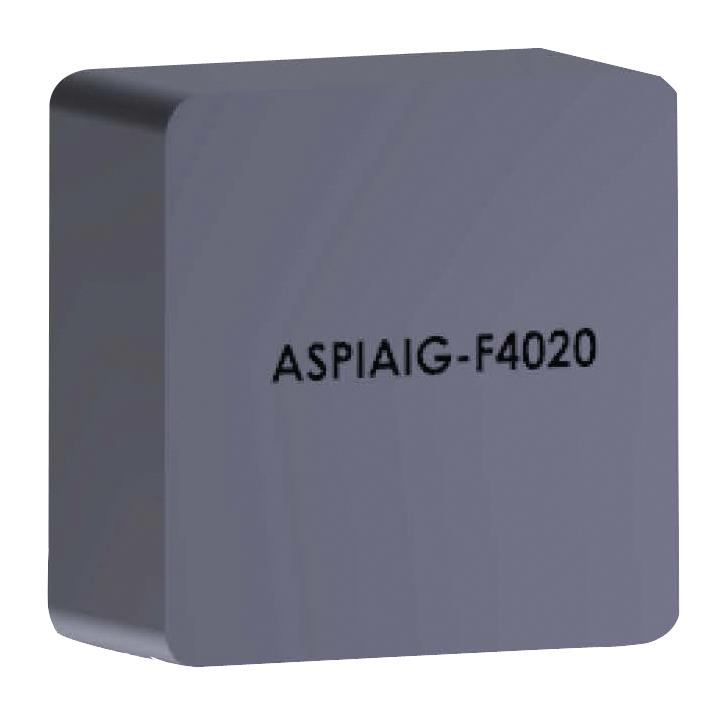

ABRACON ASPIAIGF70305R6MT Power Inductor
The product is a high-current shielded SMD power inductor designed for demanding power conversion applications. It features a compact, low-profile form factor with varying dimensions to suit different power management needs. Supporting up to 36A of current and having a low DCR of only 1.75 mΩ, it is ideal for DC/DC converters, FPGA power supplies, VRMs, and high-current POL modules. The series complies with RoHS 2, and features soft saturation, excellent current handling, and EMI reduction thanks to shielded construction, making it suitable for automotive, server, solar, and industrial applications.
ABRACON ASPIAIGF70305R6MT Power Inductor Specifications:
- Dimensions vary according to model
- Support current up to 36A
- DCR: 1.75 mΩ
- RoHS/RoHS II compliant
- Operating temperature: -40°C to 125°C
- Storage temperature: -10°C to +40°C
- MSL=1
- Shielded construction for EMI reduction
- Soft saturation characteristic
- Low profile design for compact applications
- Series options include different inductance values with tolerance options
- Suitable for automotive, FPGA, server VRM, and solar inverter applications
Buy the ABRACON Series Power Inductor: ASPIAIG F Series High Current Support
Order the ABRACON power inductor online today to ensure your power management systems operate with maximum efficiency and reliability. Our series is engineered for high current, low DCR, and premium EMI reduction, making it ideal for demanding applications like DC/DC converters, FPGA, server VRMs, and solar power systems. With RoHS compliance and various inductance options, you get a versatile, durable product that supports your design needs. Purchase now and guarantee your project’s success with superior power performance and easy online convenience.
Buy ABRACON ASPIAIG F Series power inductor now and experience unmatched reliability and high current handling for advanced power supply designs.
Frequently Asked Questions
Where can I buy ABRACON ASPIAIGF70305R6MT?
You can click on the BUY or RFQ button to purchase ASPIAIGF70305R6MT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ASPIAIGF70305R6MT?
You can download the ASPIAIGF70305R6MT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ASPIAIGF70305R6MT?
ABRACON
