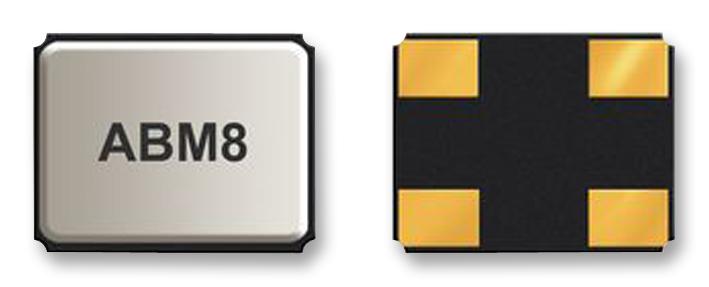

ABRACON ABM816000MHZ101UT Ceramic SMD Crystal
The ultra miniature ceramic SMD crystal offers high reliability with hermetic sealing and moisture resistance, suitable for space-constrained, high-density applications. It operates within a frequency range of 10.000 to 125.000 MHz, including fundamental and third overtone modes, and features tight frequency tolerance and stability over various temperature ranges. The compact 3.2x2.5x0.8mm package ensures ease of placement in thin equipment, making it ideal for communication, modems, and test equipment where high performance and reflow compatibility are critical.
ABRACON ABM816000MHZ101UT Ceramic SMD Crystal Specifications:
- Dimensions: 3.2x2.5x0.8 mm
- Frequency Range: 10.000 to 125.000 MHz
- Operation Modes: Fundamental and 3rd Overtone
- Temperature Range: -10°C to +60°C (standard), -55°C to +125°C (storage)
- Frequency Tolerance: ±50 ppm @ 25°C
- Frequency Stability: ±50 ppm over operating temperature
- Shunt Capacitance: 7.0 pF
- Load Capacitance: 18.0 pF
- Equivalent Series Resistance: varies by frequency
- Aging: 3 ppm first year
- Insulation Resistance: 500 MΩ @ 100V
- RoHS Compliant, hermetically sealed, moisture-sensitive MSL
Buy the Ultra Miniature Ceramic Series SMD Crystal: ABM816000MHZ101UT
Enhance your electronic designs with the compact ceramic SMD crystal that guarantees high reliability and stability. Designed for high-density applications, it features hermetic sealing and moisture resistance, ensuring durability in various environments. Operating from 10 to 125 MHz with tight tolerances, this crystal is suitable for modems, communication devices, and test equipment. Its small size of 3.2x2.5x0.8mm makes it perfect for space-constrained, high-performance applications, offering exceptional frequency stability and RoHS compliance for modern manufacturing needs.
Buy Abracon Ultra Miniature Ceramic Series SMD Crystal ABM816000MHZ101UT now and experience unmatched reliability and high-frequency stability for your compact device applications.
Frequently Asked Questions
Where can I buy ABRACON ABM816000MHZ101UT?
You can click on the BUY or RFQ button to purchase ABM816000MHZ101UT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM816000MHZ101UT?
You can download the ABM816000MHZ101UT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM816000MHZ101UT?
ABRACON
