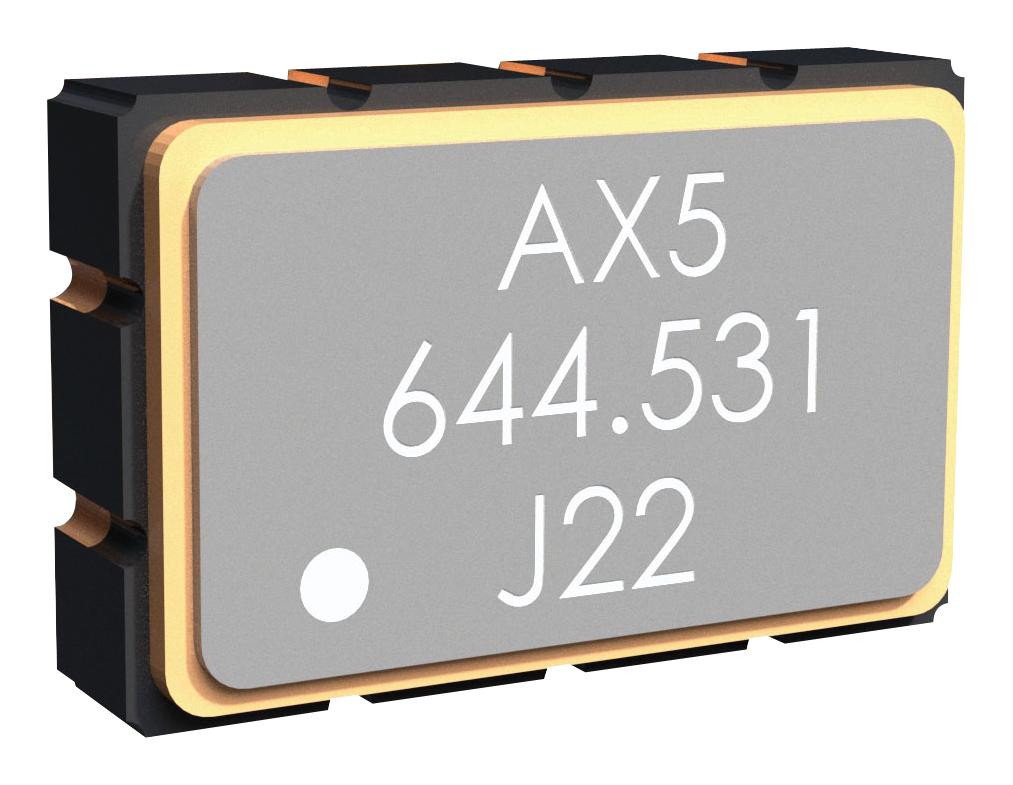

ABRACON AX5PBF118000000C Crystal Oscillator
The product is a high-precision, ultra-low jitter crystal oscillator featuring minimal phase jitter of 125 fs RMS at 12kHz-20MHz BW, optimized for networking, optical Ethernet, and RF systems. Available with various frequencies up to 2100MHz, it offers excellent stability over -40°C to +85°C and low power consumption. The device supports multiple differential output formats including LVPECL, LVDS, HCSL, and CML, and is housed in a 5.0 x 3.2 mm RoHS-compliant package suitable for industrial applications, with configurable options for frequency, supply voltage, and output enable options.
ABRACON AX5PBF118000000C Crystal Oscillator Specifications:
- Package size: 5.0 x 3.2 mm, height 1.4 mm
- RoHS/RoHS II compliant
- MSL level 1, rated for industrial environments
- Frequency range: 50MHz to 2100MHz, configurable via factory options
- Supply Voltage options: 2.25V to 3.3V, supporting LVPECL, LVDS, HCSL, CML outputs
- Frequency stability: ±420 ppm over -40°C to +85°C, lifespan stability of ±15 ppm over 20 years
- RMS phase jitter: typically 125 fs (12kHz-20MHz BW), with specific values at carrier frequencies like 156.25 MHz and 644.53125 MHz
- Differential output formats: LVPECL, LVDS, HCSL, CML with output voltage levels of approximately 0.9V high and 0.66V low for LVDS
- Power consumption: approximately 60mA at 3.3V or lower depending on output type
- Operating temperature range: -40°C to +85°C, storage temperature up to +150°C
- Built-in phase noise and jitter specifications suitable for high-speed data and communication systems
- Available in tape and reel packaging for automated SMT assembly
Buy the Abracon AX5PBF118000000C – Reliable Crystal Oscillator for Industrial Applications
Purchase the Abracon AX5PBF118000000C online today to ensure high accuracy, ultra-low jitter performance, and reliable operation for demanding networking, RF, and data center applications. With factory programmable options, stable over a broad temperature range, and support for multiple differential outputs, this high-quality oscillator guarantees precise timing in your critical systems. Its RoHS compliance and industry-standard size make it easy to integrate into your designs, providing long-term durability and performance. Order now to meet your high-speed and precision requirements effortlessly.
Get Abracon AX5PBF118000000C today—built for precision and long-lasting durability in industrial, networking, and RF systems.
