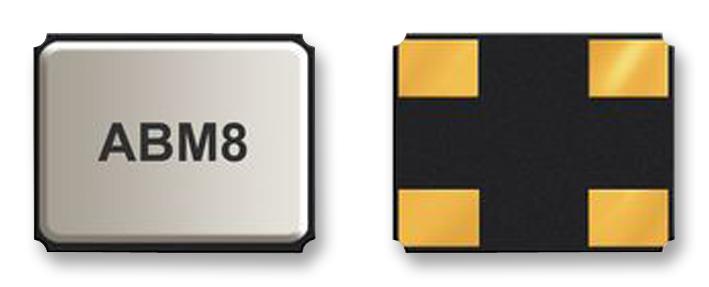

ABRACON ABM825000MHZD1XT Ceramic SMD Crystal
This ultra miniature ceramic SMD crystal measures 3.2x2.5x0.8mm, designed for high-density and space-constrained applications. Hermetically sealed for reliability, it features low height (max 0.8mm) suitable for thin equipment. Operating from -10°C to +60°C, with frequency options from 10MHz to 125MHz, including fundamental and third overtone modes. It offers tight frequency tolerance, stability, and low ESR, making it ideal for communication, modems, and test equipment in RoHS-compliant systems. Suitable for reflow soldering with moisture sensitivity considerations, it ensures high performance in demanding environments.
ABRACON ABM825000MHZD1XT Ceramic SMD Crystal Specifications:
- Dimensions: 3.2x2.5x0.8mm
- Frequency Range: 10.000 to 125.000 MHz
- Operation Mode: Fundamental, 3rd Overtone
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -55°C to +125°C
- Frequency Tolerance: ±50 ppm @ 25°C
- Frequency Stability: ±50 ppm over temperature
- Equivalent Series Resistance: See table 1 for standard ESR ranges
- Shunt Capacitance (CO): 7.0 pF
- Load Capacitance (CL): 18.0 pF
- Drive Level: 10 to 100 μW
- Aging: 3 ppm first year
- Insulation Resistance: 500 MΩ @ 100Vdc + 15V
- RoHS Compliant, Hermetically sealed, Moisture sensitive (MSL)
Buy the Abracon Series ABM825000MHZ Ceramic SMD Crystal: ABM825000MHZD1XT
Purchase the Abracon ceramic SMD crystal ABM825000MHZ today. This compact, hermetically sealed device offers high stability, low ESR, and precise frequency control. Perfect for communication, modem, and test equipment in space-constrained environments, it ensures long-lasting durability and reliable performance. Compatible with reflow soldering, RoHS compliant, and suitable for demanding industrial applications, this crystal guarantees optimal operation across a wide temperature range. Secure your supply now for cutting-edge electronic and communication projects.
Get Abracon ABM825000MHZ ceramic SMD crystal today—designed for precision, reliability, and space-saving in high-density applications.
Frequently Asked Questions
Where can I buy ABRACON ABM825000MHZD1XT?
You can click on the BUY or RFQ button to purchase ABM825000MHZD1XT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM825000MHZD1XT?
You can download the ABM825000MHZD1XT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM825000MHZD1XT?
ABRACON
