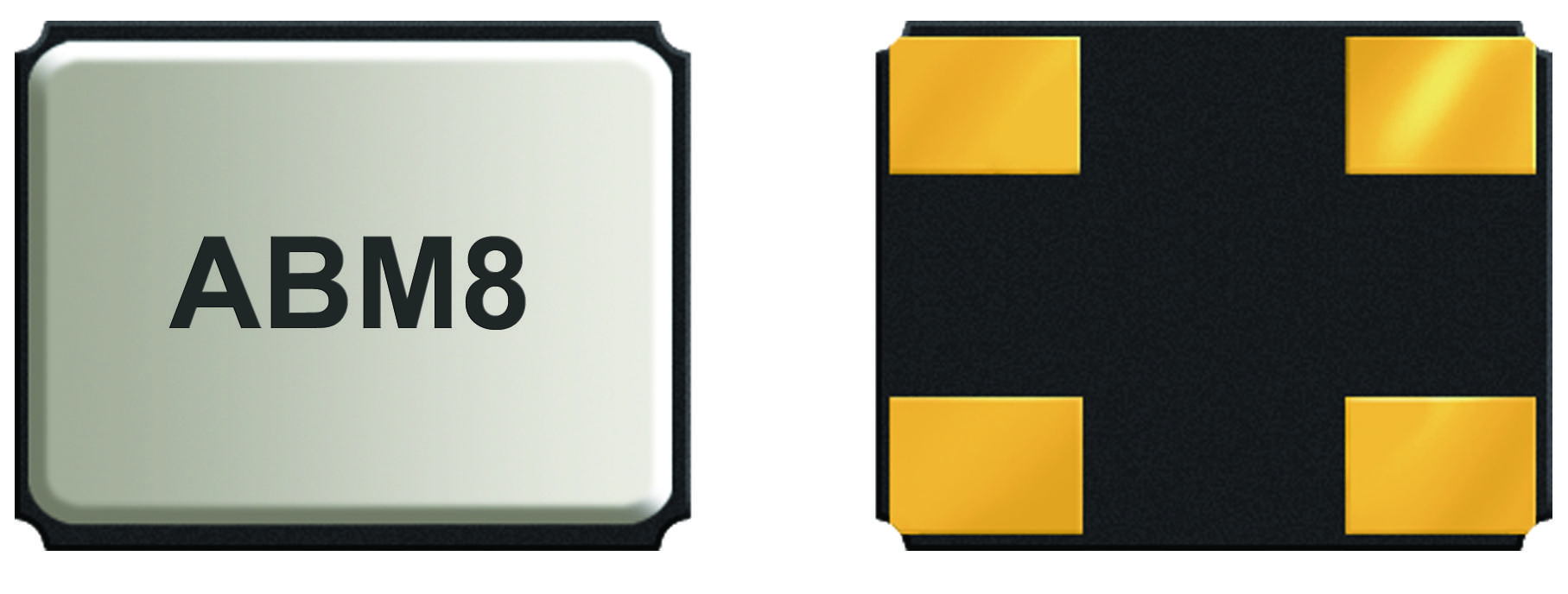

ABRACON ABM8G27000MHZ18D2YT Ultra Miniature Crystal
This ultra miniature ceramic glass sealed crystal is designed for clock and timing applications, offering high stability, hermetic sealing, and low profile suitability for thin devices. Operating at a frequency range from 12.000 MHz to 50.000 MHz, with tight tolerance and temperature stability, it is ideal for modems, communication, and test equipment. Its glass sealed package ensures high reliability and temperature resilience, suitable for high-density and wireless applications. Compliant with RoHS II standards, it combines accuracy, durability, and compactness for critical timing solutions.
ABRACON ABM8G27000MHZ18D2YT Ultra Miniature Crystal Specifications:
- Frequency Range: 12.000 MHz to 50.000 MHz
- Operation Mode: Fundamental
- Operating Temperature: -10°C to +60°C (options available for tighter stability)
- Storage Temperature: -20°C to +70°C
- Frequency Tolerance: ±10 ppm (typical)
- Frequency Stability: ±30 ppm over temperature
- Equivalent Series Resistance: Varies with frequency, typically low
- Load Capacitance: 7 pF (minimum) adjustable as per application
- Drive Level: 0.1 mW max.
- Insulation Resistance: >100 MΩ at 100 VDC
- Dimensions: 3.2x2.5x1.0 mm
- Material: Glass sealed ceramic package
- RoHS Compliant: Yes
- Reflow Capable: Yes
- Application: High density, wireless, modems, communication testing
Buy the Buy Abracon Ultra Miniature Ceramic Crystal Part Number ABM8G27000MHZ18D2YT Online
Purchase the Abracon Ultra Miniature Crystal ABM8G27000MHZ18D2YT online today for reliable, high-performance frequency control in your electronic designs. This compact ceramic crystal offers precise frequency stability, hermetic glass sealing, and RoHS compliance, making it suitable for demanding clock and timing applications. Its small size and low power drive make it ideal for space-constrained devices, wireless modules, and high-density electronic systems. Experience dependable performance and easy ordering through our online store for all your high-quality timing component needs.
Order your Abracon Ultra Miniature Ceramic Crystal ABM8G27000MHZ18D2YT today and ensure high stability for precise clock and timing applications in your projects.
Frequently Asked Questions
Where can I buy ABRACON ABM8G27000MHZ18D2YT?
You can click on the BUY or RFQ button to purchase ABM8G27000MHZ18D2YT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM8G27000MHZ18D2YT?
You can download the ABM8G27000MHZ18D2YT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM8G27000MHZ18D2YT?
ABRACON
