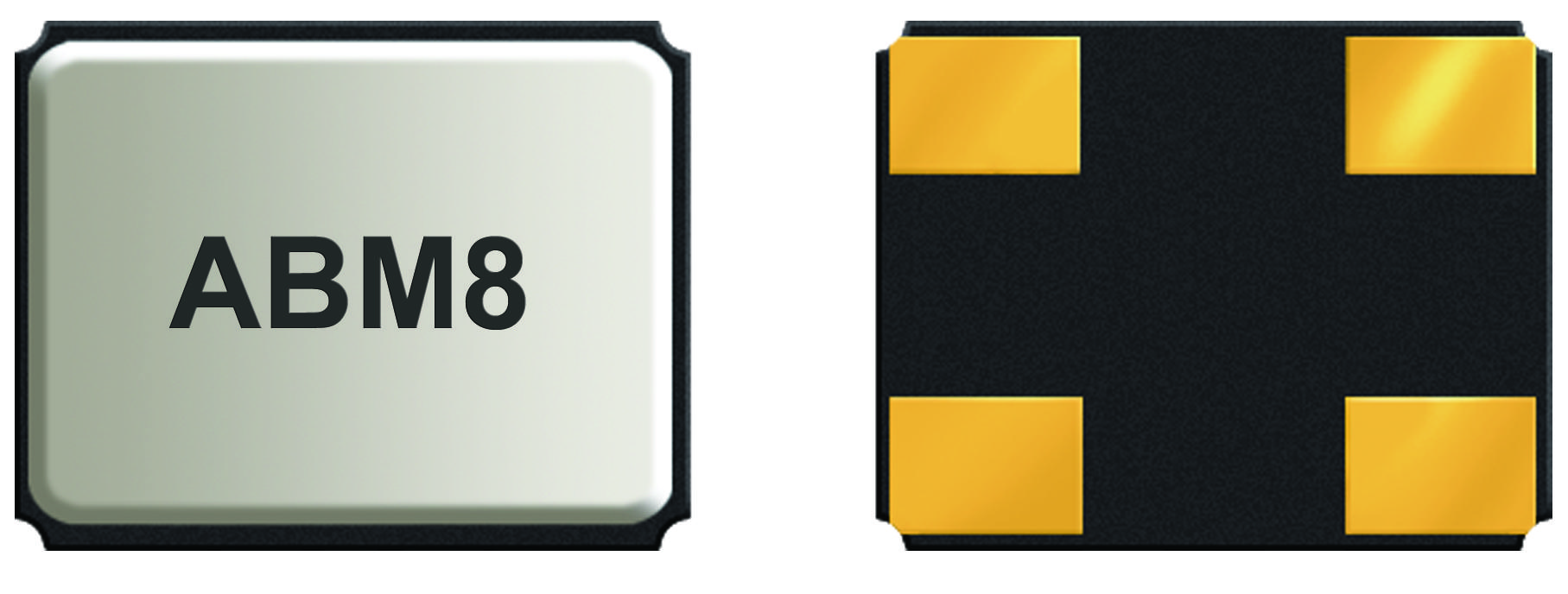

ABRACON ABM830000MHZD1XT Miniature SMD Crystal
This ultra-miniature ceramic SMD crystal is hermetically sealed, RoHS compliant, and ideal for compact, high-density electronic applications. Its small size of 3.2x2.5x0.8mm makes it suitable for thin equipment and precise timing functions. Designed for fundamental and third overtone modes, it provides stability over a wide temperature range from -10°C to +60°C. Features include low ESR, tight frequency tolerance, and stability, making it suitable for modems, communication, and test equipment. Its sealed package ensures high reliability in demanding environments, supporting modern electronics with high accuracy timing needs.
ABRACON ABM830000MHZD1XT Miniature SMD Crystal Specifications:
- Size: 3.2x2.5x0.8mm
- Frequency Range: 10.000 to 125.000 MHz
- Operation Mode: Fundamental and 3rd Overtone
- Fundamental Frequency: 10MHz - 54MHz
- Third Overtone Frequency: 64MHz - 125MHz
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -55°C to +125°C
- Frequency Tolerance: ±50 ppm @+25°C
- Frequency Stability: ±50 ppm over temperature
- Equivalent Series Resistance: varies with frequency
- Shunt Capacitance: 7.0 pF
- Load Capacitance: 18.0 pF
- Drive Level: 10 to 100 μW
- Aging: ±3 ppm per year
- Insulation Resistance: 500 MΩ @ 100Vdc
- RoHS Compliant, Hermetically Sealed, Suitable for RoHS reflow
- Compliance: RoHS, Not Moisture Sensitive
- Dimensions: 3.2mm x 2.5mm x 0.8mm
- Suitable for high-density electronics, communication, and timing applications
Buy the Abracon ABM830000MHZD1XT – Reliable Crystal for Industrial Applications
Discover the reliability and precision of the compact SMD crystal designed for modern electronic circuits. Perfect for high-density and space-constrained applications in communication, modems, and test equipment. Its hermetically sealed package ensures high reliability in demanding environments. This crystal offers tight frequency tolerance, stability over temperature, and RoHS compliance, making it ideal for a wide range of industrial and electronic devices requiring precise timing and synchronization. Buy online now to enhance your electronic system performance with this high-quality crystal component.
Get Abracon ABM830000MHZD1XT today—built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy ABRACON ABM830000MHZD1XT?
You can click on the BUY or RFQ button to purchase ABM830000MHZD1XT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM830000MHZD1XT?
You can download the ABM830000MHZD1XT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM830000MHZD1XT?
ABRACON
