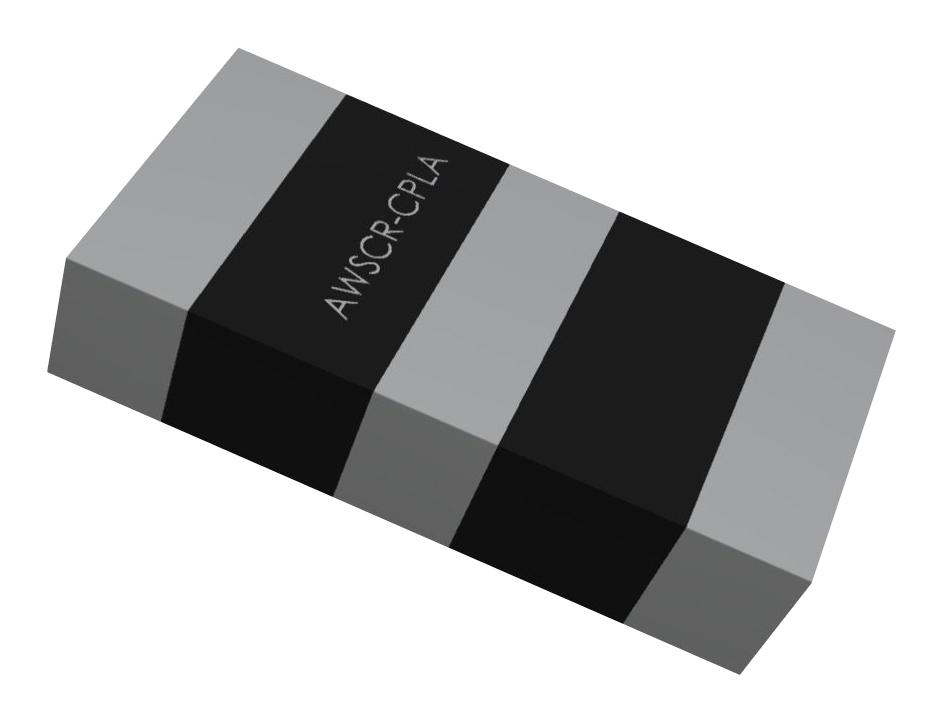

ABRACON AWSCR419CPLAC30T4 Ceramic Resonator
The miniature ceramic resonator AWSCR-CPLA offers a compact size of 6.0 x 3.0 x 1.8 mm, RoHS compliance, and operates within a frequency range of 1.84 MHz to 12.00 MHz. Designed for industrial and electronic applications, it features low resonance impedance, built-in capacitance options, and wide operating temperatures from -40°C to 85°C. Suitable for metering systems, remote control, microprocessors, and industrial control, it is RoHS compliant, non-moisture sensitive, with a maximum storage temperature of +85°C, and withstands voltages up to 10V AC. Its robust construction ensures long-term stability, making it ideal for precise timing and frequency reference needs in diverse electronic devices.
ABRACON AWSCR419CPLAC30T4 Ceramic Resonator Specifications:
- Dimensions: 6.0 x 3.0 x 1.8 mm
- Frequency Range: 1.84 MHz – 12.00 MHz
- Frequency Tolerance: ±1pF + 20%
- Resonant Impedance (Ro): 100 Ω at lower band, 50 Ω at upper band
- Built-in Capacitance Options: 10/15/22/30/33/39/47 pF
- Temperature Range: -40°C to +85°C
- Voltage Rating: 10V AC, 5s max
- Insulation Resistance: >10 MΩ at 100V DC
- Storage Temperature: +85°C
- Moisture Sensitivity: MSL 1
- RoHS/RoHS I Compliant
- Pb in ceramic, exemption (7e-I)
- Not moisture sensitive, RoHS compliant
- Reel Packaging: 4000 pieces/reel
- Reflow Profile: Peak temp 260°C within 10s
- Low resonance impedance, built-in capacitance, wide temp tolerance
- Suitable for precise timing, frequency reference, industrial and electronic controls
Buy the Buy Abracon AWSCR-CPLA Ceramic Resonator Part Number AWSCR419CPLAC30T4 Online
Purchase the Abracon AWSCR-CPLA ceramic resonator online and enhance your electronic designs with its compact size, wide frequency range, and reliable performance. This high-quality component offers low resonance impedance and built-in capacitance, suitable for precision timing, microprocessors, and industrial control systems. Its RoHS compliance and moisture resistance ensure durability in various environments. Order now and benefit from fast online delivery, competitive pricing, and proven stability for your manufacturing or repair needs.
Order your Abracon AWSCR-CPLA ceramic resonator today and give your electronic projects the dependable frequency solution they deserve.
Frequently Asked Questions
Where can I buy ABRACON AWSCR419CPLAC30T4?
You can click on the BUY or RFQ button to purchase AWSCR419CPLAC30T4 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AWSCR419CPLAC30T4?
You can download the AWSCR419CPLAC30T4 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AWSCR419CPLAC30T4?
ABRACON
