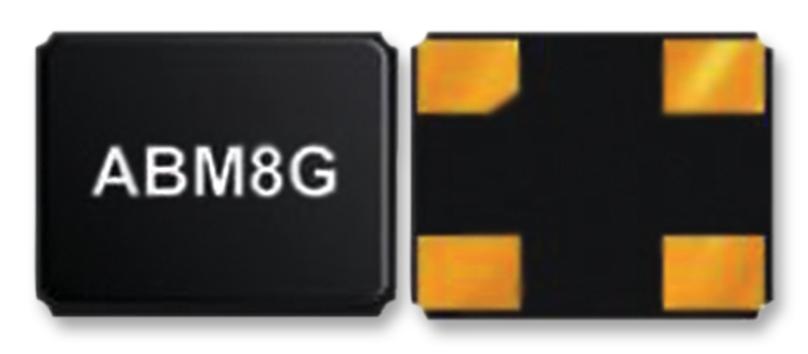

ABRACON ABM8G20000MHZB4YT Ceramic Crystal Oscillator
The ultra miniaturized ceramic glass sealed SMD crystal oscillator offers high reliability and stability in a compact 3.2x2.5x1.0mm package. Suitable for high-density, low-profile applications such as modems, communication devices, and wireless equipment, it features RoHS compliance and Pb in glass exemption. Operating temperature ranges from -55°C to +125°C, with low ESR, tight frequency stability, and excellent reflow capability. Designed for demanding industrial applications, it delivers consistent performance, making it ideal for space-constrained, high-performance electronic systems requiring precise timing and long-term stability.
ABRACON ABM8G20000MHZB4YT Ceramic Crystal Oscillator Specifications:
- Dimensions: 3.2x2.5x1.0mm
- Frequency Range: 12.000MHz - 50.000MHz
- RoHS Compliant, Pb glass exemption 7 (c)-I
- Reflow capable with a standard profile: 10s at +260°C, 45°C preheat, 60-120s reflow time
- Temperature Range: -55°C to +125°C
- Frequency Stability at +25°C: ±3ppm max.
- Load Capacitance: 10pF (see options for other values)
- Series Resistance (ESR): varies with frequency (see table)
- Storage Temperature: -55°C to +125°C
- Insulation Resistance: 500 MΩ at 100 Vdc
- Drive Level: Max. 100nW
- Sealed Glass Package ensures high reliability and temperature tolerance
- Reflow Profile: Follow specified heating and cooling times for optimal soldering
- Land Pattern: 0.055 in (1.40mm) x 0.067 in (1.70mm), recommended for soldering
- Reliability: Suitable for demanding industrial and communication applications with long-term stability
Buy the Abrawcon ABM8G – Reliable Crystal Oscillator for Industrial Applications
Enhance your electronic designs with the ceramic crystal oscillator, offering high stability, RoHS compliance, and compact size for space-constrained industrial and communication equipment. Easy to reflow, it ensures reliable operation across wide temperature ranges, supporting demanding applications like modems, test equipment, and wireless devices. Order the ABM8G series online today to benefit from quick delivery and technical support, and elevate your projects' performance with this dependable, high-quality timing component.
Buy Abrawcon ABM8G now and experience unmatched reliability and performance in your high-precision electronic projects.
Frequently Asked Questions
Where can I buy ABRACON ABM8G20000MHZB4YT?
You can click on the BUY or RFQ button to purchase ABM8G20000MHZB4YT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM8G20000MHZB4YT?
You can download the ABM8G20000MHZB4YT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM8G20000MHZB4YT?
ABRACON
