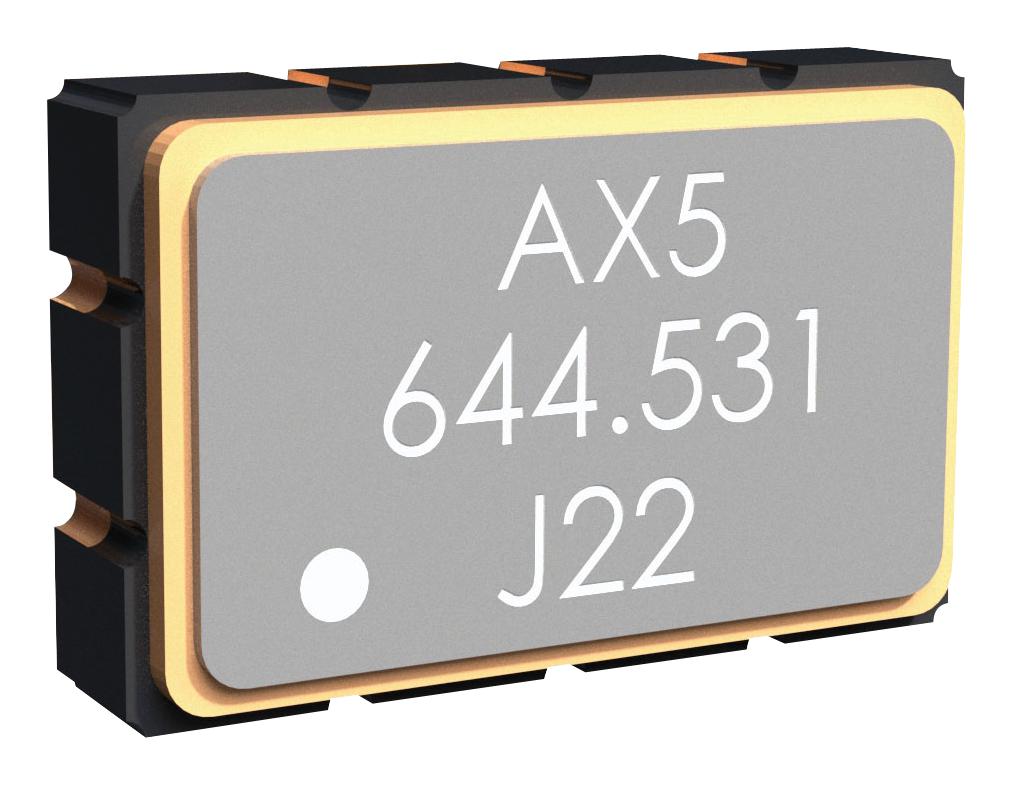

ABRACON AX5DAF16220800C Crystal Oscillator
The ClearClock ultra-low jitter crystal oscillator delivers exceptional performance with RMS phase jitter as low as 132 femtoseconds at 156.25 MHz, making it ideal for networking, high-speed data, and RF applications. Built in a compact 5.0 x 3.2 mm package, it features RoHS compliance, power efficiency, and stability over wide temperature ranges. Factory programmable frequencies from 50MHz to 2100MHz, with various differential output options including LVPECL, LVDS, HCSL, and CML, ensure broad compatibility and precision timing for demanding applications.
ABRACON AX5DAF16220800C Crystal Oscillator Specifications:
- Package Dimensions: 5.0 x 3.2 mm, height 1.4 mm
- RoHS/RoHS II Compliant
- MSL= 1
- Frequency Range: 50 MHz to 2100 MHz
- Frequency Accuracy: ±10 ppm at +25°C, total stability ranges from ±40 to ±45 ppm over -40°C to +85°C
- RMS Phase Jitter: 132 fs at 156.25 MHz, measured with Keysight BS052B analyzer
- Power Supply Voltages: 3.3V, 2.5V, 1.8V options
- Supply Current: up to 80 mA depending on output type and frequency
- Differential Output Formats: LVPECL, LVDS, HCSL, CML
- Temperature Range: -40°C to +85°C (stability options depending on variant)
- ESD Sensitivity: ESD Sensitive, RoHS/RoHS II Compliant
- Sealed with RoHS compliant processes
- Factory programmable with short lead times (1-2 weeks)
- Application areas include networking, data centers, RF systems, and test & measurement
Buy the Abracon Series ClearClock Crystal Oscillator: AX5DAF16220800C
Order the Abracon AX5DAF16220800C crystal oscillator online today and experience exceptional timing stability with ultra-low jitter, ideal for networking, RF, and data transfer applications. Its compact 5.0 x 3.2 mm package includes factory programmable frequencies from 50MHz to 2100MHz, offering broad compatibility with various differential outputs such as LVPECL, LVDS, HCSL, and CML. Designed for high performance, low power consumption, and reliable operation over wide temperature ranges, this oscillator ensures precision and durability for demanding industrial and communication systems.
Get Abracon AX5DAF16220800C today—built for ultra-low jitter and long-lasting durability in high-speed communication systems.
Frequently Asked Questions
Where can I buy ABRACON AX5DAF16220800C?
You can click on the BUY or RFQ button to purchase AX5DAF16220800C from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AX5DAF16220800C?
You can download the AX5DAF16220800C datasheet or visit the ABRACON website for support.
Who is the manufacturer of AX5DAF16220800C?
ABRACON
