ABRACON ABM8G25000MHZB4YT Ultra Miniature Oscillator
This ultra miniature ceramic glass sealed SMT crystal offers high reliability and stability for precise timing in high-density applications such as modems, communication, and test equipment. The 3.2x2.5x1.0mm package features RoHS compliance and is suitable for thin devices. It operates over a wide temperature range, withstands high temperatures, and is IR reflow capable. Its tight tolerance, stability, low cost, and small form factor make it ideal for wireless applications, test instruments, and communication systems, ensuring consistent performance in compact designs.
ABRACON ABM8G25000MHZB4YT Ultra Miniature Oscillator Specifications:
- Frequency Range: 12.000MHz - 50.000MHz
- Package Size: 3.2x2.5x1.0mm
- Material: Glass sealed ceramic
- RoHS compliant, Pb in glass exemption 7 (c)-I
- Temperature Range: -55°C to +125°C, -10°C to +60°C (tighter stability options)
- Frequency Stability at 25°C: ±3ppm max
- Initial Tolerance at 25°C: ±0.5ppm
- Series Resistance: See table 1, typically 50Ω at 12-50MHz
- ESR: Standard ESR values depend on frequency (see datasheet)
- Drive Level: Max. 100nW
- Shunt Capacitance: Max. 5.0pF
- Load Capacitance: 10pF (see options), specify in pF
- Insulation Resistance: 500MΩ at 100Vdc
- Reflow Profile: Peak 260°C, preheat 180°C, time parameters specified
- Dimensions: 3.2 x 2.5 x 1.0mm, with recommended land pattern for PCB mounting
- Reel Packaging: 1,000 or 3,000 pieces per reel, taping suitable for automated assembly

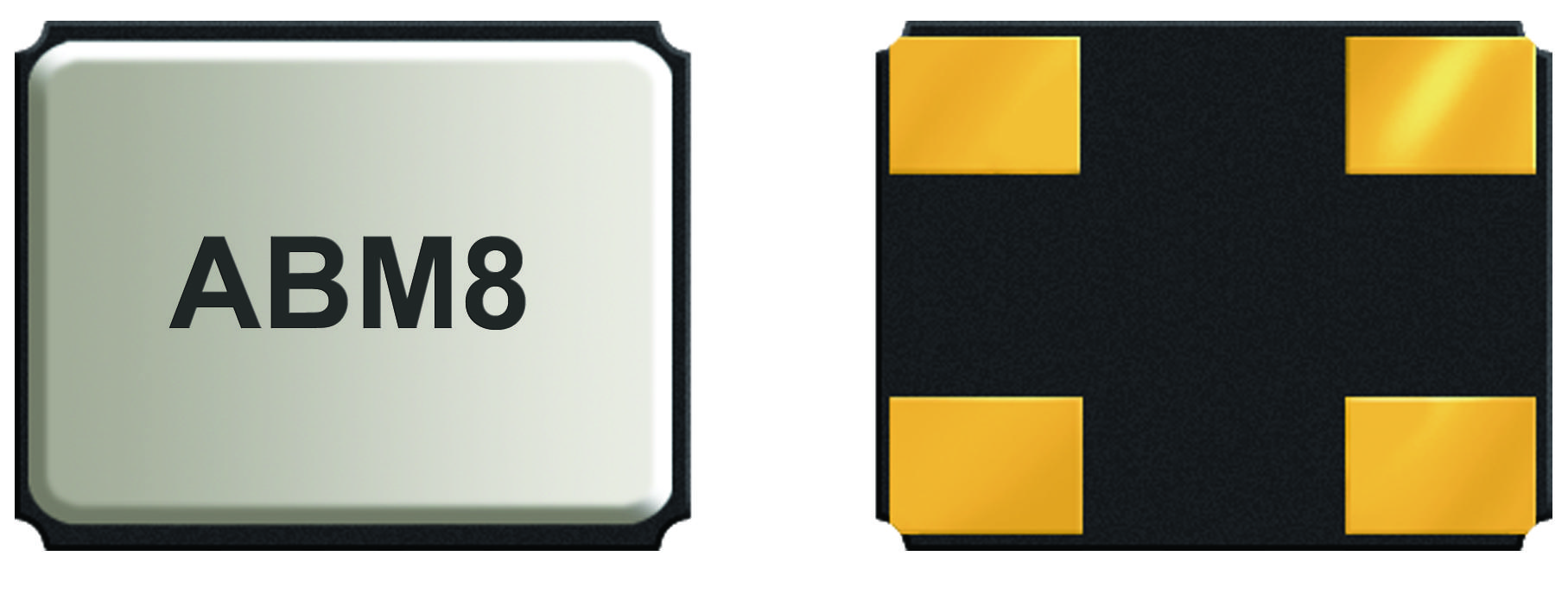

Buy the Buy Abrazon Ultra Miniature Crystal Part Number ABM8G25000MHZB4YT Online
Experience the superior performance of the ultra miniature oscillator, ideal for high-density applications requiring precise frequency stability. This ceramic glass sealed SMT crystal, measuring 3.2x2.5x1.0mm, offers high reliability, excellent temperature stability, and RoHS compliance. Perfect for modems, wireless devices, and communication systems, it ensures consistent operation in space-constrained designs. Easily reflowable and with tight frequency tolerance, buy online now to upgrade your equipment with this high-performance, cost-effective timing component that meets industry standards.
Buy Abrazon ABM8G25000MHZB4YT now and experience unmatched reliability and performance in compact high-frequency timing solutions.
Frequently Asked Questions
Where can I buy ABRACON ABM8G25000MHZB4YT?
You can click on the BUY or RFQ button to purchase ABM8G25000MHZB4YT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM8G25000MHZB4YT?
You can download the ABM8G25000MHZB4YT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM8G25000MHZB4YT?
ABRACON
