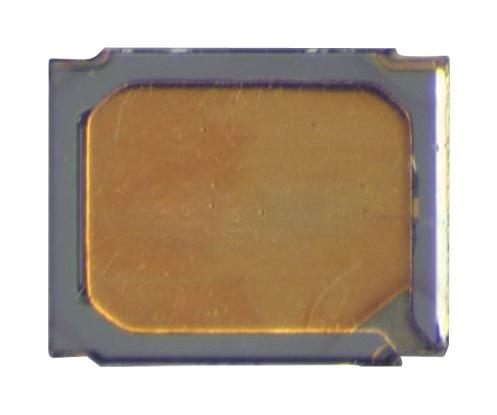

ABRACON ABS04W32768KHZ6D2T5 Tuning Fork Crystal
This component is used in clock and timing applications, providing precise timing signals for various electronic circuits. It features the industry's smallest tuning fork crystal size of 1.20x1.00x0.35 mm, making it ideal for space-constrained IoT, wearables, and wireless devices. Operating at 32.768 kHz, it offers low ESR and frequency stability over temperature, with options for different temperature tolerances. Its robust design ensures reliable performance for ultra-low power systems, including BLE, M2M, and NFC applications, providing accurate, long-term timing solutions.
ABRACON ABS04W32768KHZ6D2T5 Tuning Fork Crystal Specifications:
- Frequency: 32.768 kHz
- Operation Mode: Flexural Mode (Tuning Fork)
- Dimensions: 1.20 x 1.00 x 0.35 mm
- Operating Temperature: -40°C to +85°C (optional up to +105°C)
- Storage Temperature: -55°C to +125°C
- Frequency Tolerance: ±10 ppm, options available up to ±30 ppm
- Turn-over Temperature: +20°C to +30°C
- Load Capacitance (CL): 4pF, 6pF, 9pF, 12.5pF options
- ESR: <75 kΩ typical, variation based on load
- Equivalent Series Resistance (ESR): <75 kΩ to 130 kΩ
- Shunt Capacitance (C0): 2.0 pF
- Motional Capacitance (C1): 6.50 fF
- Motional Inductance (L1): 3.8 M H
- Drive Level: 0.1 - 0.5 μW
- Frequency Stability Over Temperature: ±200 ppm
- Aging (First Year): ±3 ppm
- Aging (Over 10 Years): ±15 ppm
- RoHS Compliant, MSL = N/A
Buy the Buy Abracon 32.768kHz Tuning Fork Crystal Part Number ABS04W32768KHZ6D2T5 Online
Purchase the Abracon tuning fork crystal ABS04W32768KHZ6D2T5 online for reliable, high-precision timing in space-constrained applications. Its ultra-low power consumption, extended temperature range, and stable frequency make it ideal for IoT devices, wearables, wireless modules, Bluetooth, NFC, and M2M communication systems. This compact crystal features options for different temperature tolerances, low ESR, and RoHS compliance, ensuring optimal performance in diverse environments, providing accurate timing signals for battery-powered systems with longevity and stability.
Get Abracon ABS04W32768KHZ6D2T5 today—built for precision, low power, and long-lasting durability in compact IoT, wearable, and wireless timing solutions.
Frequently Asked Questions
Where can I buy ABRACON ABS04W32768KHZ6D2T5?
You can click on the BUY or RFQ button to purchase ABS04W32768KHZ6D2T5 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABS04W32768KHZ6D2T5?
You can download the ABS04W32768KHZ6D2T5 datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABS04W32768KHZ6D2T5?
ABRACON
