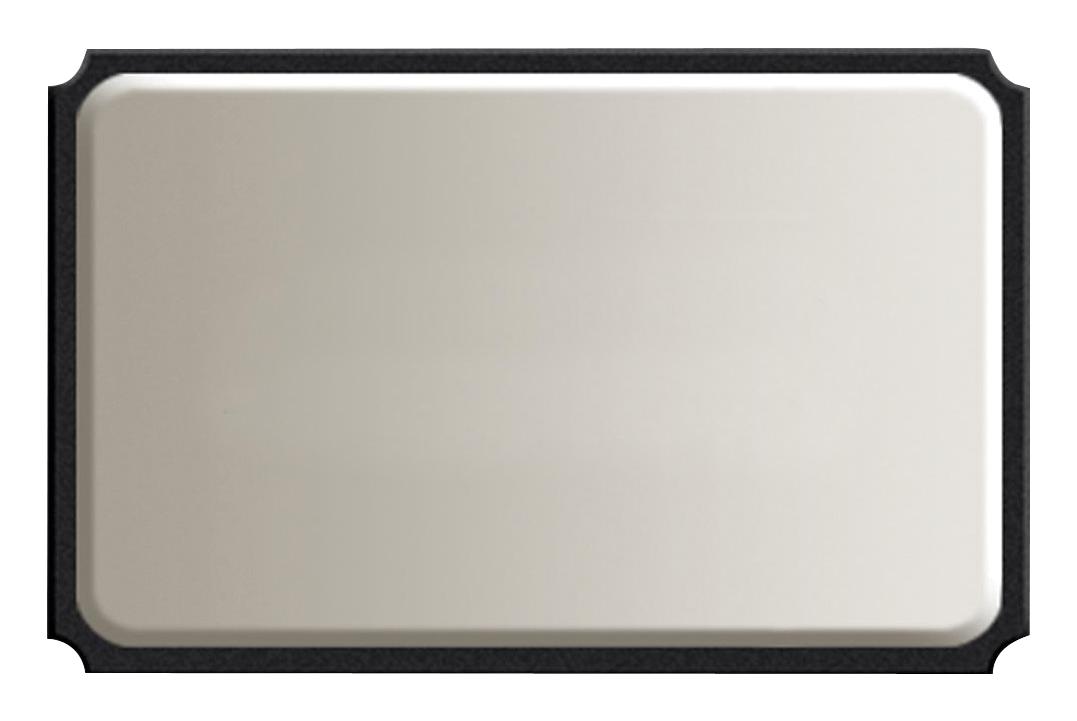

ABRACON ABM825000MHZ10D1GT smd crystal
This ultra-miniature ceramic SMD crystal is hermetically sealed, RoHS compliant, and ideal for high-density, low-profile applications like modems and communication equipment. Measuring 3.2x2.5x0.8mm, it offers fundamental and third overtone modes, with a frequency range of 10MHz to 125MHz, and operates in temperatures from -10°C to +60°C. Its tight tolerance and stability ensure reliable performance in demanding electronic and wireless applications, making it suitable for thin, high-reliability circuit designs requiring precise timing signals.
ABRACON ABM825000MHZ10D1GT smd crystal Specifications:
- Dimensions: 3.2x2.5x0.8mm
- Frequency Range: 10.000 - 125.000 MHz
- Operation Mode: Fundamental and 3rd Overtone
- Operating Temperature: -10°C to +60°C
- Storage Temperature: -55°C to +125°C
- Frequency Tolerance: ±50 ppm at +25°C
- Frequency Stability: ±50 ppm over operating temperature
- Equivalent Series Resistance: 30.000 - 54.000 Ω (Fundamental), 66.000 - 80.000 Ω (3rd Overtone)
- Shunt Capacitance: 7.0 pF
- Load Capacitance: 18.0 pF
- Drive Level: 10-100 µW
- Aging: 3 ppm first year
- Certifications: RoHS compliant
- Moisture Sensitivity Level: Sensitive (MSL)
Buy the Ultra Miniature Ceramic SMD Crystal – Reliable Timing for Industrial Applications
Purchase the Abracon ultra-miniature ceramic SMD crystal today for your electronic projects. This high-reliability component features precise frequency stability, hermetic sealing, and RoHS compliance, ensuring optimal performance in communication equipment, modems, and high-density circuits. Its compact size of 3.2x2.5x0.8mm makes it suitable for thin devices requiring accurate timing signals. Designed for durability and stability, it's perfect for demanding industrial and wireless applications, making your designs more reliable and efficient.
Get Abracon ABM825000MHZ10D1GT today—built for precision, compact size, and long-lasting durability in electronic timing solutions.
Frequently Asked Questions
Where can I buy ABRACON ABM825000MHZ10D1GT?
You can click on the BUY or RFQ button to purchase ABM825000MHZ10D1GT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM825000MHZ10D1GT?
You can download the ABM825000MHZ10D1GT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM825000MHZ10D1GT?
ABRACON
