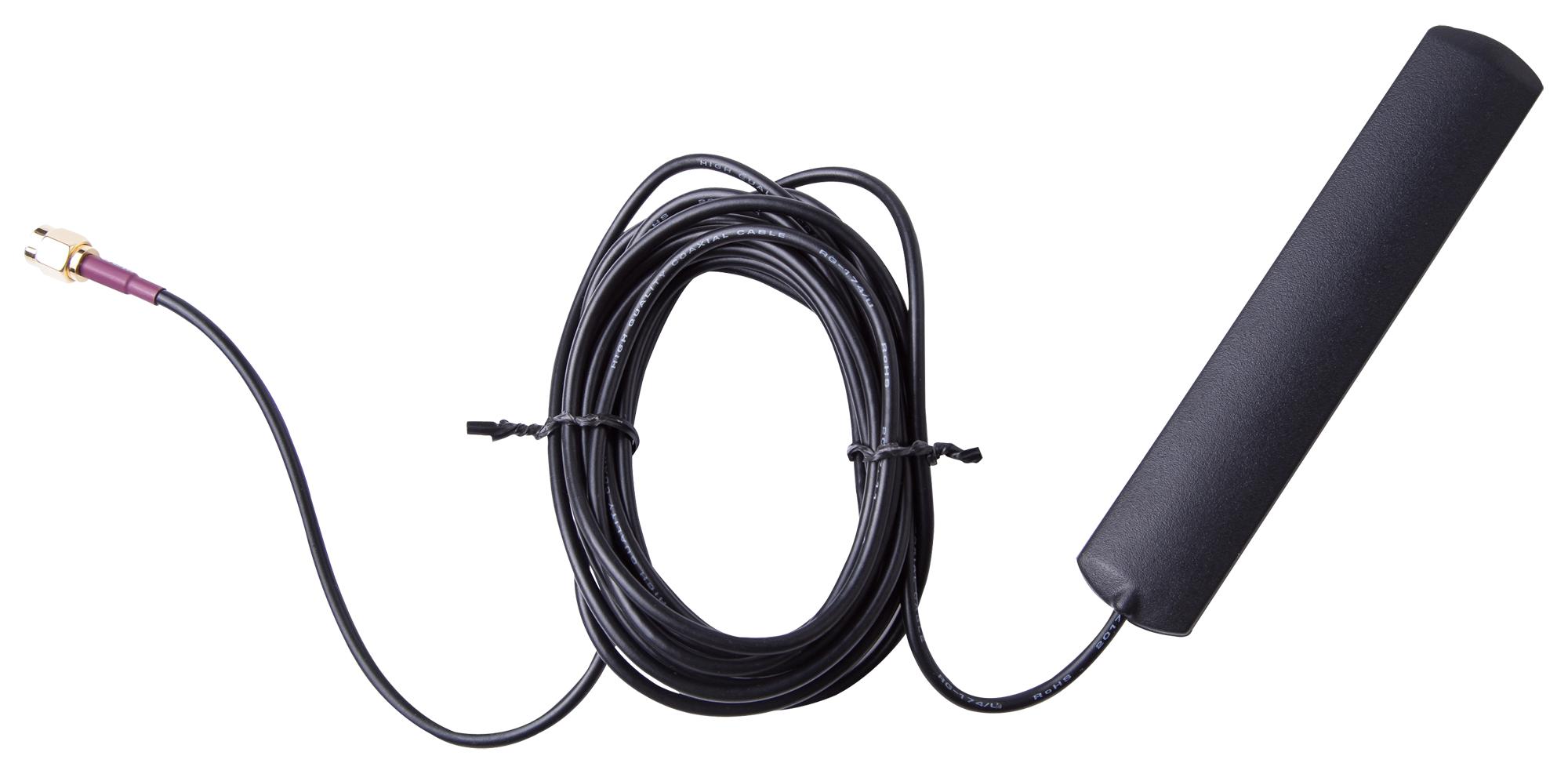

ABRACON AEACCA115021S850 GSM I-Bar Antenna
This GSM I-Bar adhesive mount antenna is designed for IoT, M2M, and GSM applications. It features multiband operation covering 824MHz to 960MHz and 1710MHz to 2170MHz frequencies. The blade-type antenna supports GSM-850, GSM-900, DCS-1800, and PCS-1900 bands. It comes with a 3-meter RG174 cable equipped with a Fakra connector, housed in an ABS radome for durability. The antenna measures approximately 115.6 x 21.7 x 5.8 mm. Suitable for wireless systems, IoT devices, and system monitoring applications.
ABRACON AEACCA115021S850 GSM I-Bar Antenna Specifications:
- Dimensions: 115.6 x 21.7 x 5.8 mm
- Frequency Range: 824-960 MHz, 1710-2170 MHz
- Gain: 2 dBi
- VSWR: 2.0
- Polarization: Linear
- Cable Type: RG174, 3 meters
- Connector: Fakra (or other options)
- Radome Material: ABS
- Power Handling: 50 W
- Return Loss: Better than -9.0008 dB at 824-960 MHz and 1710-2170 MHz
- Efficiency: 60% at 824 MHz, 57% at 1710 & 2170 MHz
- RoHS Compliant
- MSL: Not applicable
Buy the Buy Abracon GSM I-Bar Adhesive Antenna Part Number AEACCA115021S850 Online
Enhance your wireless systems with the high-performance GSM I-Bar adhesive antenna from Abracon. Designed for IoT, M2M, and GSM applications, this multiband blade antenna covers 824-960MHz and 1710-2170MHz bands, supporting GSM-850, GSM-900, DCS-1800, and PCS-1900 frequencies. It features a compact size of 115.6 x 21.7 x 5.8 mm, comes with a durable ABS radome, and includes a 3-meter RG174 cable with Fakra connector for easy installation. Ideal for remote monitoring and telematics, this antenna provides reliable, efficient signal performance across various wireless applications.
Order your Abracon GSM I-Bar Antenna AEACCA115021S850 today and ensure reliable multiband wireless connectivity for your IoT and M2M projects.
