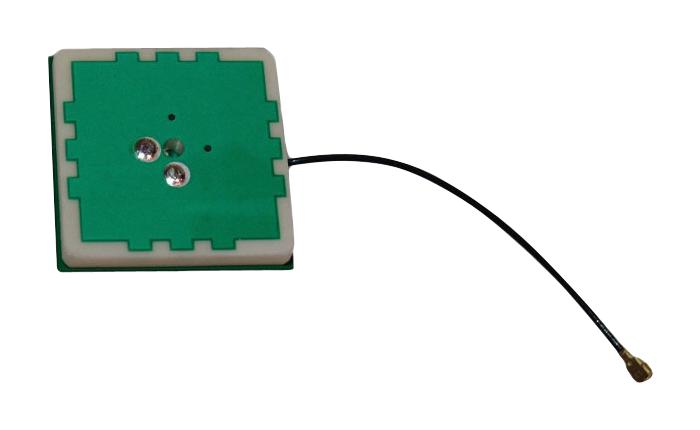

ABRACON APAKC3508ASG3 Multiband GNSS Patch Antenna
This compact active GNSS patch antenna supports multiple satellite navigation systems, including GPS, GLONASS, Beidou, and Galileo. Measuring 35.0 x 35.0 x 8.7 mm, it features RHCP polarization, integrated LNA with 32 dB gain, and is RoHS compliant. Its small form factor and high performance make it suitable for IoT, M2M, remote monitoring, geofencing, surveying, and logistics applications. The antenna has excellent return loss, radiation pattern, and impedance characteristics, optimized for reliable satellite signal reception in various environments.
ABRACON APAKC3508ASG3 Multiband GNSS Patch Antenna Specifications:
- Dimensions: 35.0 x 35.0 x 8.7 mm
- Frequency Range: 1555 ~ 1615 MHz
- Gain: 12 dB (typical)
- Polarization: RHCP
- LNA Gain: 32 dB
- VSWR: 3.0:1 (max)
- Impedance: 50 Ohms
- Return Loss: -20 dB at operating frequencies
- Connector: IPEX-II
- Cable Length: 75 mm
- Materials: Dielectric ceramics, Ground PCB FR4 0.6 mm
- Operating Temperature: -40°C to +80°C
- Storage Temperature: -40°C to +85°C
- Humidity: 10% to 95% RH
- Weatherproof: Yes, RoHS compliant
Buy the Abracon APAKC3508A-SG3 – Reliable GNSS Patch Antenna for Industrial Applications
Enhance your satellite navigation solutions with this compact and high-performance GNSS patch antenna supporting GPS, GLONASS, Beidou, and Galileo. Featuring RHCP polarization, integrated 32 dB LNA, and a durable RoHS-compliant design, it ensures accurate signal reception even in challenging environments. Its small size of 35 by 35 mm makes it ideal for IoT devices, remote monitoring, surveying, and logistics. Easy to install with a reliable IPEX connector, this antenna offers excellent return loss, radiation pattern, and impedance characteristics for dependable applications nationwide or worldwide.
Buy Abracon APAKC3508A-SG3 now and experience unmatched reliability and performance in GPS, GLONASS, Beidou, and Galileo satellite tracking.
Frequently Asked Questions
Where can I buy ABRACON APAKC3508ASG3?
You can click on the BUY or RFQ button to purchase APAKC3508ASG3 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part APAKC3508ASG3?
You can download the APAKC3508ASG3 datasheet or visit the ABRACON website for support.
Who is the manufacturer of APAKC3508ASG3?
ABRACON
