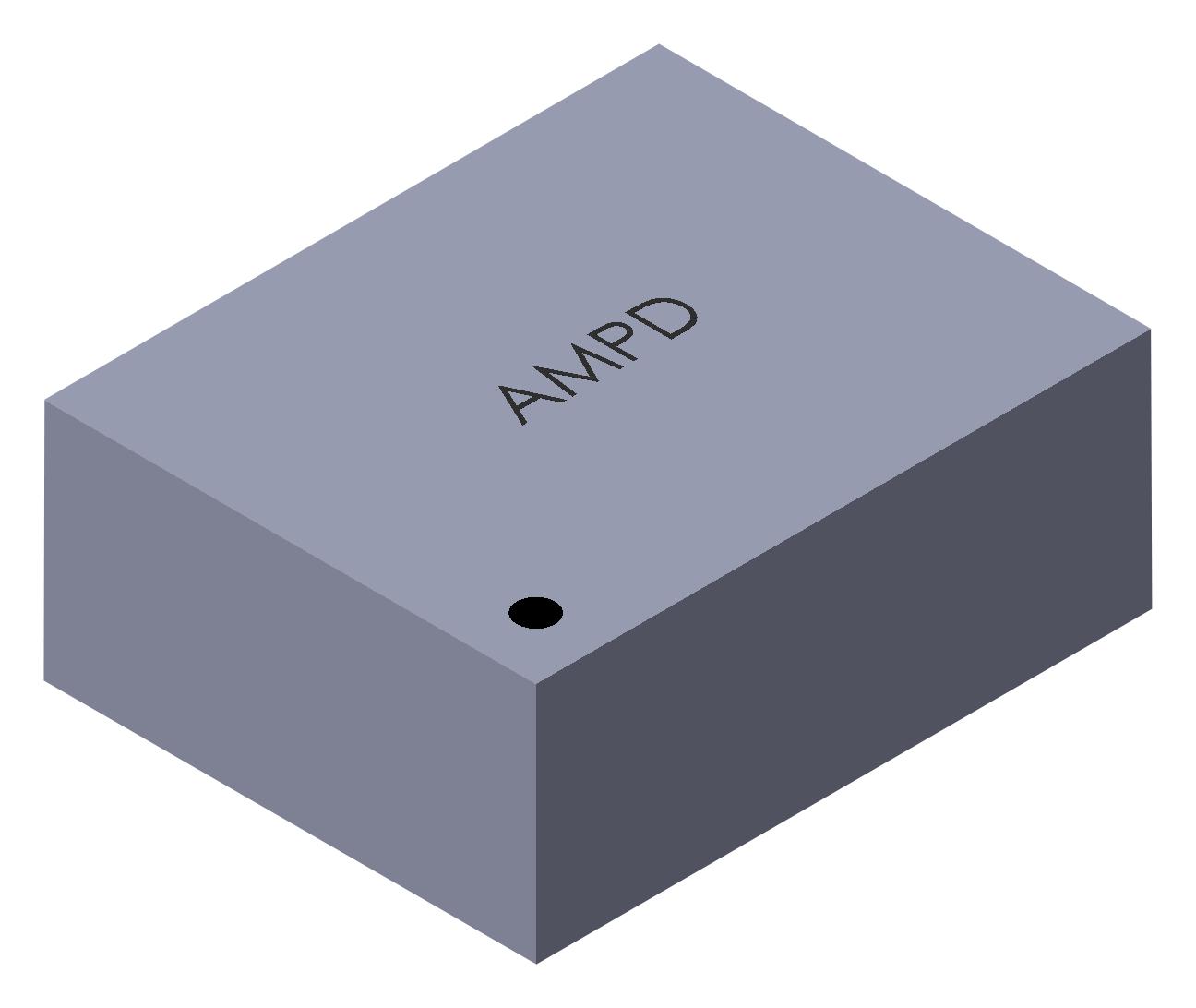

ABRACON AMPDAFIA02 MEMS Oscillator
The product is a frequency selectable MEMS oscillator featuring a compact size with multiple package options including 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, and 3.2x2.5mm, all RoHS compliant and MSL=MSL1. It provides a wide frequency range from 1 MHz to 80 MHz, low power consumption with typical current of 1.3mA, and operates reliably from -40°C to +85°C. Designed for applications in audio, video, drones, robotics, IoT, and industrial environments, these oscillators deliver high stability, short settle times, and multiple output options.
ABRACON AMPDAFIA02 MEMS Oscillator Specifications:
- Size options: 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm
- Frequency range: 1 MHz to 80 MHz
- Supply Voltage: 1.71 to 3.63 V
- Operating Temperature: -40°C to +85°C
- Current Consumption: 1.3 mA typical
- Frequency Stability: ~50 ppm options, aging ±1 ppm/year after first year
- Output Logic Levels: VOH 0.2*Vv, VOL 0.2*Vv
- Duty Cycle: 40% to 60%
- RoHS/RoHS II compliant
- Mechanical package: VFLGA, DFN packages
- Moisture Sensitivity Level: MSL=MSL1
- Reel packaging options: 1000pcs or 3000pcs
- ESD Susceptibility: 4kV HBM, 400V MM, 2kV CDM
Buy the Buy Abracon AMPDAFIA02 Part Number AMPDAFIA02 Online
Purchase Abracon's advanced MEMS oscillator online. Featuring adjustable frequency, low power consumption, and broad temperature range, it is perfect for IoT, audio, video, robotics, and industrial tech. This compact device with RoHS compliance and reliable MSL=MSL1 packaging ensures easy integration into your designs. Choose from various packages and reel quantities, including 1000pcs and 3000pcs, with quick delivery options. Enhance your project’s precision, durability, and performance by ordering this high-performance oscillator today.
Get Abracon AMPDAFIA02 today—compact, low power MEMS oscillator for reliable frequency stability in IoT and industrial applications.
Frequently Asked Questions
Where can I buy ABRACON AMPDAFIA02?
You can click on the BUY or RFQ button to purchase AMPDAFIA02 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPDAFIA02?
You can download the AMPDAFIA02 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPDAFIA02?
ABRACON
