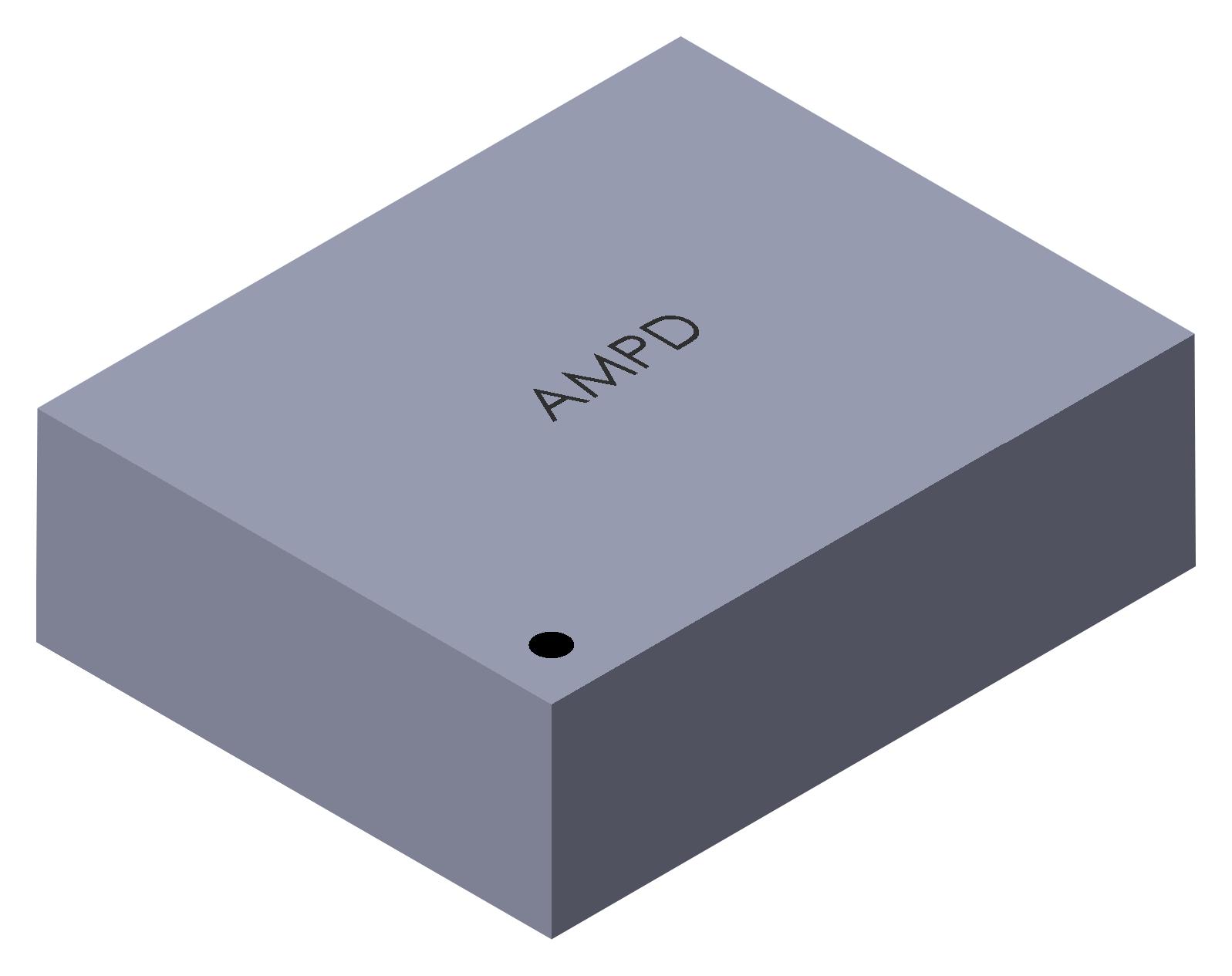

ABRACON AMPDDFHA09 MEMS Oscillator
The AMPDDFHA09 is a frequency selectable MEMS oscillator featuring a compact size with various packages like 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, and 3.2x2.5mm. It offers dual frequency options, low power consumption of 1.3mA at typical operation, and wide temperature range from -40°C to +85°C. Designed for applications such as high-precision timing in IoT, wearables, drones, and robotics, it complies with RoHS standards, provides rapid settling times of 40 hours, and features stable frequency outputs between 1MHz and 80MHz, with customizable drive strengths and output configurations.
ABRACON AMPDDFHA09 MEMS Oscillator Specifications:
- Size options: 1.6x1.2mm, 2.0x1.6mm, 2.5x2.0mm, 3.2x2.5mm
- Frequency Range: 1.0 MHz to 80 MHz
- Supply Voltage: 1.71V to 3.63V
- Current Consumption: 1.3mA (typical at 24MHz, Vd=1.8V)
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -55°C to +150°C
- Frequency Stability: ~50 ppm to ~50 ppm (options vary)
- Drive Strengths: Standard (>3mA), Low Power (>1mA)
- Start-up Time: 13ms, Settling Time: 40 hours
- RoHS/RoHS II Compliant, MSL=MSL1
- Mechanical Dimensions: 1.6x1.2mm to 3.2x2.5mm with specific package outlines
- Waveform: Crystally stable clock output, with enable and control features
- Reflow Soldering Profile: Preheat 150°C-200°C, Peak at 255°C-260°C
- Application areas include IoT, industrial IoT, wearables, drones, robotics, and audio/video equipment
Buy the Buy Abracon Frequency Selectable MEMS Oscillator Part Number AMPDDFHA09 Online
Order the Abracon AMPDDFHA09 MEMS oscillator online today and benefit from its compact size, low power consumption, wide temperature range, and dual frequency output options. Perfect for IoT devices, wearables, drones, and robotics, this high-performance oscillator offers stable frequency outputs from 1MHz to 80MHz with rapid settling times and excellent stability. Designed with RoHS compliance and available in multiple package sizes, it's an ideal choice for demanding electronic applications requiring precision and reliability.
Get Abracon AMPDDFHA09 today—built for precision and long-lasting durability in high-accuracy timing applications.
Frequently Asked Questions
Where can I buy ABRACON AMPDDFHA09?
You can click on the BUY or RFQ button to purchase AMPDDFHA09 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPDDFHA09?
You can download the AMPDDFHA09 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPDDFHA09?
ABRACON
