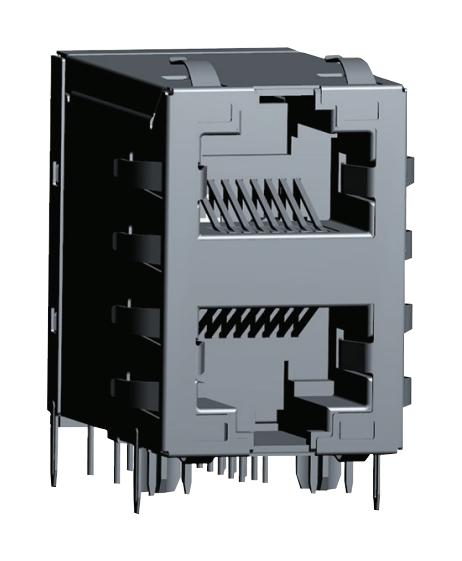

ABRACON ARJM21A1547NNEW2 Ethernet Module
The RJ45 2x1 multiport module supports 100/1000/2.5G/5G Base-T Ethernet networking, with integrated high-performance magnetics for EMI suppression and UL certification. Its compact dimensions of 17.1 x 28.1 x 25.5 mm enable installation in various network devices, including servers, switches, routers, and industrial equipment. The device features gold-plated contacts, RoHS compliance, and an extended operating temperature range from -40°C to 85°C. Ideal for high-speed data transmission with reliable electrical and mechanical specifications suitable for demanding industrial and commercial applications.
ABRACON ARJM21A1547NNEW2 Ethernet Module Specifications:
- Dimensions: 17.1 x 28.1 x 25.5 mm
- Material: PBT housing, UL94V-0
- Contact Material: Phosphor Bronze, Gold and Nickel plating
- Metal Shell: Brass, Nickel plated
- Operating Temperature: -40°C to 85°C
- Certifications: UL E503350, RoHS compliant
- Wave Soldering Profile: 280°C for 10 sec
- Insertion Loss: 0.5-100MHz, -20 to -35dB
- Return Loss: -12 to -20dB across 1-100MHz
- Leakage Inductance: For 2.5G and 5G Base-T
- Turn Ratio: 100kHz, 0.1V, 8mADC
- Magnetics: High performance integrated for EMI suppression
- Applications: Ethernet switches, servers, routers, industrial computers
Buy the Buy Abracon Ethernet Module Part Number ARJM21A1547NNEW2 Online
Secure your network with the Abracon Ethernet Module supporting 100/1000/2.5G/5G Base-T standards. Featuring high-performance integrated magnetics for EMI suppression, UL safety certification, and RoHS compliance, this compact device is suitable for servers, switches, and industrial routers operating from -40°C to 85°C. Its durable construction with gold-plated contacts ensures reliable data transmission in industrial environments. Easily integrate this module into your networking projects for enhanced speed, stability, and compliance with international safety standards. Order online now and improve your communication infrastructure efficiently.
Order your Abracon Series ARJM21A1547NNEW2 Ethernet module today and elevate your network reliability with high-speed, industrial-grade performance.
Frequently Asked Questions
Where can I buy ABRACON ARJM21A1547NNEW2?
You can click on the BUY or RFQ button to purchase ARJM21A1547NNEW2 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ARJM21A1547NNEW2?
You can download the ARJM21A1547NNEW2 datasheet or visit the ABRACON website for support.
Who is the manufacturer of ARJM21A1547NNEW2?
ABRACON
