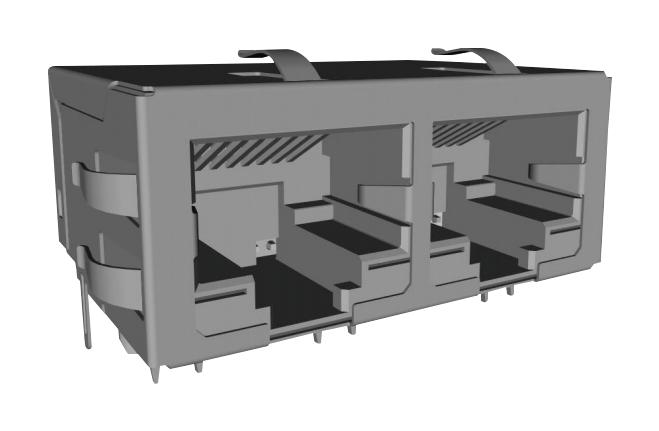

ABRACON ARJM12A1502ABEW2 Ethernet Transformer
The RJ45 1x2 Multiport is a high-performance Ethernet transformer network supporting 100/1000/2.5G/5G Base-T standards, compliant with IEEE 802.3, and UL certified. Made with high-quality materials, it features a compact size of 31.2 x 21.3 x 13.6 mm, and is RoHS compliant and rated for operating temperatures from -40°C to 85°C. Suitable for server, switch, router, and IP communication applications, it includes options with gold plating, LED indicators, and EMI fingers, ensuring reliable signal transmission and EMI suppression.
ABRACON ARJM12A1502ABEW2 Ethernet Transformer Specifications:
- Size: 31.2 x 21.3 x 13.6 mm
- Material: Housing, PBT UL94V-0; Contacts, Phosphor Bronze with Nickel and Gold plating; Shell, Brass with Nickel plating
- Electrical Ratings: Supports 100/1000/2.5G/5G Base-T Ethernet standards, Turn Ratio 100kHz, 0.1V, 8mADC
- Temperature Range: -40°C to 85°C operating, -55°C to +105°C storage
- Certifications: UL E503350, RoHS/RoHS II, MSL=1
- Mechanical: 8-pin or 10-pin configurations, with or without LEDs, available with EMI fingers
- Relative inductance, leakage inductance, DC Resistance, and insertion loss meet IEEE standards
- Housing is black PBT; contact pins are phosphor bronze with nickel and 100% Sn plating
- Wave soldering profile: 260°C for 10-20 seconds, package size 340 x 215 x 275 mm, weight 10.82 g
Buy the Abracon ARJM12 – Reliable Ethernet Transformer for Industrial Applications
Purchase the Abracon ARJM12 Ethernet transformer now to ensure reliable high-speed connectivity in industrial data centers, servers, and IP communication systems. This compact transformer supports 100/1000/2.5G/5G Base-T Ethernet standards, is UL certified, RoHS compliant, and rated for extreme operating temperatures from -40°C to 85°C. Suitable for various applications including switches, routers, and surveillance networks, it guarantees EMI suppression and signal integrity with options for gold plating and LED indicators, making it an ideal choice for demanding environments.
Order your Abracon series ARJM12 Ethernet transformer today and enhance your network equipment with dependable high-speed signal integrity.
Frequently Asked Questions
Where can I buy ABRACON ARJM12A1502ABEW2?
You can click on the BUY or RFQ button to purchase ARJM12A1502ABEW2 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ARJM12A1502ABEW2?
You can download the ARJM12A1502ABEW2 datasheet or visit the ABRACON website for support.
Who is the manufacturer of ARJM12A1502ABEW2?
ABRACON
