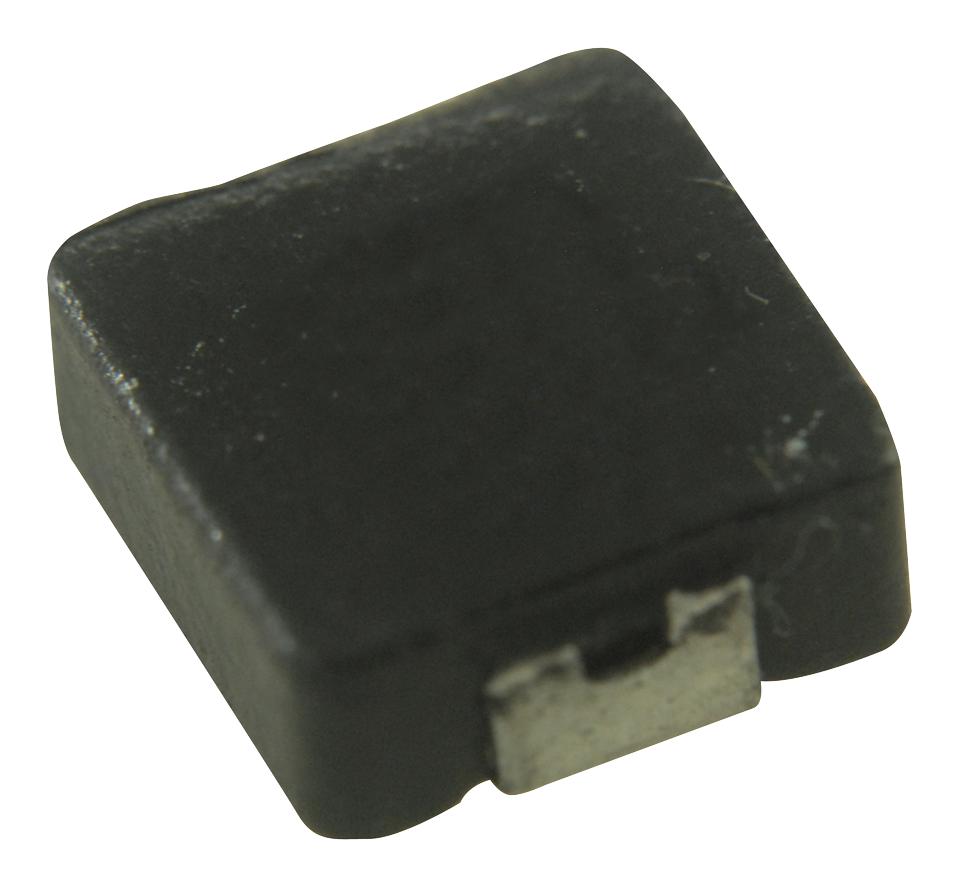

ABRACON AMPLA7030Q2R2MT Automotive Molded Inductor
The automotive molded inductor is designed for high-frequency switching applications between 100KHz and 2MHz, featuring shielded construction, soft saturation, and high current density. Qualified under AEC-Q200 standards, it withstands operating temperatures from -55°C to +125°C and features robust materials like carbonyl powder core, copper wire, and tin-plated terminals. Available in various inductance values from 0.10 µH to 47 µH, it is packaged primarily in Tape and Reel configuration suitable for automated assembly, and recommends specific reflow soldering profiles for optimal performance.
ABRACON AMPLA7030Q2R2MT Automotive Molded Inductor Specifications:
- Inductance: 0.10 µH to 47 µH, various values available
- Tolerance: 20% (M), 30% (N)
- Operating Temperature: -55°C to +125°C
- Maximum Part Temperature: +125°C
- Temperature Rise Current: measured at 40°C
- Core Material: Carbonyl Powder
- Wire Material: Copper
- Terminal Plating: Tin
- Package: Tape and Reel (1000 pcs/reel)
- Weight per Unit: 0.75g
- Dimensions: approximately 16mm x 16mm x 13mm
- Reflow Profile: Preheat 150-200°C for 60 sec, Peak 260°C for 10 sec max
Buy the Abpacron AMPLA7030Q2R2MT – Reliable Automotive Molded Inductor for Industrial Applications
Enhance your automotive designs with the high-quality automotive molded inductor. Designed for switching frequencies between 100KHz and 2MHz, it features shielded construction, soft saturation, and high current density. Qualified under AEC-Q200 standards, this inductors offers reliable performance in demanding environments. Available in various inductance values from 0.10 µH to 47 µH, and packaged in Tape and Reel, it’s ideal for automated manufacturing. Order online now for fast delivery and elevate your automotive and industrial applications with dependable inductors.
Order your Abpacron Series AMPLA7030Q2R2MT automotive molded inductor today and ensure high-frequency performance in your automotive electronics projects.
Frequently Asked Questions
Where can I buy ABRACON AMPLA7030Q2R2MT?
You can click on the BUY or RFQ button to purchase AMPLA7030Q2R2MT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMPLA7030Q2R2MT?
You can download the AMPLA7030Q2R2MT datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMPLA7030Q2R2MT?
ABRACON
