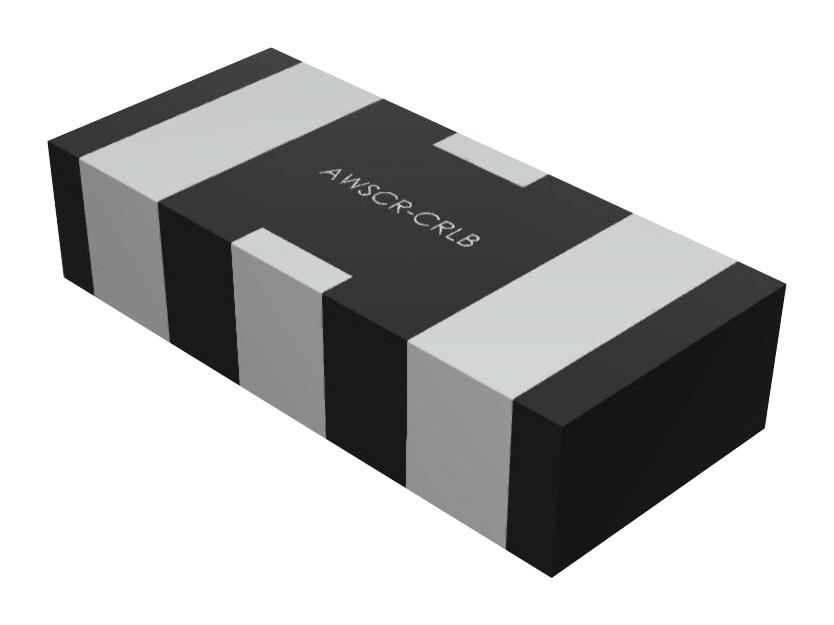

ABRACON AWSCR500CRLBC15T3 Ceramic Resonator
The AWSCR500CRLBC15T3 is a ceramic resonator designed for precise frequency control in industrial and electronic applications. It features a compact size of 4.5 x 2.0 x 1.0 mm, RoHS compliance, and low resonance impedance, making it suitable for microprocessor and metering system integration. Operating within 4.00 to 12.00 MHz, it offers stable oscillating frequency with a maximum drift of 0.2% over a temperature range of -40°C to 125°C. The resonator has a rated voltage of 6 V DC and 15 V AC, with excellent insulation resistance and aging characteristics for long-term reliability.
ABRACON AWSCR500CRLBC15T3 Ceramic Resonator Specifications:
- Size: 4.5 x 2.0 x 1.0 mm
- RoHS/RoHS I Compliant
- Pb in ceramic, exemption 7c
- Not Moisture Sensitive - MSL=1
- Oscillating Frequency: 4.00 - 12.00 MHz
- Resonant Frequency: 15 pF (standard), other options: 10, 22, 30, 33, 39, 47 pF
- Frequency Tolerance: ±0.5%
- Temperature Range: -40°C to +125°C
- Frequency Drift: max 0.2% over -40°C to +125°C
- Voltage Rating: 6 V DC, 15 V AC
- Insulation Resistance: 100 MΩ
- Aging Rate: ±0.2% over 10 years
- Peak Reflow Temperature: 260°C, within 20-40 seconds
- Lifespan: 12 months shelf life when stored properly
Buy the Abracon AWSCR500CRLBC15T3 – Reliable Ceramic Resonator for Industrial Applications
Purchase the Abracon AWSCR500CRLBC15T3 ceramic resonator online to ensure stable frequency control in your electronic and industrial projects. Compact and RoHS compliant, this resonator offers a wide operating frequency range of 4.00 to 12.00 MHz, low drift of 0.2%, and excellent reliability over a temperature range of -40°C to +125°C. Its durable construction and optimized reflow profile make it ideal for microprocessor systems, metering, and industrial control applications. Buy now for superior performance and long-term stability in your design.
Get Abracon AWSCR500CRLBC15T3 today—built for precision and long-lasting durability in industrial environments.
Frequently Asked Questions
Where can I buy ABRACON AWSCR500CRLBC15T3?
You can click on the BUY or RFQ button to purchase AWSCR500CRLBC15T3 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AWSCR500CRLBC15T3?
You can download the AWSCR500CRLBC15T3 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AWSCR500CRLBC15T3?
ABRACON
