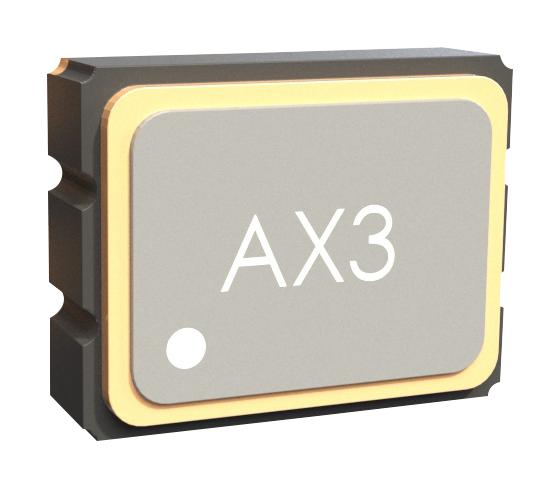

ABRACON AX3PAF11250000 Crystal Oscillator
The ClearClock Ultra-Low Jitter Oscillator is a compact 3.2 x 2.5 mm crystal oscillator designed for industrial, networking, and communication applications. It features exceptionally low RMS jitter below 80fs and operates across standard frequencies from 100MHz to 200MHz, with excellent stability over -40°C to +85°C. Configurable with LVPECL, LVDS, and HCSL differential outputs, it consumes minimal power at 16mA. RoHS compliant, with options for multiple supply voltages (1.8V, 2.5V, 3.3V), making it ideal for high-performance electronic systems requiring precise timing and low power.
ABRACON AX3PAF11250000 Crystal Oscillator Specifications:
- Frequency Range: 100MHz to 200MHz
- Frequency Stability: +/- 425ppm over -40°C to +85°C
- Jitter: <80fs RMS (typ), <150fs max @ 156.25MHz
- Supply Voltage Options: 1.8V, 2.5V, 3.3V
- Supply Current: LVDS 16mA (max @ 200MHz), LVPECL 30-50mA
- Output Types: LVPECL, LVDS, HCSL
- Operating Temperature Range: -40°C to +85°C
- Package Size: 3.2 x 2.5 x 1.0mm
- RoHS, RoHS II compliant
- MSL: 1
- Additional features: Low power consumption, stable performance, suitable for high-frequency applications
Buy the Abracon AX3PAF11250000 – Reliable Low Jitter Crystal Oscillator for Industrial Applications
Enhance your electronic designs with the Abracon Crystal Oscillator, offering ultra-low jitter, high stability from 100 to 200MHz, and multiple output options. Its compact 3.2 x 2.5 mm footprint ensures easy integration into space-constrained systems. Designed for industrial, networking, and measurement applications, this RoHS-compliant oscillator ensures reliable performance with low power consumption of just 16mA at 156.25MHz. Sealed in a small package, it provides precise timing over wide temperature ranges, making it ideal for demanding high-performance applications.
Buy Abracon AX3PAF11250000 now and experience unmatched reliability and precision in your high-frequency electronic systems.
Frequently Asked Questions
Where can I buy ABRACON AX3PAF11250000?
You can click on the BUY or RFQ button to purchase AX3PAF11250000 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AX3PAF11250000?
You can download the AX3PAF11250000 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AX3PAF11250000?
ABRACON
