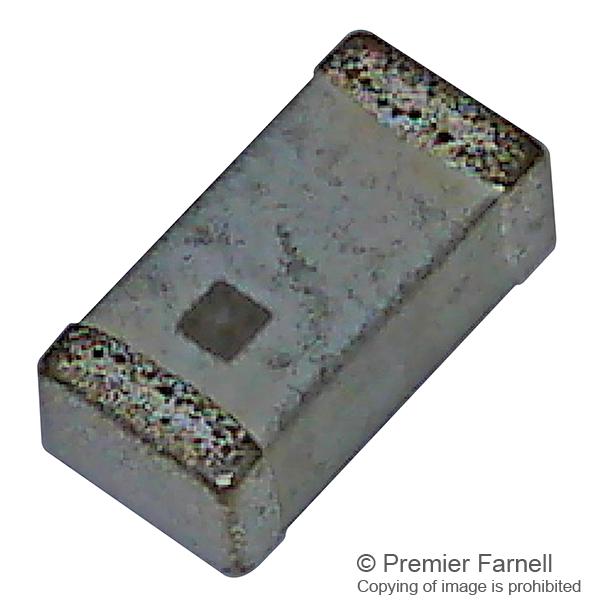

ABRACON AMCA312R450GS1FT3 Wireless Chip Antenna
This compact surface mount WLAN and Bluetooth chip antenna operates at 2450MHz with bandwidth exceeding 90MHz, offering a peak gain of 0.5dBi and an average of -1dBi. Its small size of 3.2 x 1.6 x 1.2mm makes it ideal for high-density applications like IoT devices, Bluetooth headsets, PC peripherals, and industrial automation. It features a 50 Ohm impedance, supports up to 3W power, and is RoHS compliant. Designed for reflow and manual soldering, it maintains excellent performance over -40°C to +85°C operating temperature, ensuring reliable wireless connectivity.
ABRACON AMCA312R450GS1FT3 Wireless Chip Antenna Specifications:
- Frequency: 2450MHz
- Bandwidth: >90MHz
- Peak Gain: 0.5dBi
- Average Gain: -1dBi
- VSWR: <2:1
- Impedance: 50 Ohm
- Power Capability: 3W max
- Operating Temperature Range: -40°C to +85°C
- Storage Temperature Range: -10°C to +40°C
- Dimensions: 3.2 x 1.6 x 1.2mm
- RoHS / RoHS II Compliant
- Reflow Profile suitable for Sn/3.0Ag/0.5Cu solder paste
- Max Temp at reflow: 260°C
- Manual Soldering: Pre-heating temp 120°C, tip temp max 350°C
Buy the Brand Series Antenna: AMCA31-2R450G-S1F-T
Order the ABRACON AMCA31-2R450G-S1F-T today online and elevate your wireless project with a high-quality, compact antenna designed for Bluetooth and WiFi at 2450MHz. Its small size ensures seamless integration into IoT devices, industrial automation, and consumer electronics. Supported by RoHS compliance, it supports high-density applications with a power handling capacity of 3W, offering consistent performance over wide temperature ranges. Simplify your assembly process with reliable surface-mount technology and enjoy fast delivery for your wireless needs.
Buy ABRACON AMCA31-2R450G-S1F-T now and experience unmatched reliability and performance with its compact, high-efficiency design for wireless applications.
Frequently Asked Questions
Where can I buy ABRACON AMCA312R450GS1FT3?
You can click on the BUY or RFQ button to purchase AMCA312R450GS1FT3 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AMCA312R450GS1FT3?
You can download the AMCA312R450GS1FT3 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AMCA312R450GS1FT3?
ABRACON
