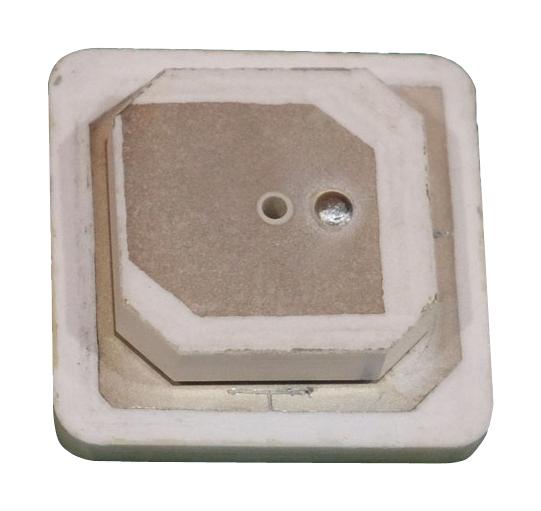

ABRACON APAKM4012C2G3D GNSS SDARS Patch Antenna
The stacked ceramic patch antenna supports multiple GNSS frequencies including GPS, GLONASS, BEIDOU, and Galileo, along with SDARS applications. Measuring 40.0 x 40.0 x 12.2 mm, it features RoHS compliance and is suitable for satellite radio, IoT, remote technology monitoring, and surveying systems. Its polarized design includes RHCP for GNSS and LHCP for SDARS, ensuring reliable signal reception across various frequencies from 1561 MHz to 2345 MHz. The antenna withstands wide temperature ranges from -40°C to +85°C for operation, with storage up to +105°C, and features robust humidity, vibration, and thermal cycle resilience, making it ideal for challenging industrial environments.
ABRACON APAKM4012C2G3D GNSS SDARS Patch Antenna Specifications:
- Dimensions: 40.0 x 40.0 x 12.2 mm
- Frequency Range: 1561 MHz to 2345 MHz
- Supported Frequencies: 1561, 1575, 1589, 1602, 2320, 2332, 2345 MHz
- Polarization: RHCP for GNSS, LHCP for SDARS
- Operating Temperature: -40°C to +85°C
- Storage Temperature: -40°C to +105°C
- Humidity Resistance: 90% to 95% RH
- Temperature Coefficient: 20 ppm/°C
- RoHS/RoHS II Compliant
- MSL: Not Applicable
- Vibration Testing: 2 hours in x, y, z axes, amplitude 1.5mm, frequency 10-55Hz
- Soldering Test: Terminal heating up to 350°C ±10°C for 5 ±0.5 sec
- Solder Ability: Over 95% of terminals covered with solder in 260°C-290°C bath
- Mechanical Strength: 2 kg axial force for 10 seconds without damage
- Application Suitability: satellite radio, IoT, remote tech monitoring, surveying, logistics
Buy the Abracon APAKM4012-C2G3D – Reliable GNSS and SDARS Patch Antenna for Industrial Applications
Purchase the Abracon APAKM4012-C2G3D patch antenna online today. Designed for multi-band GNSS and SDARS, it offers robust performance and durability for industrial, IoT, and surveying applications. Its compact size, RoHS compliance, and wide temperature tolerance ensure reliable operation in challenging environments. This antenna supports various frequency bands from 1561 MHz to 2345 MHz, with polarization optimized for GNSS and SDARS signals. Ideal for satellite radio, remote tech monitoring, and logistics systems, it guarantees high signal integrity, resilience to vibration, humidity, and thermal cycling for long-term, dependable use.
Get Abracon APAKM4012-C2G3D today—built for precision in GNSS and satellite radio applications in demanding environments.
