ABRACON APAKN1804C2GT GNSS Ceramic Patch Antenna

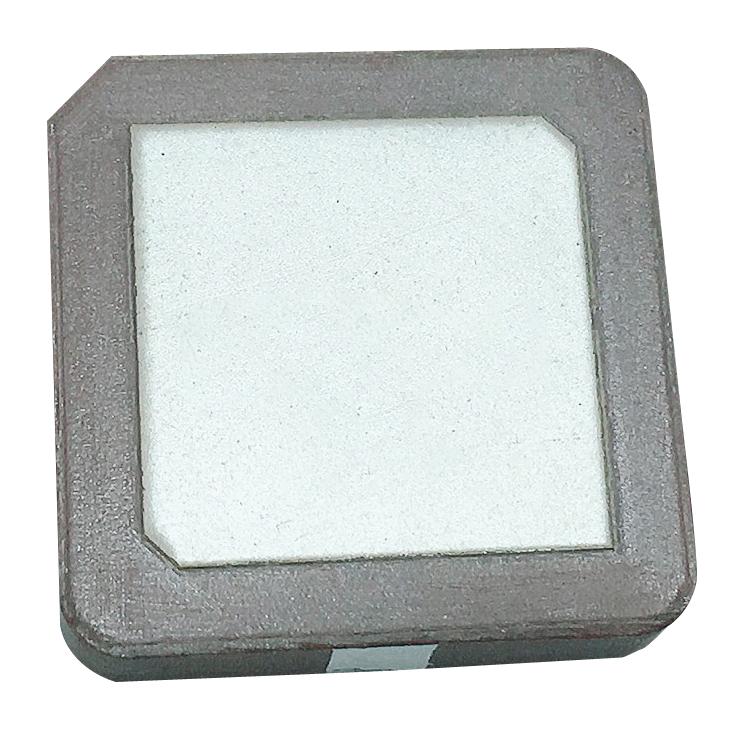

This GPS/Galileo and GLONASS ceramic patch antenna is designed for wireless applications, IoT, and remote monitoring systems. It measures 18mm by 18mm and 4mm thick, offering a gain of 2.8 dBi at 1575.42 MHz and 2.9 dBi at 1602 MHz, with RHCP polarization. Its compact size makes it ideal for embedded systems requiring reliable satellite reception in a small form factor, suitable for various GNSS-based applications across IoT and M2M environments, ensuring stable and precise positioning signals for diverse hardware solutions.
ABRACON APAKN1804C2GT GNSS Ceramic Patch Antenna Specifications:
- Dimensions: 18.0 x 18.0 x 4.0mm
- Gain: 2.8 dBi at 1575.42 MHz, 2.9 dBi at 1602 MHz
- Application Band: GPS / Galileo, GLONASS
- Polarization: RHCP
- Frequency Range: 1575.42 and 1602 MHz
- Ground Plane Size: 70x70mm for optimal performance
- RoHS Compliance: Yes
- MSL: 1
- Material: Ceramic
- Temperature Range: Not specified
- Connector Type: Not specified
Buy the Abracon Series GNSS Ceramic Patch Antenna: APAKN1804C2GT
Order the Abracon GNSS Ceramic Patch Antenna APAKN1804C2GT online today and enhance your satellite navigation systems with its compact design, high gain, and RHCP polarization. Perfect for IoT, GNSS, and remote monitoring applications, this antenna offers reliable reception at 1575.42 and 1602 MHz frequencies, ensuring precise positioning in embedded and monitoring systems. Its small footprint makes integration easy for various devices, providing stable performance in diverse environments for industrial, commercial, and research uses.
Get Abracon APAKN1804C2GT today—built for precision, compact size, and reliable satellite reception in IoT and remote monitoring applications.
Frequently Asked Questions
Where can I buy ABRACON APAKN1804C2GT?
You can click on the BUY or RFQ button to purchase APAKN1804C2GT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part APAKN1804C2GT?
You can download the APAKN1804C2GT datasheet or visit the ABRACON website for support.
Who is the manufacturer of APAKN1804C2GT?
ABRACON
