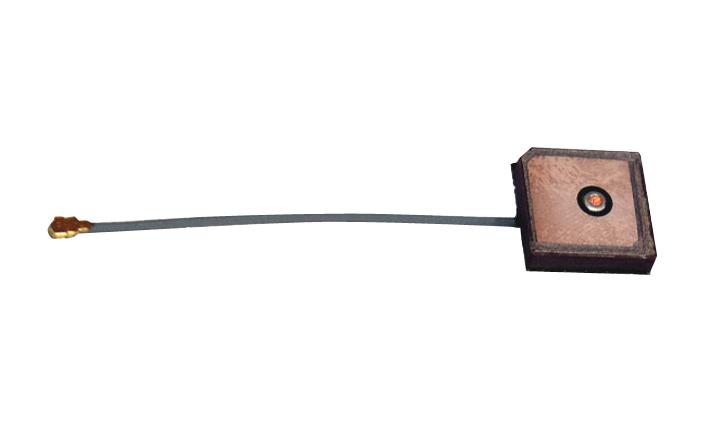

ABRACON APARC1807ASG3 GNSS Patch Antenna
This compact active multiband GNSS patch antenna supports GPS, GLONASS, Galileo, and BeiDou signals, featuring an integrated low-noise amplifier (LNA), RHCP polarization, and wide bandwidth. Its small size of 18.0 x 18.0 x 7.6 mm with RoHS compliance makes it ideal for precise location tracking in IoT, M2M applications, geofencing, surveying, and mapping. The antenna includes a ground plane with an IPEX connector, ensuring reliable performance across various environmental conditions from -40°C to +85°C.
ABRACON APARC1807ASG3 GNSS Patch Antenna Specifications:
- Dimensions: 18.0 x 18.0 x 7.6 mm
- Frequency Range: 1561 MHz to 1602 MHz
- Supported Signals: GPS, GLONASS, BeiDou, Galileo
- Gain: Peak = -5.87 dBi, Zenith = -5.73 dBi (GPS), -5.55 dBi (GLONASS), 4.29 dBi (BeiDou)
- VSWR: Max 2.0 across bands
- Polarization: RHCP
- LNA: Integrated low-noise amplifier
- Environmental Temp: -40°C to +85°C
- Humidity: 40% to 95% RH
- RoHS and RoHS I Compliant
- Cable: 40.1 mm length, gray RG-174
- Connector: IPEX
- Operating and Storage Temp: -40°C to +90°C
- Ground plane included with cable and IPEX connector
- System setup includes antenna, cable, LNA, and connector
- Packaging: 18.0 x 18.0 x 7.6 mm, carton size 390 x 320 x 290 mm, 450 units
Buy the Buy ABRACON GNSS Patch Antenna Part Number APARC1807A-SG3 Online
Purchase the ABRACON GNSS Patch Antenna online today and enhance your location tracking systems. This compact and active antenna supports multiple satellite systems including GPS, GLONASS, and BeiDou. Featuring an integrated LNA, RHCP polarization, and RoHS compliance, it delivers reliable performance in various environmental conditions from -40°C to +85°C. Its small size of 18.0 x 18.0 mm and included ground plane make installation straightforward for IoT, geofencing, surveying, and mapping applications. Order now for efficient, precise GNSS solutions.
Get ABRACON APARC1807A-SG3 today—compact, multiband GNSS antenna with integrated LNA, ideal for precise geolocation and IoT tracking applications.
