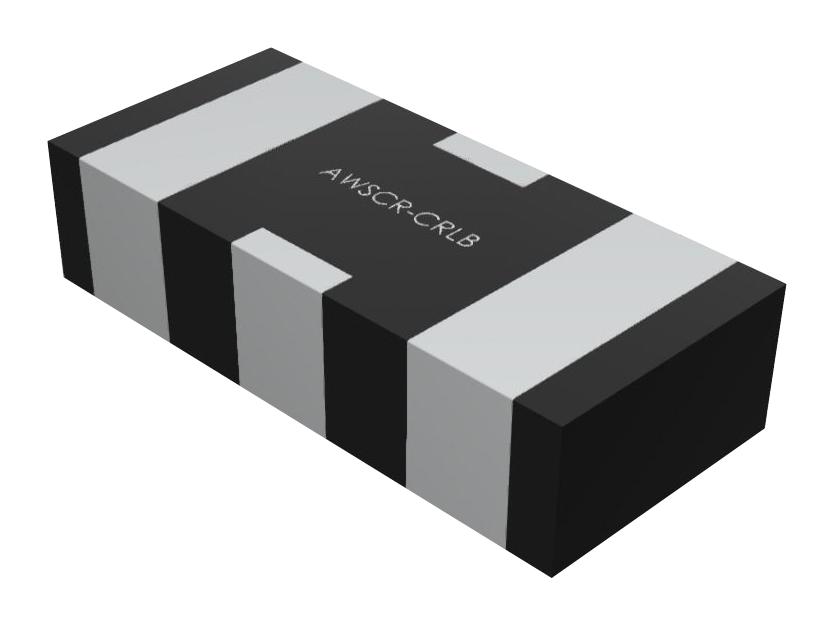

ABRACON AWSCR419CRLBC15T3 Ceramic Resonator
The AWSCR419CRLBC15T3 is an 4.5 x 2.0 x 1.0 mm ceramic resonator designed for oscillator circuits. RoHS compliant and exempt from RoHS I restrictions, it features low resonance impedance and built-in capacitance options suitable for metering, microprocessor, and industrial control applications. Operating within 4.00-12.00 MHz, it offers stable frequency with minimal drift over temperature ranges from -40°C to +125°C. The device has a maximum voltage of 50 V DC and is packaged suitable for reel-based surface-mount assembly, providing reliable performance in harsh environments.
ABRACON AWSCR419CRLBC15T3 Ceramic Resonator Specifications:
- Physical Dimensions: 4.5 x 2.0 x 1.0 mm
- RoHS/RoHS I Compliant, exempt under 7e-I and 7c
- Frequency Range: 4.00 - 12.00 MHz, standard 15 pF capacitance
- Resonant Frequency: 40.15 MHz, tolerance ±0.5 MHz
- Operating Temperature: -40°C to +125°C
- Aging Rate: max 0.2% over 10 years
- Voltage Rating: 50 V DC, withstanding voltage minimum 50 V DC
- Oscillator Drift: max 0.2% over -40°C to +125°C
- Insulation Resistance: unspecified but designed for stable operation
- Package: Surface mount, reel-based packaging for high-volume production
Buy the Abracon Series Oscillator Resonator: AWSCR419CRLBC15T3
Secure your Abracon Series Ceramic Resonator AWSCR419CRLBC15T3 online today. This 4.5 x 2.0 x 1.0 mm surface-mount device offers precise oscillation at 4-12 MHz, low impedance, and robust operation over extended temperature ranges. Ideal for industrial, metering, and microprocessor applications, it provides long-term stability with minimal drift and complies with RoHS standards. Purchase now to enhance your project’s reliability with this proven, high-performance ceramic resonator, delivered conveniently in reel packaging for seamless integration and mass assembly.
Order your Abracon Series Oscillator Resonator AWSCR419CRLBC15T3 today and ensure reliable frequency stability in your electronic circuits.
Frequently Asked Questions
Where can I buy ABRACON AWSCR419CRLBC15T3?
You can click on the BUY or RFQ button to purchase AWSCR419CRLBC15T3 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AWSCR419CRLBC15T3?
You can download the AWSCR419CRLBC15T3 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AWSCR419CRLBC15T3?
ABRACON
