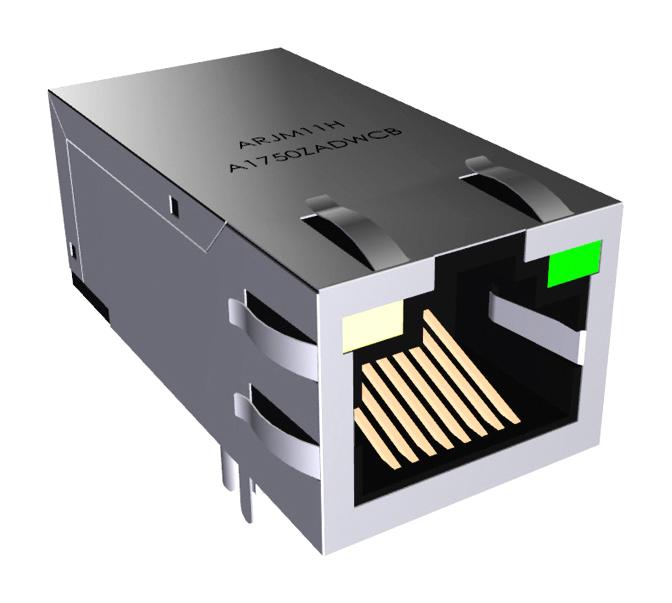

ABRACON ARJM11HA1750ZADWCB Ethernet Magnetics Module
The ARJM11H-A1750ZADWCB is a high-performance single port RJ45 magnetics module supporting 10 Gbps Ethernet speeds. Designed for industrial applications, it features robust EMI suppression and noise rejection. Its compact dimensions of 32.6 x 16.6 x 13.5 mm and RoHS compliance ensure reliable integration into networking devices like switches, routers, IP cameras, and industrial computers. The module's durable materials, including nylon and PBT with UL94V-0 flammability rating, withstand temperatures from -40°C to +85°C and endure over 750 soldering cycles, making it suitable for demanding environments.
ABRACON ARJM11HA1750ZADWCB Ethernet Magnetics Module Specifications:
- Dimensions: 32.6 x 16.6 x 13.5 mm
- RoHS/RoHS II Compliant
- Material (Housing): Nylon 66, Black
- Material (Plug into housing): PBT + 30% GF, UL94V-0
- Flammability: UL94V-0
- Contact Material: Brass H65Y with Nickel plating
- Gold Plating Options: 50 micro-inch, available upon contact
- Electrical: Supports 10 Gbps speeds, 1CT:1CT turn ratio, leakage inductance 22, return loss 17-18.27 log(f/100), insertion loss, crosstalk 20-30
- Operating Temperature Range: -40°C to +85°C
- Soldering Profile: Peak temperature 250°C, max 5 seconds
- Certifications: RoHS, MSL=1
- Packaging: 840 pieces per carton, dimensions 310 x 240 x 150 mm
Buy the Abracon ARJM11H-A1750ZADWCB – Reliable Ethernet Magnetics for Industrial Applications
Enhance your industrial networking solutions with the ARJM11H-A1750ZADWCB Ethernet magnetics module from Abracon. Supporting 10 Gbps speeds, it offers reliable EMI suppression and noise rejection. Its compact size of 32.6 x 16.6 x 13.5 mm, RoHS compliance, and robust materials allow seamless integration into switches, routers, industrial computers, and surveillance systems. Designed for extreme temperatures from -40°C to +85°C and capable of enduring over 750 soldering cycles, this module ensures durable, high-performance connectivity in demanding environments, making it the ideal choice for critical industrial applications.
Buy Abracon ARJM11H-A1750ZADWCB now and experience unmatched reliability with high-speed Ethernet performance suitable for industrial networking devices.
Frequently Asked Questions
Where can I buy ABRACON ARJM11HA1750ZADWCB?
You can click on the BUY or RFQ button to purchase ARJM11HA1750ZADWCB from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ARJM11HA1750ZADWCB?
You can download the ARJM11HA1750ZADWCB datasheet or visit the ABRACON website for support.
Who is the manufacturer of ARJM11HA1750ZADWCB?
ABRACON
