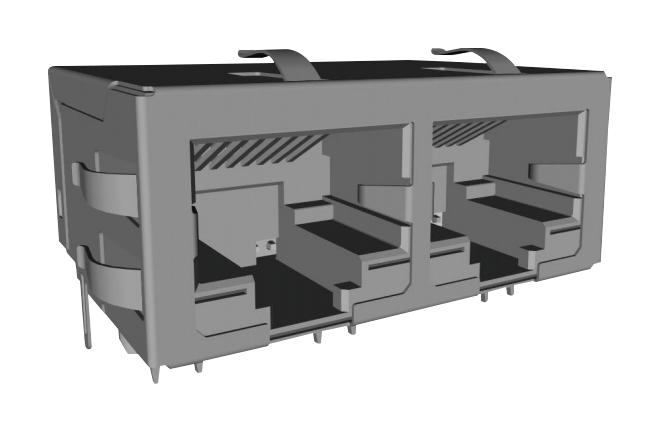

ABRACON ARJM12A1009NNEW2 Ethernet Connector
The RJ45 1x2 Multiport connector supports 100/1000/2.5G/5G Base-T Ethernet standards, offering reliable high-performance connectivity for industrial computers, servers, and VoIP applications. It features RoHS compliance, UL certification, and a compact design measuring 31.2 x 21.3 x 13.6 mm. The connector includes options with LED indicators, EMI fingers, and gold plating for enhanced durability. Suitable for use with CAT6 UTP cabling, it operates across a wide temperature range from -40°C to 85°C. With a robust construction, it ensures stable data transmission in demanding environments.
ABRACON ARJM12A1009NNEW2 Ethernet Connector Specifications:
- Dimensions: 31.2 x 21.3 x 13.6 mm
- Material: Housing PBT UL94V-0, Contact Phosphor Bronze, Metal Shell Brass
- Plating: Nickel and Gold (6u") on contacts, Nickel on shell
- Certification: UL E503350, RoHS/RoHS II Compliant
- Electrical: Supports 100Base-T, 1000Base-T, 2.5GBase-T, 5GBase-T Ethernet
- Operating Temperature: -40°C to 85°C (extended options available)
- MSL: 1
- Physical: Compact, with LED indicator options, EMI fingers
- Cable Compatibility: Suitable for CAT6 UTP cabling
- Color Options: Green, Yellow with diffused epoxy lens LEDs
- Wave Soldering Profile: 280°C with temperature decrease of 10°C/sec
- Packaging: 350 pieces per box, dimensions 340 x 215 x 275 mm
- Weight: Approximately 10.82 g per piece
Buy the Acme ARJM12A1009NNEW2 – Reliable Ethernet Connector for Industrial Applications
Enhance your industrial networking setup with the high-performance Ethernet connector supporting 100/1000/2.5G/5G Base-T standards. It features RoHS compliance, UL certification, and a compact design measuring just 31.2 x 21.3 x 13.6 mm, making it ideal for demanding environments. With options for LED indicators and gold plating, this connector offers reliable data transmission and durability. Easily integrate with CAT6 UTP cabling for robust, high-speed network connections across various industrial and server applications. Purchase online today to ensure dependable performance.
Get Acme ARJM12A1009NNEW2 today—built for precision and long-lasting durability in network connectivity solutions.
Frequently Asked Questions
Where can I buy ABRACON ARJM12A1009NNEW2?
You can click on the BUY or RFQ button to purchase ARJM12A1009NNEW2 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ARJM12A1009NNEW2?
You can download the ARJM12A1009NNEW2 datasheet or visit the ABRACON website for support.
Who is the manufacturer of ARJM12A1009NNEW2?
ABRACON
