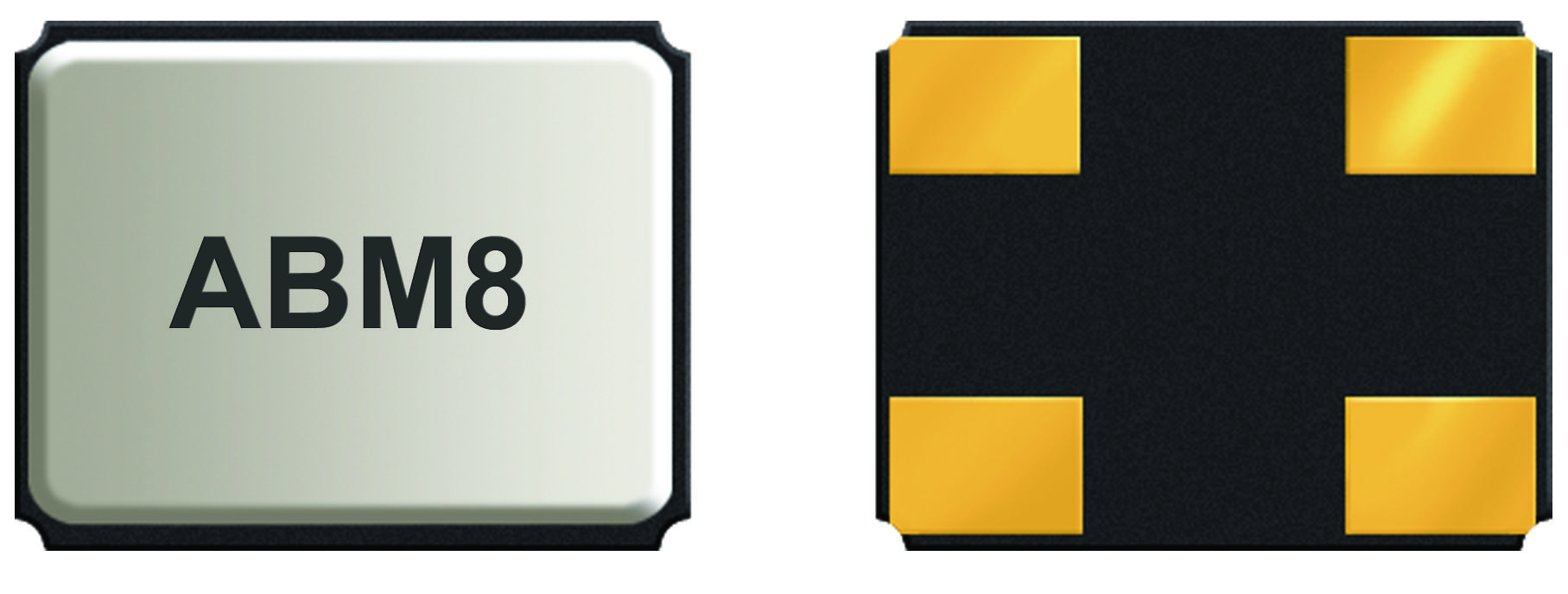

ABRACON ABM838400MHZ10B1UT Ultra Miniature Crystal
This ultra-miniature ceramic SMD crystal is hermetically sealed, RoHS compliant, and suitable for high-density and thin equipment applications. It operates at fundamental frequencies from 10 MHz to 66.6666 MHz and third overtone frequencies up to 125 MHz. Featuring a compact size of 3.2x2.5x0.8mm, the crystal offers tight frequency tolerance, stability over temperature, and low equivalent series resistance. It is ideal for modems, communication devices, and test equipment, ensuring high reliability, moisture resistance, and rohs compliance for precise clock and timing functionalities.
ABRACON ABM838400MHZ10B1UT Ultra Miniature Crystal Specifications:
- Size: 3.2x2.5x0.8mm
- Frequency Range: 10.000 to 125.000 MHz
- Operation Mode: Fundamental 10MHz - 54MHz, 3rd Overtone 64MHz - 125MHz
- Operating Temperature: -10°C to +60°C, Option B/C/D/E temperature ranges available
- Frequency Tolerance: ±50 ppm @+25°C
- Frequency Stability: ±50 ppm over temperature
- Equivalent Series Resistance: 30-80 ohms depending on frequency
- Shunt Capacitance: 7.0 pF
- Load Capacitance: 18.0 pF
- Aging: 3 ppm first year
- Insulation Resistance: 500 MΩ at 100 Vdc
- Moisture Sensitivity Level: Sensitive, hermetically sealed
- RoHS Compliance: Yes
- Material: Ceramic
- Reflow Compatibility: Suitable for RoHS reflow, high reliability
- Package: Surface-mount device (SMD)
- Application: Timing, clock circuits, communication, modems, test equipment
Buy the Abtac Series Ultra Miniature Crystal: ABM838400MHZ10B1UT
Discover the high-precision ultra miniature ceramic SMD crystal for timing and clock applications. With sizes of 3.2x2.5x0.8mm, it offers frequency ranges from 10 MHz to 125 MHz, ideal for high-density communications and test equipment. Its hermetically sealed package ensures high reliability, moisture resistance, and stable performance over temperature. Designed for reflow soldering, it meets RoHS standards, making it the perfect solution for demanding electronic devices requiring accurate and stable frequency control, with easy online purchase options.
Get Abtac ABM838400MHZ10B1UT today—built for precision and long-lasting durability with hermetic sealing and RoHS compliance.
Frequently Asked Questions
Where can I buy ABRACON ABM838400MHZ10B1UT?
You can click on the BUY or RFQ button to purchase ABM838400MHZ10B1UT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM838400MHZ10B1UT?
You can download the ABM838400MHZ10B1UT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM838400MHZ10B1UT?
ABRACON
