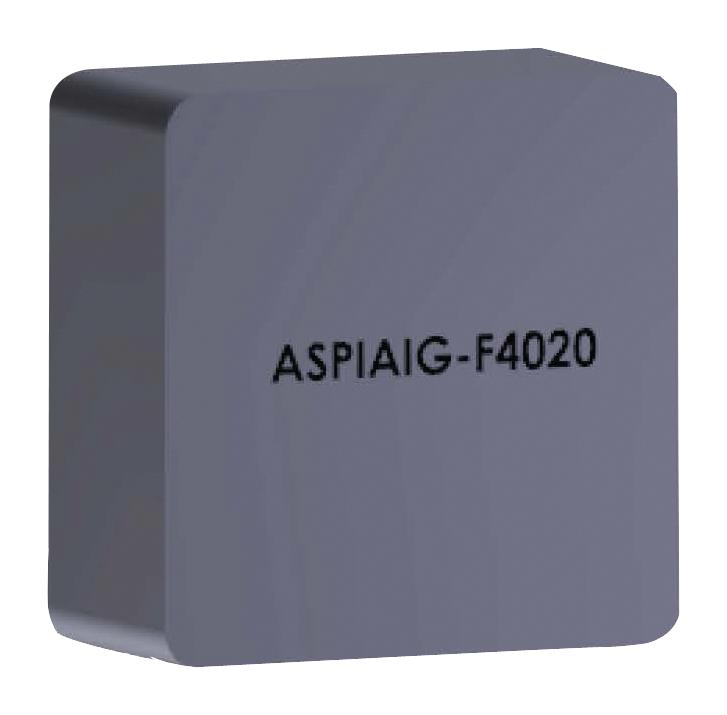

ABRACON ASPIAIGF50303R3MT Power Inductor
The high current shielded SMD power inductor series offers robust design supporting up to 36A current with low DCR of only 1.75 mΩ. Suitable for DC/DC converters, FPGA, server VRMs, and automotive applications due to its RoHS compliance, soft saturation, and low profile footprint. The series features molded construction, excellent EMI reduction, and temperature range of -40°C to +125°C, making it ideal for high power density systems, motor control, solar inverters, and automotive electronics. Dimensions vary across models, supporting versatile circuit integration and efficient power management.
ABRACON ASPIAIGF50303R3MT Power Inductor Specifications:
- Support Current: Up to 36A
- DCR: 1.75 mΩ
- RoHS/RoHS II Compliant
- Operating Temperature: -40°C to +125°C
- Storage Conditions: -10°C to +40°C, Max 60% R.H.
- Dimensions vary by model, typically around 4.14 to 16.4 mm in size
- Shielded construction reduces EMI
- Soft saturation and low profile for compact design
- Supports Pb-free reflow soldering at peak temperature 245°C for 5 seconds maximum
- Series includes multiple inductance options from 0.15 μH to 8.2 μH
- Application includes high current power supplies, motor control, solar inverter systems, and FPGA buck converters
- Reel packaging supports automated SMT assembly
Buy the ABRACON Series ASPIAIG Power Inductor: ASPIAIGF50303R3
Order the ABRACON Series high current shielded power inductor ASPIAIGF50303R3 now online. Perfect for high power density systems, motor control, solar inverters, and automotive electronics. Supports up to 36A current with low DCR, RoHS compliance, and RoHS II standards. Its molded shielded construction minimizes EMI, ensuring reliable performance in demanding environments. Designed for SMT reflow soldering, it guarantees high efficiency and durability, making it an essential component for DC/DC converters, FPGA, VRMs, and other high-power applications. Secure your supply chain by purchasing online today.
Get ABRACON high current shielded power inductor ASPIAIGF50303R3 today—built for precision and long-lasting durability in demanding power applications.
Frequently Asked Questions
Where can I buy ABRACON ASPIAIGF50303R3MT?
You can click on the BUY or RFQ button to purchase ASPIAIGF50303R3MT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ASPIAIGF50303R3MT?
You can download the ASPIAIGF50303R3MT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ASPIAIGF50303R3MT?
ABRACON
