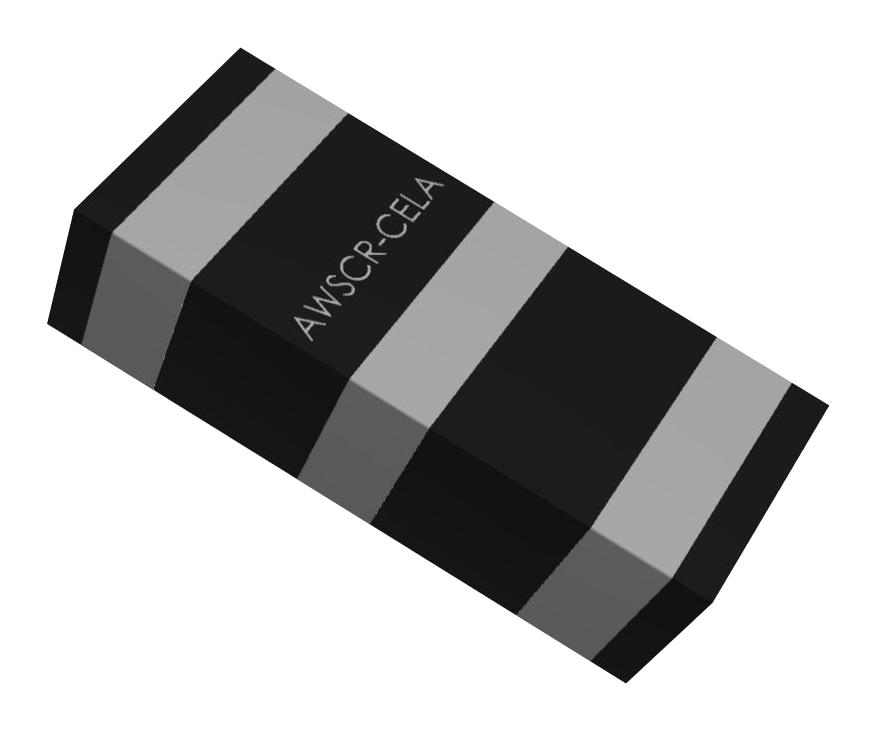

ABRACON AWSCR1000CELAC10T3 Miniature Ceramic Resonator
The ABRACON AWSCR-10.00CELA-C10-T3 is a miniature ceramic resonator suitable for a wide range of applications including metering systems, remote control devices, microprocessors, and industrial control systems. Its compact size, low resonance impedance, and wide operating temperature range make it a versatile choice for space-constrained designs. The resonator is RoHS compliant and features a built-in capacitance option for optimized performance. It is designed for reliable operation and is not moisture sensitive (MSL = 1).
ABRACON AWSCR1000CELAC10T3 Miniature Ceramic Resonator Specifications:
- Frequency Range: 8.00 - 12.00 MHz
- Resonant Impedance (Ro): 40 Ω (8.00 MHz - 12.00 MHz)
- Standard Built-in Capacitance (C1=C2): 15 pF (8.00 MHz - 12.00 MHz, Tol 1pF ± 20%)
- Frequency Tolerance: -0.5 to +0.5 %
- Temperature Coefficient of Oscillation: -0.2 to +0.2 %
- Withstanding Voltage: 50 V DC (1 min max)
- Voltage Rating: 6 V DC / 15 Vp-p AC
- Insulation Resistance (Ri): 500 MΩ (10V, 1 min)
- Operation Temperature: -40 to +85 ºC
- Storage Temperature: -55 to +85 ºC
- Aging Rate (Fosc): -0.2 to +0.2 % (for 10 years, from initial value)
- Size: 3.2 x 1.3 x 1.0 mm
- Packaging: 3000 pcs/reel
Buy the AWSCR-10.00CELA-C10-T3 ABRACON Miniature Ceramic Resonator | myMectronic
Securely purchase the ABRACON AWSCR-10.00CELA-C10-T3 and ensure your project's success with our reliable online ordering process.
Buy Now
Frequently Asked Questions
Where can I buy ABRACON AWSCR1000CELAC10T3?
You can click on the BUY or RFQ button to purchase AWSCR1000CELAC10T3 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AWSCR1000CELAC10T3?
You can download the AWSCR1000CELAC10T3 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AWSCR1000CELAC10T3?
ABRACON
