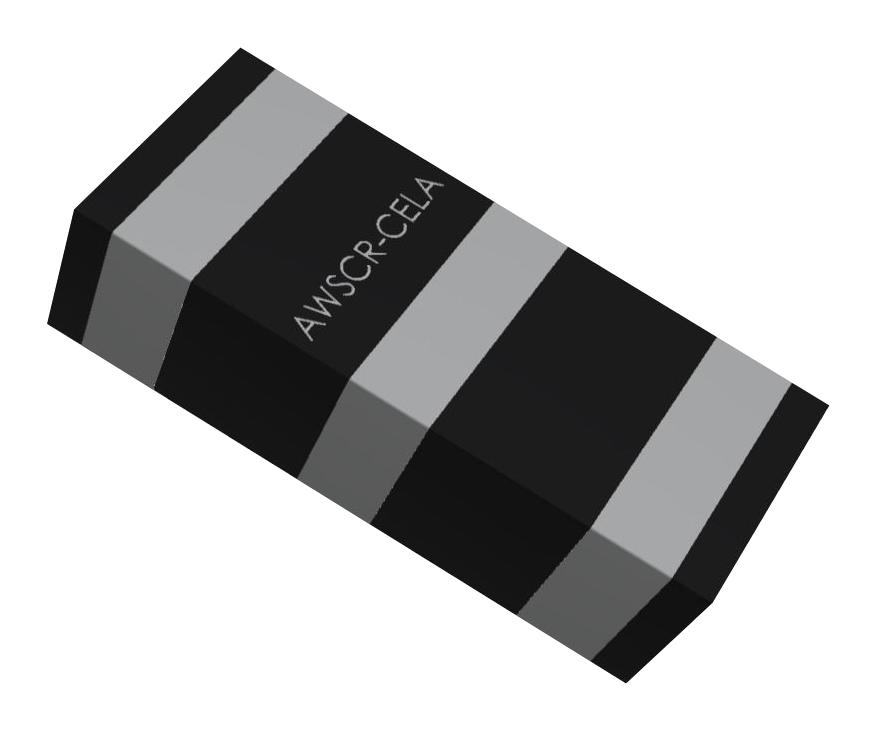

ABRACON AWSCR800CELAC10T3 Ceramic Resonator
The AWSCR800CELAC10T3 is a miniature ceramic resonator designed for high-frequency applications in industrial and electronic control systems. It features a compact 3.2x13x10mm footprint, RoHS compliance, and operates within a temperature range of -40°C to +85°C. The resonator offers a frequency range of 8.00 MHz to 12.00 MHz with standard 15pF capacitance, and provides excellent resonance impedance and stability. Suitable for metering, remote control, and microprocessor applications, it ensures reliable performance in demanding environments.
ABRACON AWSCR800CELAC10T3 Ceramic Resonator Specifications:
- Dimensions: 3.2x13x10mm
- Frequency Range: 8.00 MHz - 12.00 MHz
- Standard Capacitance: 15 pF (±20%)
- Tolerance: ±0.5%
- Temperature Range: -40°C to +85°C
- Resonant Frequency Max: 12.00 MHz
- Withstanding Voltage: 50 V DC, 1 min
- Voltage Rating: 6 V to 15 V DC
- Insulation Resistance: 100 MΩ at 100 V DC
- RoHS and RoHS I compliant
- Pb in ceramic, exemption (7e-I)
- MSL: 1
- Reel Packaging: 3000 pcs/reel
- Recommended Reflow Profile: 10s at max 200°C
- Suitable for applications in metering, remote control, microprocessors, industrial control, and electronic appliances.
Buy the Abracon AWSCR800CELAC10T3 – Reliable Ceramic Resonator for Industrial Applications
Enhance your electronic designs with the Abracon Ceramic Resonator, model AWSCR800CELAC10T3. This compact, RoHS compliant resonator operates efficiently within a -40°C to +85°C temperature range, providing stable 8–12 MHz frequency with standard 15pF capacitance. Perfect for metering, microprocessor, and industrial control applications, it offers excellent resonance impedance and stability. Purchase online today to ensure your projects meet high standards for reliability and performance, backed by expert support and fast shipping.
Buy Abracon AWSCR800CELAC10T3 now and experience unmatched reliability and performance in your electronic control systems.
Frequently Asked Questions
Where can I buy ABRACON AWSCR800CELAC10T3?
You can click on the BUY or RFQ button to purchase AWSCR800CELAC10T3 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AWSCR800CELAC10T3?
You can download the AWSCR800CELAC10T3 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AWSCR800CELAC10T3?
ABRACON
