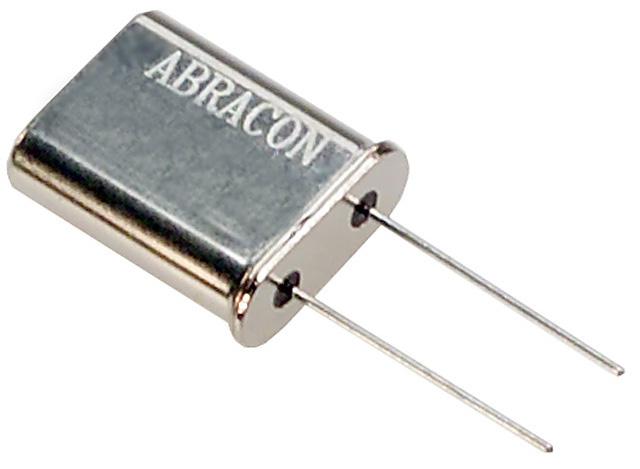

ABRACON AB6000MHZB2 Crystal Oscillator
This high-precision crystal oscillator supports fundamental frequencies from 1.8432MHz to 24.00MHz, overtones up to 160.00MHz, and features low aging rate of 45 ppm in the first year. It has low ESR, stable frequency over temperature, and a small form factor of 11.5x5.0x13.46mm. Ideal for use in timing circuits, communication devices, and synchronization applications where accuracy and stability are critical, this crystal ensures reliable performance across a wide temperature range with RoHS compliance and various frequency stability options.
ABRACON AB6000MHZB2 Crystal Oscillator Specifications:
- Frequency Range: 1.8432MHz - 24.00MHz (fundamental), 24.00MHz - 66.00MHz (3rd overtone), 66.01MHz - 122.00MHz (5th overtone), 122.01MHz - 160.00MHz (7th overtone)
- Operating Temperature: 0°C to +70°C (see options for wider range)
- Storage Temperature: -55°C to +125°C
- Frequency Tolerance: ±50 ppm at +25°C (see options for ±50 ppm)
- Frequency Stability: over ±100 ppm (see options)
- Equivalent Series Resistance (ESR): varies with frequency and model, typically low for high stability
- Shunt Capacitance: 7 pF
- Load Capacitance: 18 pF (see options)
- Drive Level: 100 to 1000 µW
- Aging: 45 ppm in the first year
- Insulation Resistance: 500 MΩ at 100 VDC
- Dimensions: 11.5 x 5.0 x 13.46 mm
- RoHS/RoHS II Compliant
Buy the Buy Abracon Crystal Oscillator Part Number AB6000MHZB2 Online
Purchase the Abracon crystal oscillator AB6000MHZB2 online today to enhance your timing, synchronization, and communication projects. This reliable, high-frequency component offers excellent stability, low aging, and versatile options suitable for a wide temperature range. Its small size and RoHS compliance make it ideal for compact electronic devices and industrial applications. Whether you need fundamental or overtone operation, ordering online guarantees fast delivery and quality assurance to keep your projects running accurately and efficiently.
Order your Abracon crystal oscillator AB6000MHZB2 today and ensure your timing circuits and synchronization systems operate with high precision and stability.
Frequently Asked Questions
Where can I buy ABRACON AB6000MHZB2?
You can click on the BUY or RFQ button to purchase AB6000MHZB2 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AB6000MHZB2?
You can download the AB6000MHZB2 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AB6000MHZB2?
ABRACON
