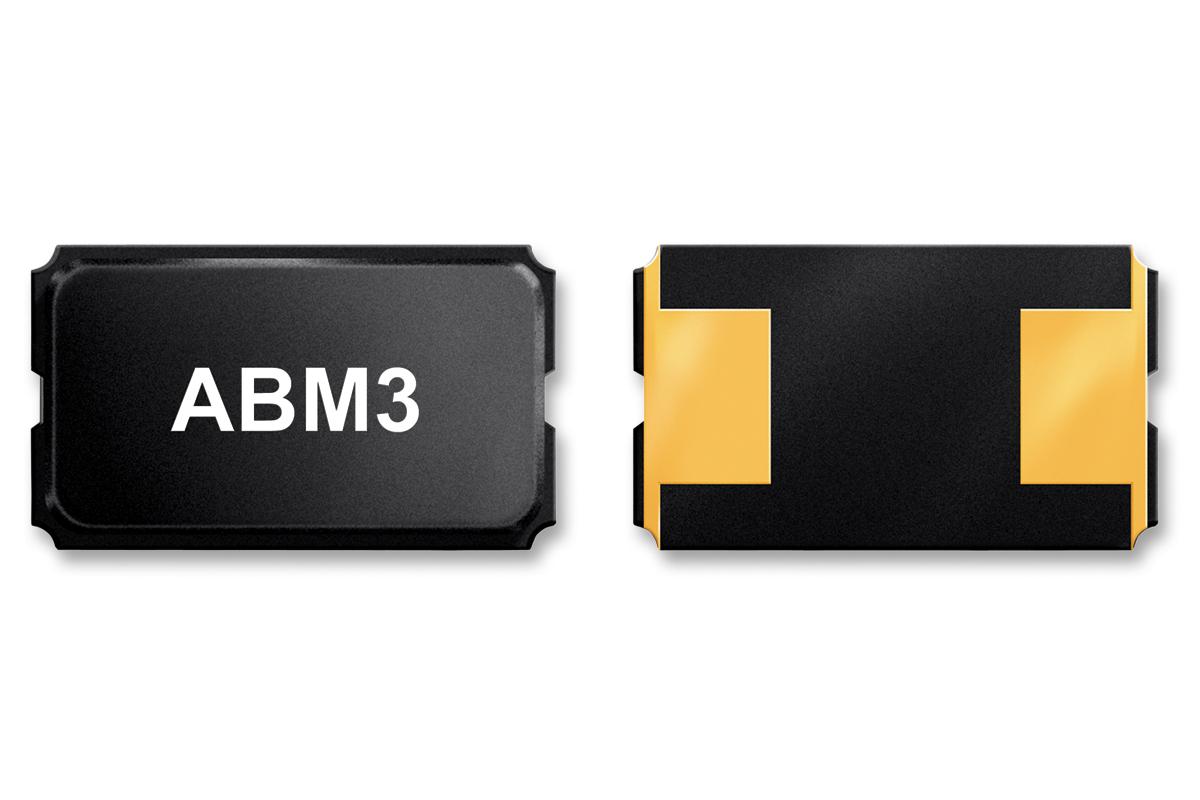

ABRACON ABM325000MHZD2YT Miniature Ceramic SMD Crystal
The ABRACON ABM3-25.000MHZ-D2Y-T is a miniature ceramic SMD crystal oscillator designed for a variety of applications. Its hermetically glass-sealed ceramic package assures high precision and reliability. Suitable for RoHS reflow profiles, this crystal offers tight stability and is commonly used in cellular telephones, pagers, communication and test equipment, and PCMCIA and wireless applications. It is a smaller package alternative for the ABM7 series and is ideal for applications requiring a compact and reliable crystal oscillator.
ABRACON ABM325000MHZD2YT Miniature Ceramic SMD Crystal Specifications:
- Frequency Range: 8.000 - 54.000 MHz (Fundamental)
- Frequency Range (3rd Overtone): 54.100 - 80.000 MHz
- Operation Mode: Fundamental or 3rd Overtone
- Operating Temperature: -10 to +60 °C
- Storage Temperature: -40 to +90 °C
- Frequency Tolerance: -50 to +50 ppm
- Frequency Stability: -50 to +50 ppm over operating temperature
- Equivalent Series Resistance (ESR): 60 to 10,000 ohms (Fundamental)
- Shunt Capacitance (C0): 7 pF
- Drive Level: 10 to 100 µW
- Aging: -5 to +5 ppm per year @25°C ±3°C
- Insulation Resistance: 500 MΩ @100Vdc ± 15V
- Moisture Sensitivity Level: N/A (Hermetically Sealed)
- Package Type: Ceramic SMD
- Dimensions: 5.0 x 3.2 x 1.3 mm
Buy the ABM3-25.000MHZ-D2Y-T ABRACON Miniature Ceramic SMD Crystal | myMectronic
Securely purchase the ABRACON ABM3-25.000MHZ-D2Y-T online for all your electronic component needs.
Buy Now
Frequently Asked Questions
Where can I buy ABRACON ABM325000MHZD2YT?
You can click on the BUY or RFQ button to purchase ABM325000MHZD2YT from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part ABM325000MHZD2YT?
You can download the ABM325000MHZD2YT datasheet or visit the ABRACON website for support.
Who is the manufacturer of ABM325000MHZD2YT?
ABRACON
