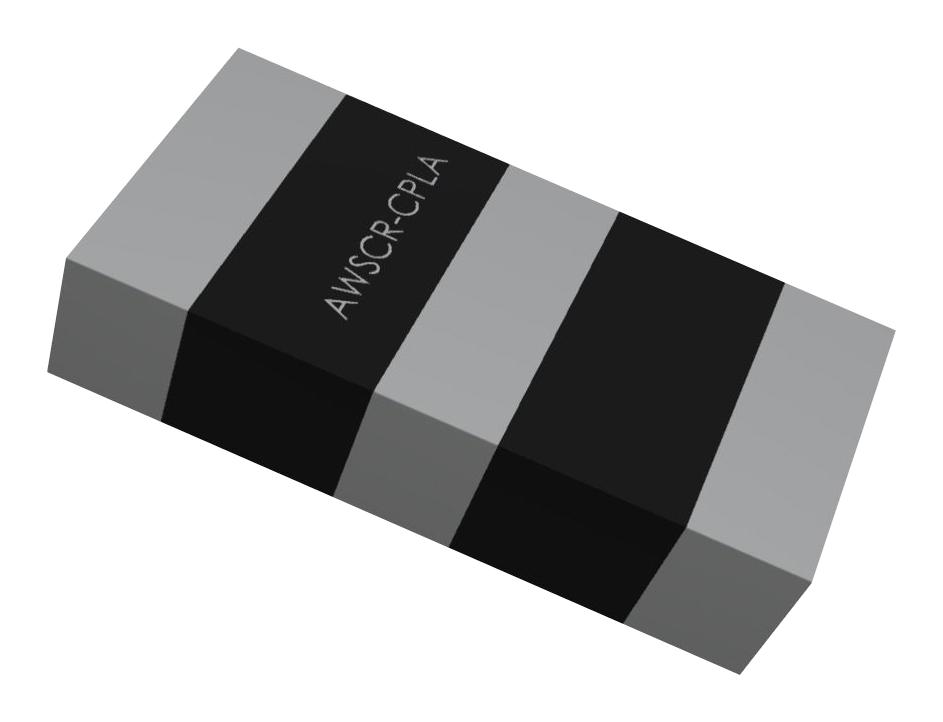

ABRACON AWSCR737CPLAC30T4 Ceramic Resonator
The miniature ceramic resonator AWSCR737CPLAC30T4 provides stable oscillation at frequencies ranging from 1.84 MHz to 12.00 MHz, featuring a compact size of 6.0 x 3.0 x 1.8mm. It is RoHS compliant, lead-free, and not moisture sensitive with an MSL of 1. Designed for reliable performance in metering, remote control, microprocessor, industrial control, and electronic appliance applications, this resonator offers wide operating temperature ranges from -40°C to 85°C. Its low resonance impedance and built-in capacitance options make it an excellent choice for modern electronic circuits requiring precise timing solutions.
ABRACON AWSCR737CPLAC30T4 Ceramic Resonator Specifications:
- Dimensions: 6.0 x 3.0 x 1.8mm
- Frequency Range: 1.84 MHz to 12.00 MHz
- Frequency Tolerance: ±0.5%
- Frequency Stability: -0.2% within -40°C to 85°C
- Resonant Impedance (Ro): 100Ω to 50Ω depending on frequency
- Built-in Capacitance: 10, 15, 22, 33, 39, 47 pF
- Temperature Range: -40°C to +85°C
- RoHS Compliance: Yes
- Moisture Sensitivity Level: MSL 1
- Lead-Free: Yes, Pb in ceramic (exemption 7e-I)
- Operating Temperature: -40°C to +85°C
- Maximum Storage Temperature: +85°C
- No moisture sensitivity, not hermetically sealed
- RoHS and REACH compliant
- Packaging: 4000 pieces per reel
- Reflow Profile: Peak temperature 260°C for 10 seconds maximum
Buy the Abracon Series Resonator: AWSCR737CPLAC30T4
Discover the reliable ceramic resonator AWSCR737CPLAC30T4, ideal for precise oscillation in electronic devices. Its compact size of 6.0 x 3.0 x 1.8mm makes it suitable for space-constrained applications like microprocessors, industrial control, and metering systems. RoHS compliant and lead-free, it offers stable frequency ranges from 1.84 MHz to 12.00 MHz, with low resonance impedance and built-in capacitance options. Designed for durability in wide temperature conditions, order online today for efficient and high-performance circuit timing solutions.
Get Abracon AWSCR737CPLAC30T4 today—compact ceramic resonator built for precision and long-lasting durability.
Frequently Asked Questions
Where can I buy ABRACON AWSCR737CPLAC30T4?
You can click on the BUY or RFQ button to purchase AWSCR737CPLAC30T4 from an authorized ABRACON distributor.
How do I troubleshoot issues or seek technical support for part AWSCR737CPLAC30T4?
You can download the AWSCR737CPLAC30T4 datasheet or visit the ABRACON website for support.
Who is the manufacturer of AWSCR737CPLAC30T4?
ABRACON
