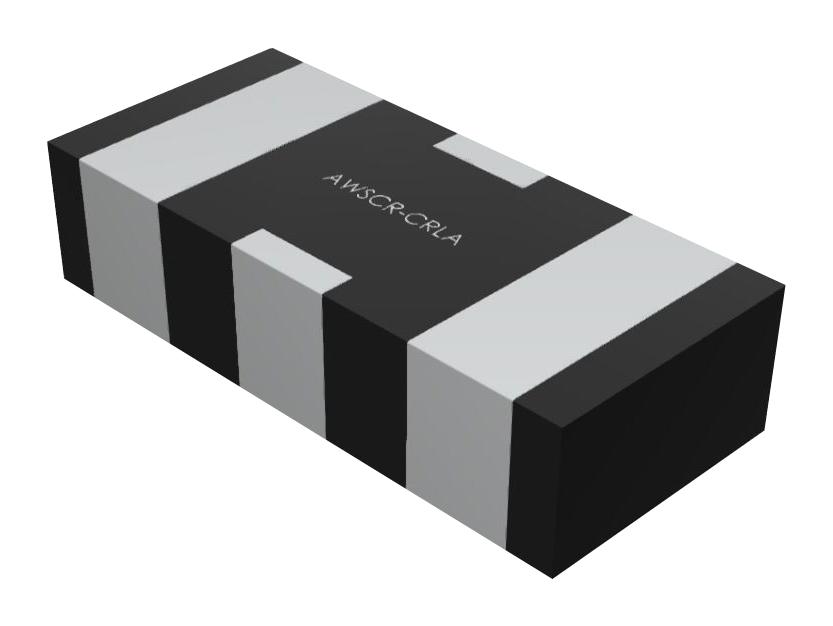

ABRACON AWSCR491CRLAC15T3 Ceramic Resonator
The AWSCR491CRLAC15T3 is a compact ceramic resonator designed for precise frequency control in electronic circuits. Featuring a small footprint of 4.5 x 2.0 x 1.0 mm, this RoHS-compliant component operates within a wide temperature range of -40°C to +85°C and offers a standard capacitance of 15 pF with options up to 47 pF. Its low resonance impedance, industry-standard footprint, built-in capacitance options, and robust construction make it suitable for metering systems, remote control, microprocessors, industrial control, and electric appliances, ensuring high reliability in demanding environments.
ABRACON AWSCR491CRLAC15T3 Ceramic Resonator Specifications:
- Dimensions: 4.5 x 2.0 x 1.0 mm
- RoHS/RoHS I Compliant
- Pb in ceramic, exemption 7e-I
- Not moisture sensitive (MSL=1)
- Operating Temperature: -40°C to +85°C
- Standard Capacitance: 15 pF
- Available Capacitance Options: 10, 22, 30, 33, 39, 47 pF
- Oscillating Frequency Range: 4.00 — 12.00 MHz
- Frequency Tolerance: ±0.2%
- Resonant Impedance: ≤40 Ω
- Withstanding Voltage: 50 V DC
- Insulation Resistance: ≥50 MΩ
- Aging Rate: Max 0.2% over 10 years
- Vibration Resistance: Standard durability tested
- Certifications: UL Listed, RoHS compliant
Buy the Abracon Series Oscillator: AWSCR491CRLAC15T3
Secure your electronic projects with the Abracon ceramic resonator. Measuring 4.5 x 2.0 x 1.0 mm, it offers a wide frequency range of 4.00 to 12.00 MHz, with standard 15 pF capacitance and options up to 47 pF. RoHS compliant and suitable for industrial, remote control, and microprocessor applications, this high-quality component ensures stability across temperatures from -40°C to +85°C, providing long-term reliability for your critical systems. Order online today for fast delivery and seamless integration.
Buy Abracon AWSCR491CRLAC15T3 miniature ceramic resonator now and experience unmatched reliability and performance for your frequency control applications.
